Industrial Process Transmitters
Engineered to convert critical process variables—including temperature, pressure, flow, and level—into standardized electrical signals for seamless control room automation and SCADA integration.
Widely Used By
Process Engineers SCADA Operators Petrochemical Plants Water Treatment Power Generation
Key Purposes
Real-Time Monitoring DCS/PLC Integration 4-20mA Loop Control Hazardous Area Safety Remote Telemetry
Single Tap to Scroll • Double Tap to Open Catalog
Temperature Transmitters
- Converts RTD or Thermocouple signals into linear 4-20mA output.
- Isolates the signal to prevent ground loops and electromagnetic interference.
- Available in head-mount, DIN-rail, and field-mount configurations.
- High accuracy required for critical reactor and boiler monitoring.
Access Catalog

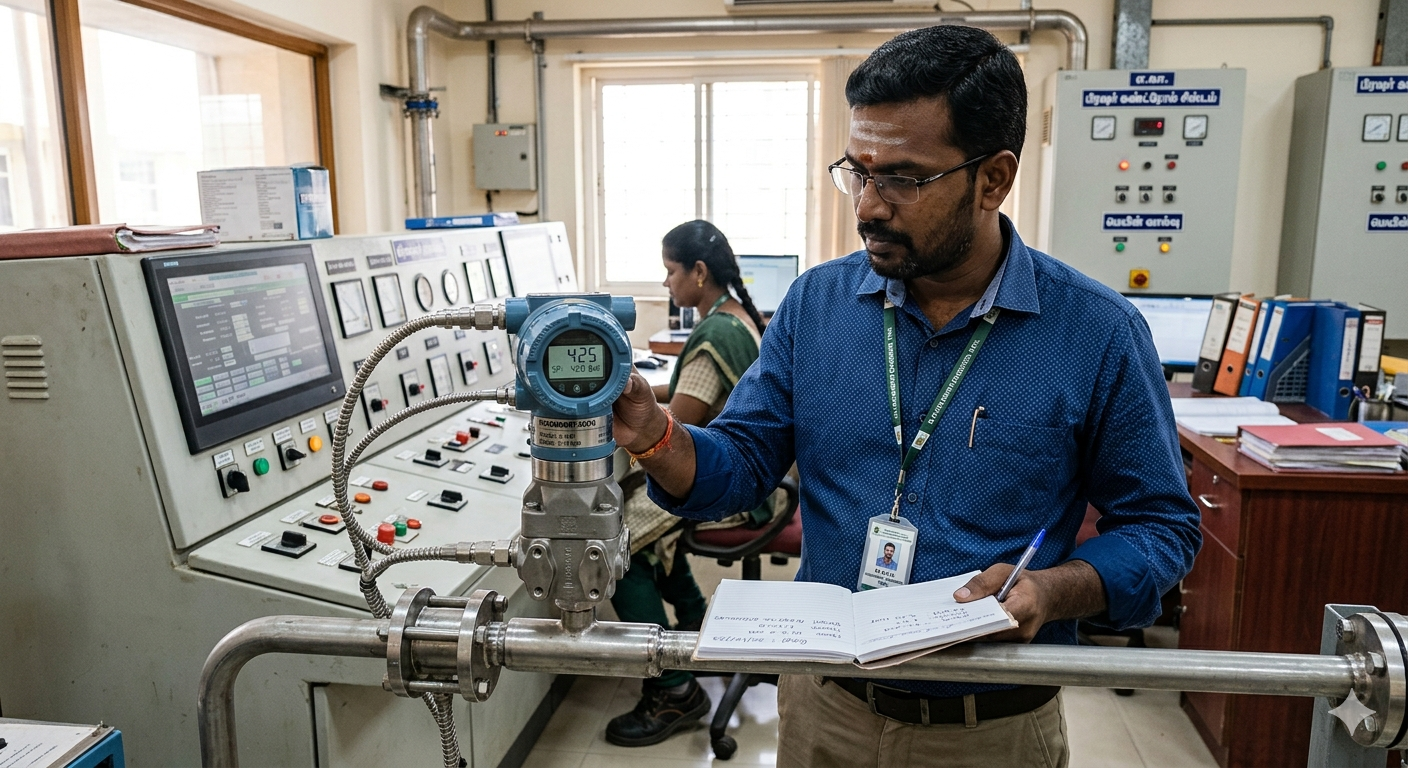

Pressure Transmitters
- Measures absolute, gauge, or vacuum pressure in liquid and gas lines.
- Utilizes advanced piezoresistive or capacitive sensor technology.
- Essential for maintaining safe pipeline and compressor operations.
- Features extreme overpressure protection and high turndown ratios.
Access Catalog
.png)

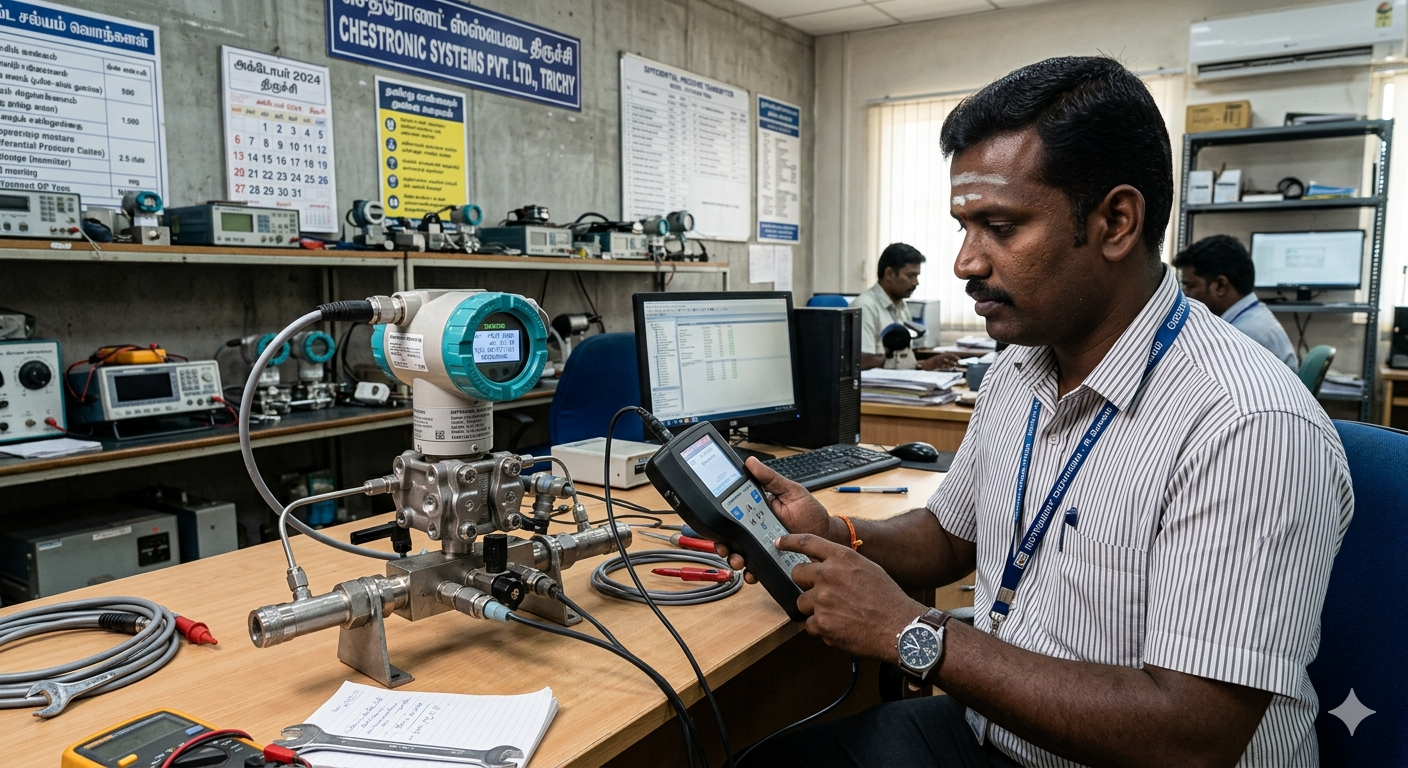

Differential Pressure (DP)
- Measures the pressure drop across orifice plates or filtration systems.
- Widely used to infer flow rates or monitor tank liquid levels.
- Highly sensitive to minute pressure changes across two specific points.
- Features remote seal options for aggressive or high-temperature media.
Access Catalog

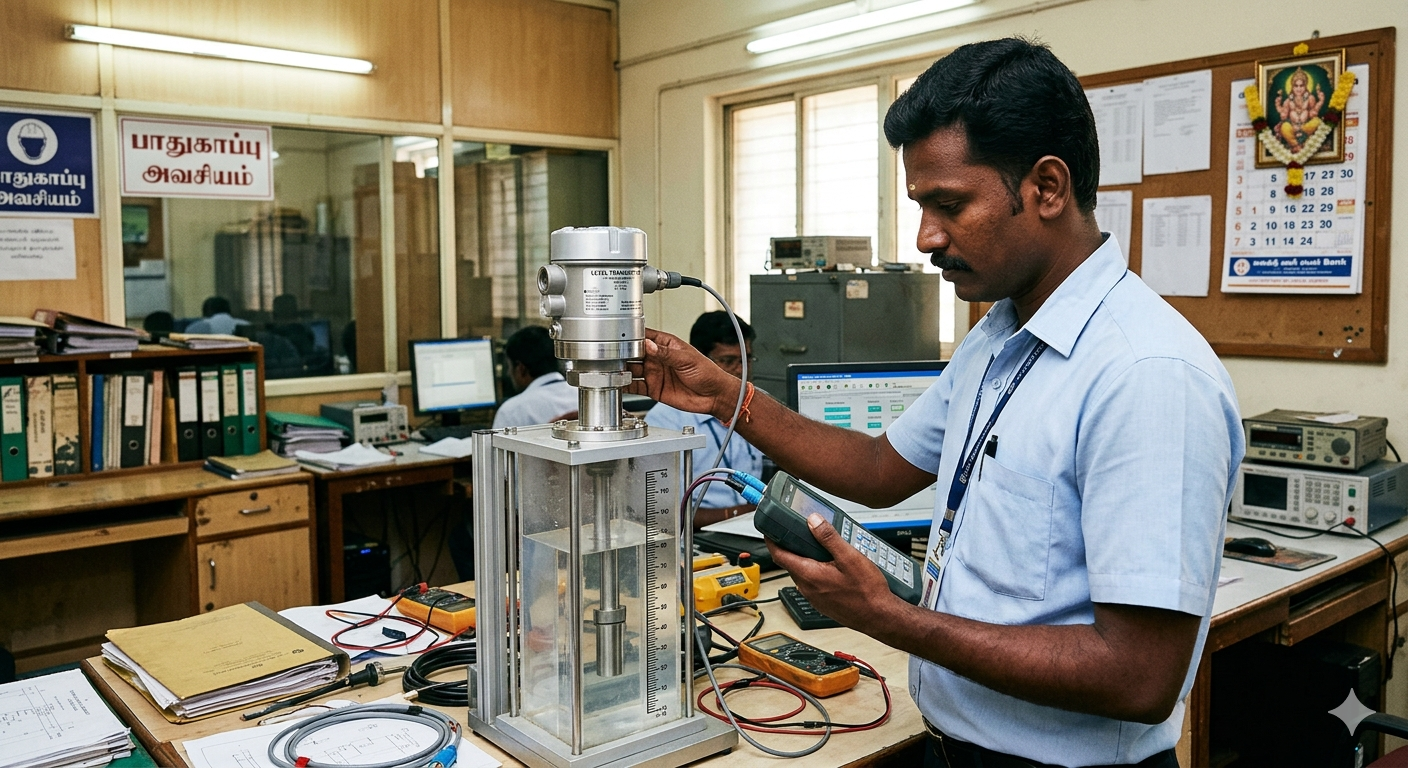

Level Transmitters
- Provides continuous level monitoring for tanks, silos, and reservoirs.
- Employs ultrasonic, guided wave radar, or hydrostatic submersible tech.
- Vital for inventory management and preventing dry-pump runs.
- Non-contact radar options available for corrosive or viscous liquids.
Access Catalog

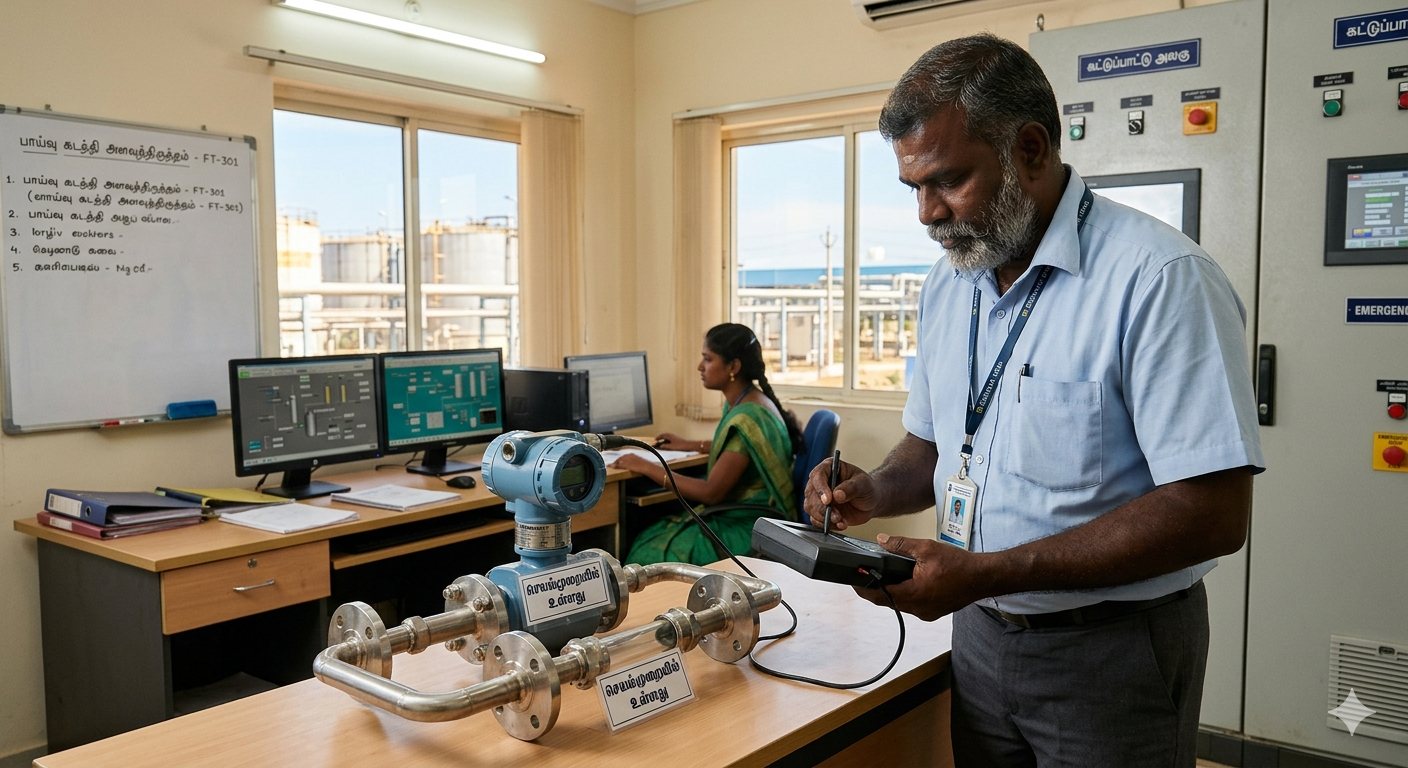

Flow Transmitters
- Pairs with flow elements (magnetic, Coriolis, turbine) for accurate data.
- Outputs both volumetric and mass flow rates to central DCS systems.
- Includes built-in totalizers for batching and custody transfer.
- Essential for dosing, blending, and utility billing operations.
Access Catalog

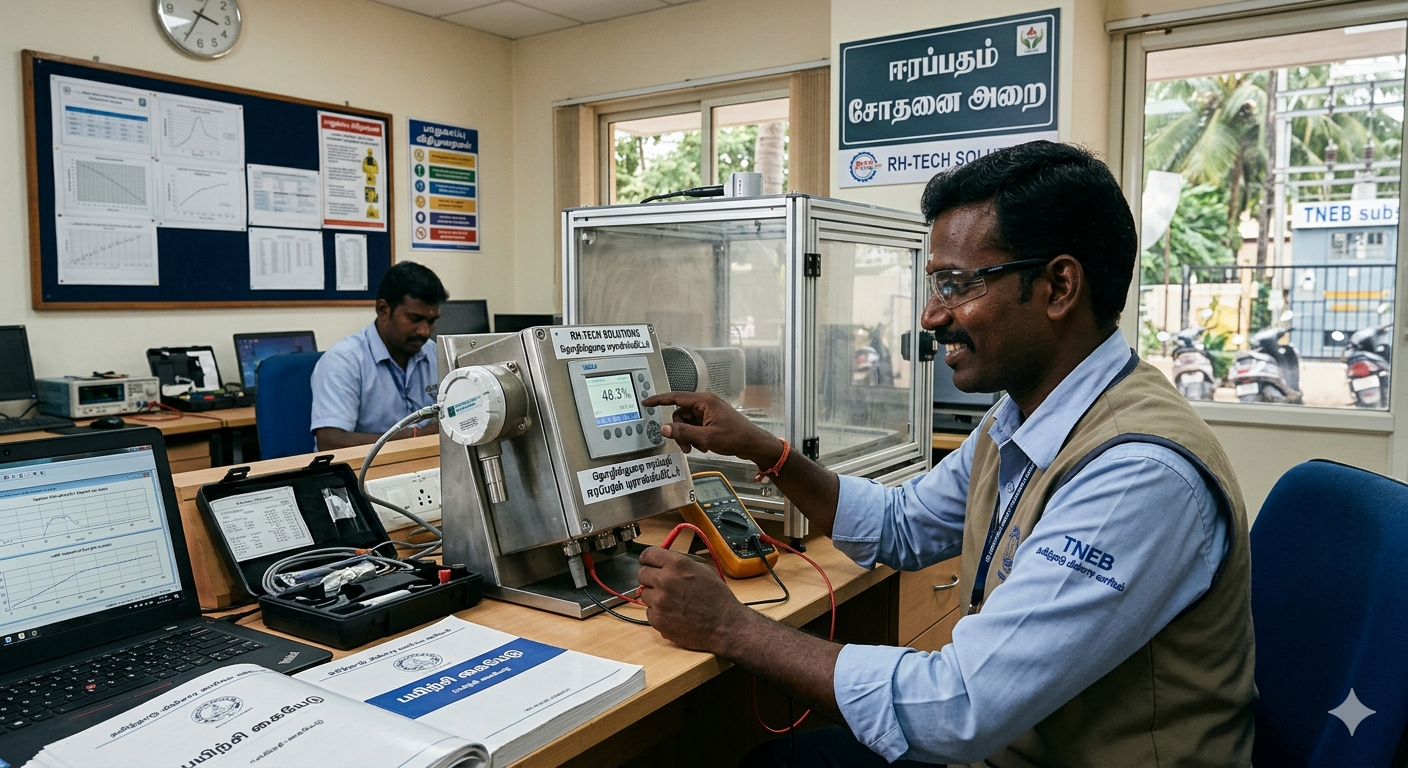

Humidity Transmitters
- Utilizes capacitive polymer sensors for Relative Humidity (RH).
- Calculates critical dew point metrics to prevent condensation.
- Mandatory for cleanrooms, data centers, and pharmaceutical storage.
- Ensures strict environmental compliance in HVAC applications.
Access Catalog

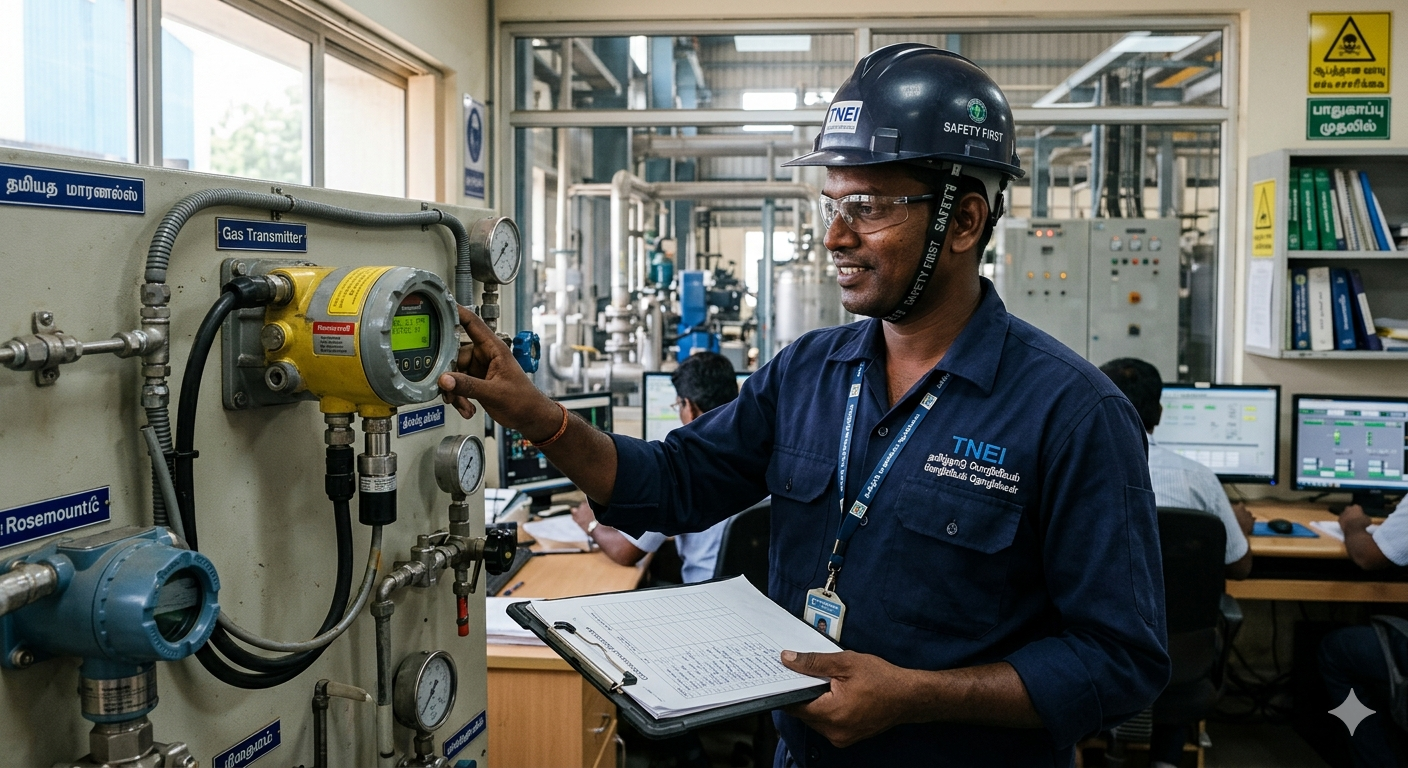

Gas Transmitters
- Outputs real-time gas concentration (LEL, toxic, O2) to controllers.
- Acts as the permanent sensing node for facility safety networks.
- Features robust infrared or electrochemical sensing heads.
- Triggers automated ventilation and evacuation sirens instantly.
Access Catalog

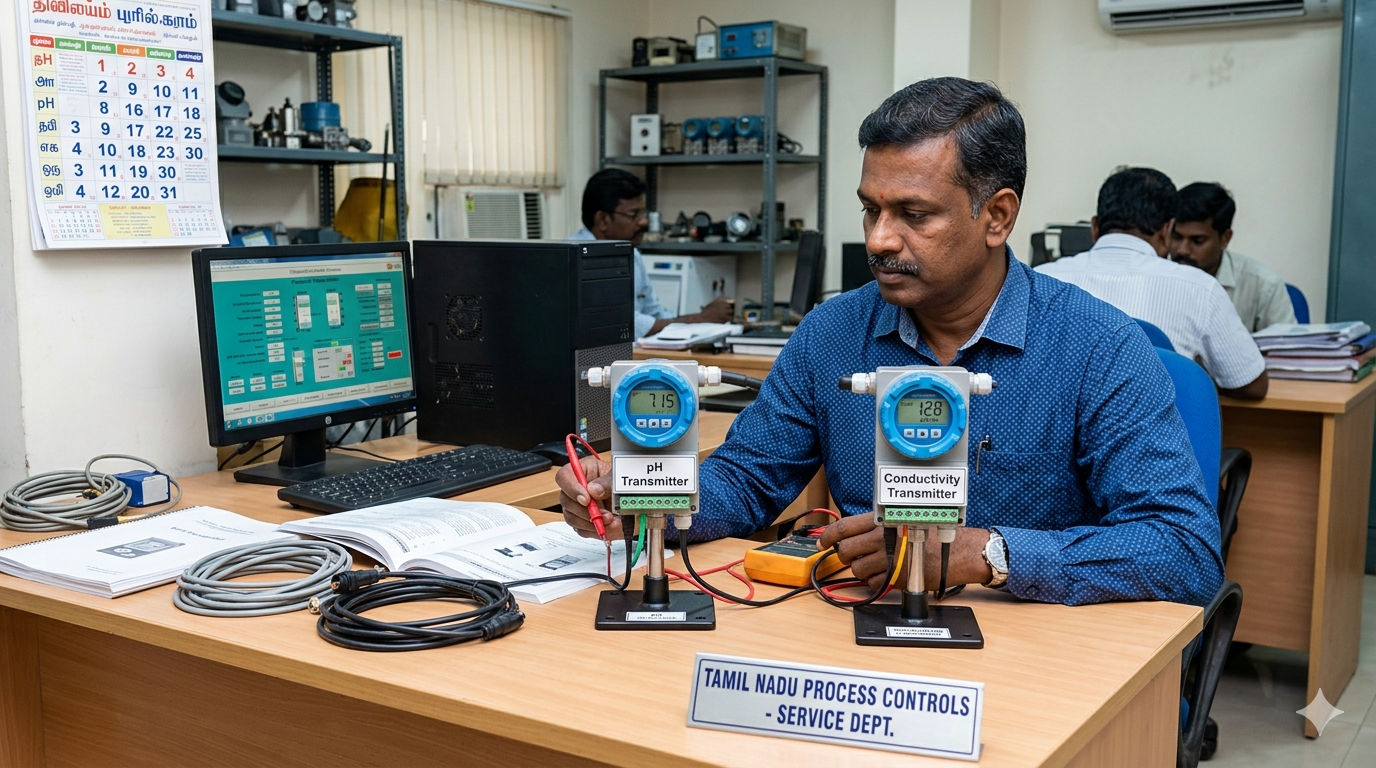

pH & Cond. Transmitters
- Provides continuous inline liquid analysis for process control.
- Critical for monitoring RO water purity and boiler blowdown.
- Features automatic temperature compensation (ATC) for accurate pH.
- Drives automated chemical dosing pumps in effluent treatment.
Access Catalog

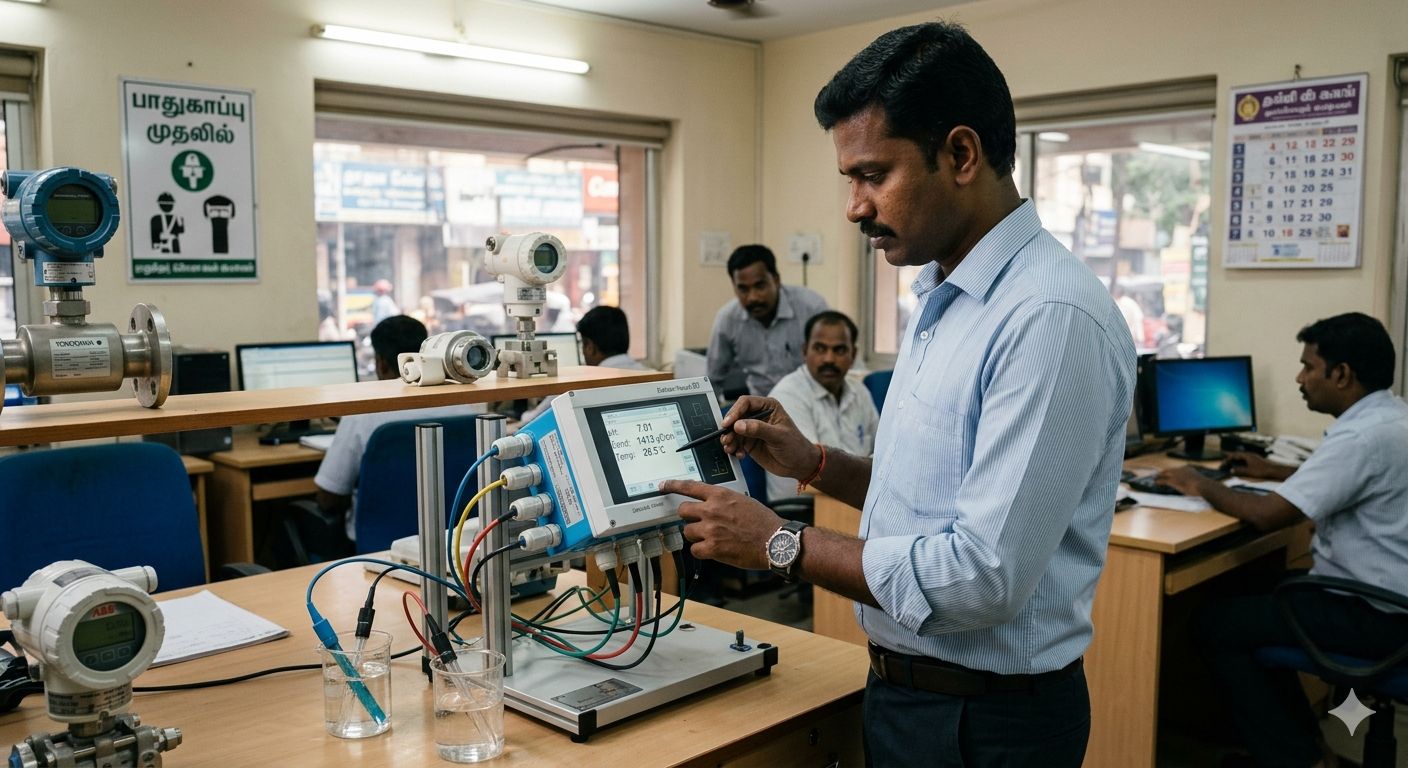

Multi-Parameter Transmitters
- Combines multiple sensor inputs (e.g., pH, ORP, Temp) into one unit.
- Reduces installation footprint and significantly cuts cabling costs.
- Features split-screen digital displays for simultaneous monitoring.
- Outputs complex data streams via Modbus or Ethernet/IP.
Access Catalog

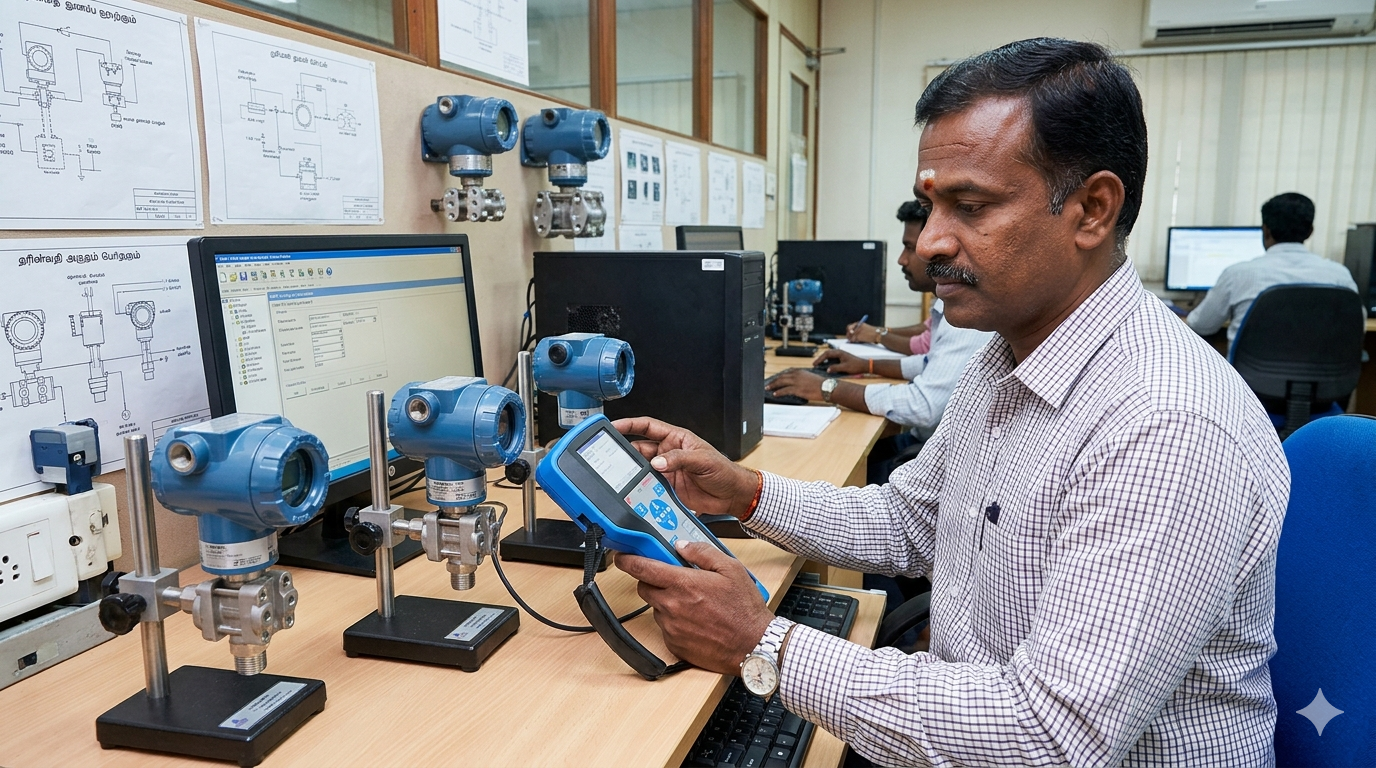

Smart / HART Transmitters
- Microprocessor-based for unmatched accuracy and self-diagnostics.
- Superimposes digital HART protocol over standard 4-20mA wiring.
- Allows remote configuration, calibration, and troubleshooting.
- Predictive maintenance alerts prevent unexpected process downtime.
Access Catalog

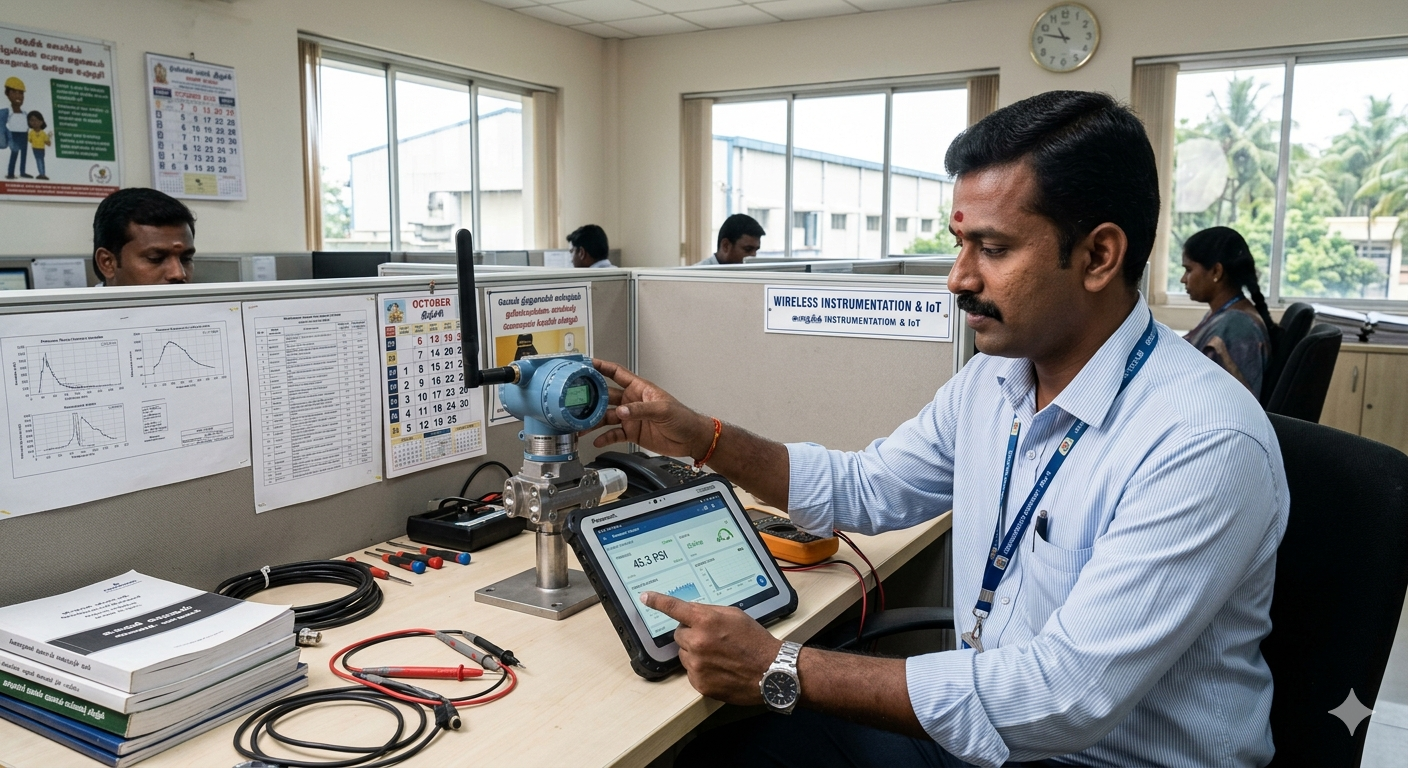

Wireless / IoT Transmitters
- Eliminates expensive conduit and cabling across sprawling facilities.
- Utilizes industrial mesh networks like WirelessHART or ISA100.
- Battery-powered operation for remote, hard-to-reach monitoring points.
- Seamlessly integrates into cloud-based IoT predictive analytics.
Access Catalog

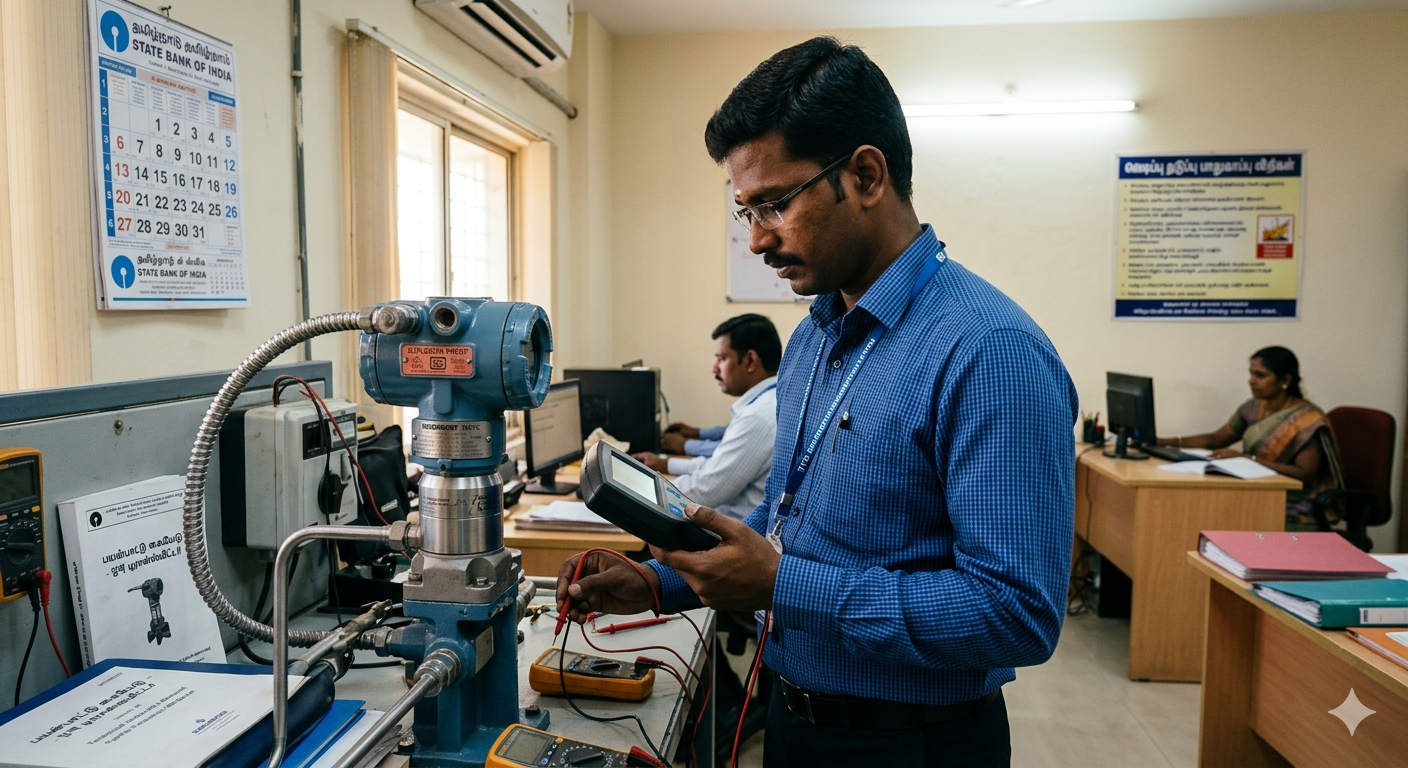

Explosion Proof Transmitters
- Housed in heavy-duty cast aluminum or 316 stainless steel enclosures.
- Designed to contain internal ignitions without sparking outside.
- Strictly ATEX/IECEx certified for Zone 0, 1, and 2 hazardous areas.
- Mandatory for safe operation in volatile petrochemical environments.
Access Catalog
.png)

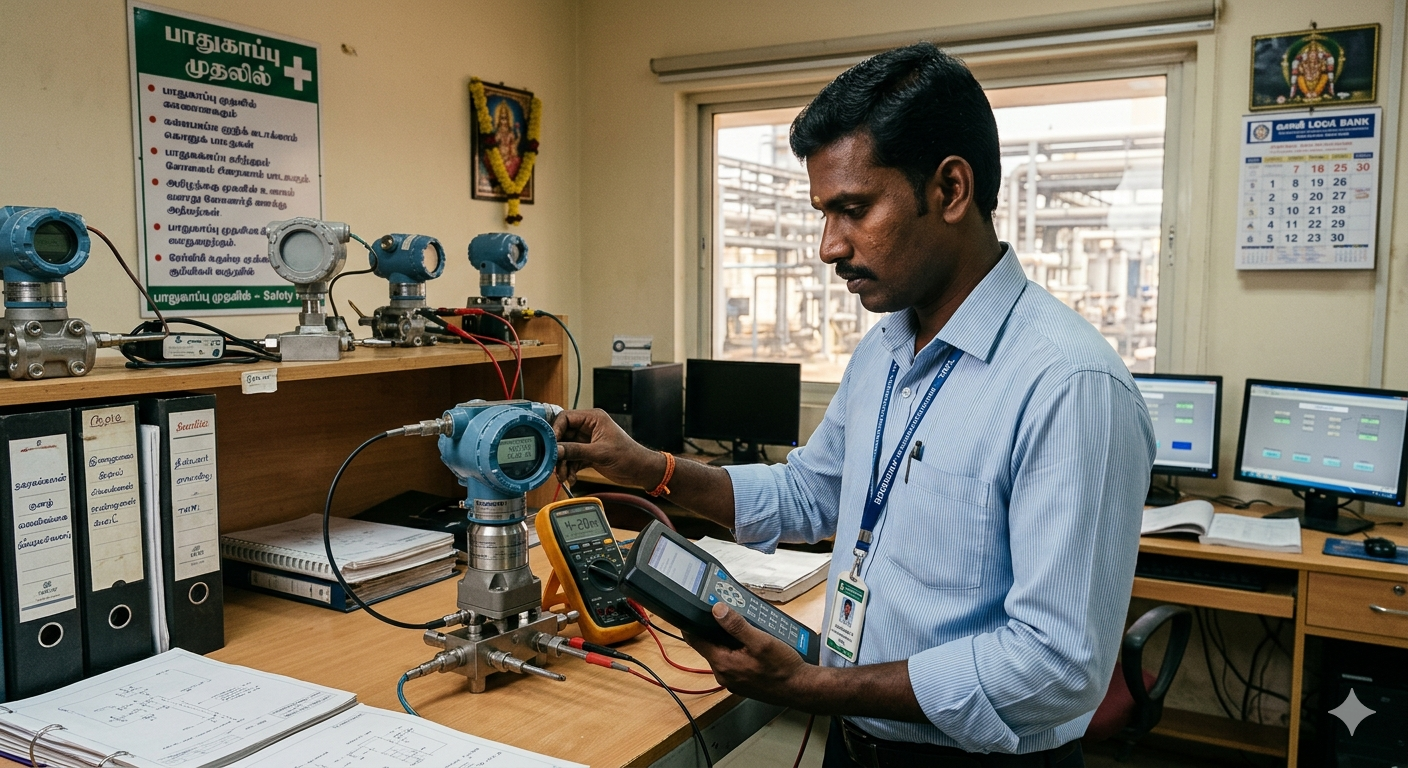

Loop-Powered (4–20mA)
- Highly efficient 2-wire systems drawing power directly from the signal loop.
- Simplifies installation by removing the need for a separate power supply.
- The global industrial standard for analog signal transmission over distance.
- Highly immune to signal degradation and electrical noise.
Access Catalog

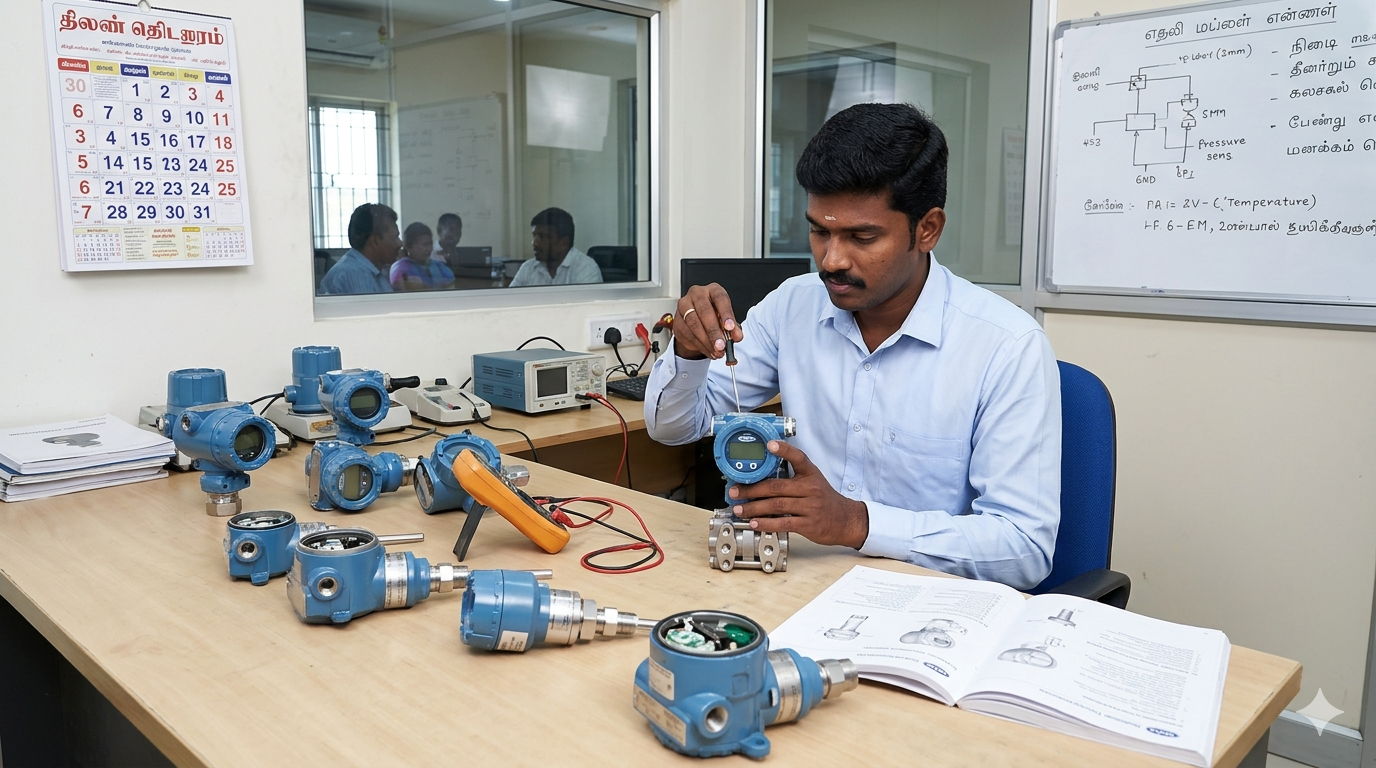

Field Mount Transmitters
- Engineered for direct installation on pipelines or outdoor process vessels.
- Features rugged IP67/IP68 weatherproof housings with large local displays.
- Built to withstand extreme temperature swings and high-vibration areas.
- Includes localized push-button controls for easy field calibration.
Access Catalog

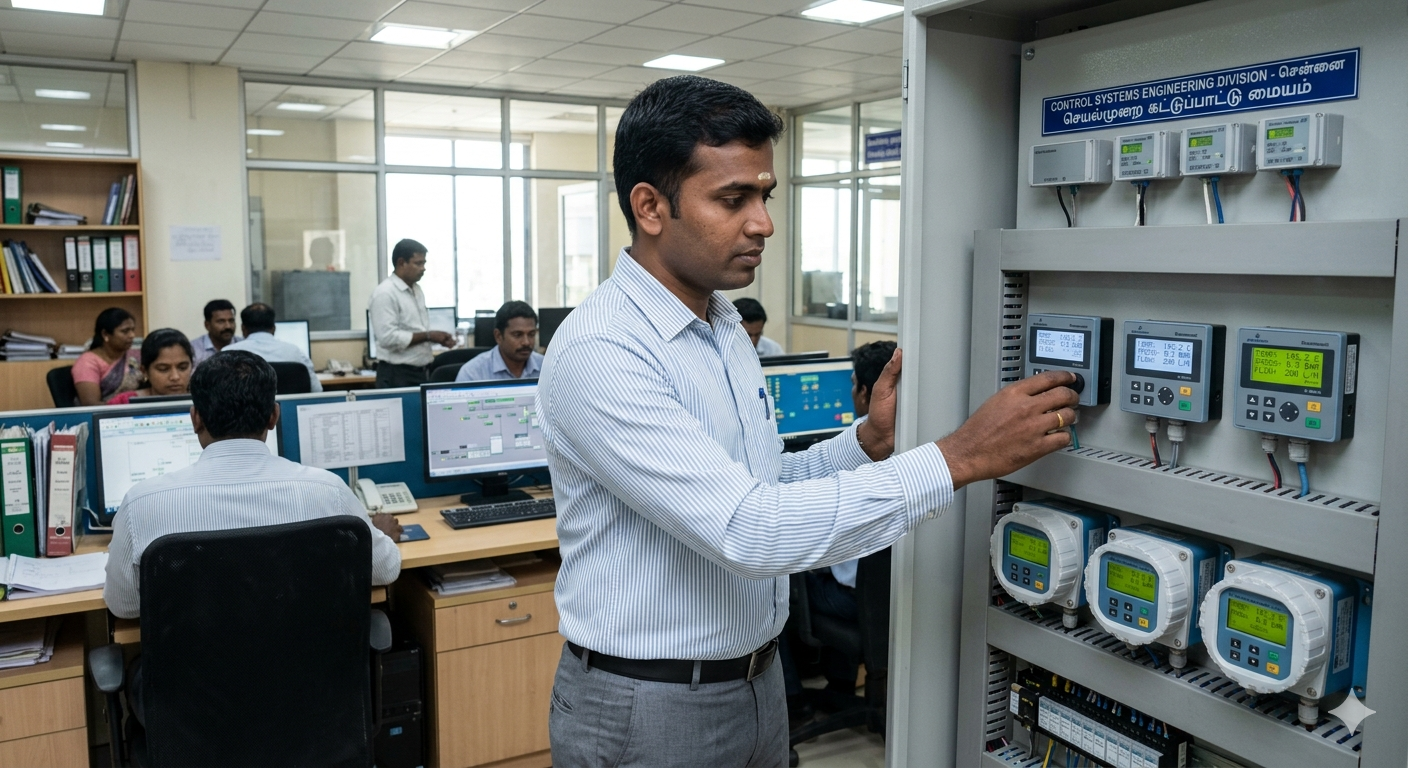

Panel Mount Transmitters
- Compact configurations designed explicitly for control room enclosures.
- Often utilizes high-density DIN-rail mounting to save cabinet space.
- Translates raw field sensor data in a clean, climate-controlled environment.
- Acts as the critical bridge between field instruments and the central PLC.
Access Catalog

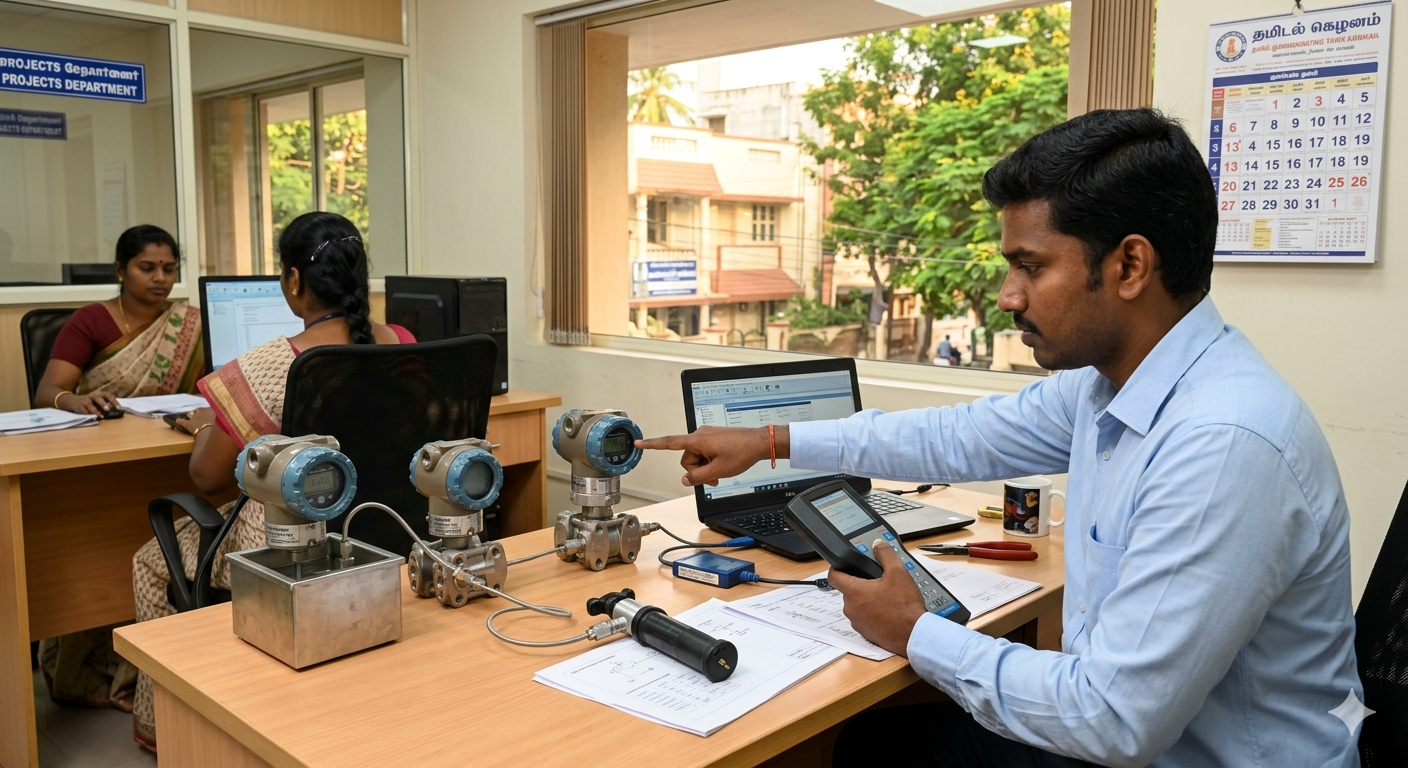

Industrial Process Transmitters
- Heavy-duty, high-stability units built for continuous 24/7 manufacturing.
- Ensures zero drift over extended periods to maintain product quality.
- Constructed with premium wetted parts like Hastelloy or Tantalum.
- The backbone of automation in high-stakes chemical and power plants.
Access Catalog
No Categories Found
Try adjusting your search terminology.
Enterprise Transmission Protocol
Understanding the architecture of industrial transmitters ensures the accurate, noise-free delivery of critical field data to central control systems (DCS/PLC). Selecting the wrong transmission protocol or enclosure type can result in signal degradation, process downtime, or severe safety hazards.
The 4-20mA Current Loop
Industry StandardThe bedrock of industrial automation. By using current instead of voltage, the signal remains immune to electrical noise and voltage drops over long cable runs. The "4mA" baseline serves as a live zero, immediately indicating a broken wire or complete sensor failure.
Smart / HART Protocol
Digital OverlayHighway Addressable Remote Transducer (HART) superimposes a high-frequency digital signal on top of the standard 4-20mA loop. This allows for two-way communication, enabling remote calibration, sensor diagnostics, and the transmission of secondary variables.
Hazardous Area Protection
Explosion SafetyIn environments with combustible gases or dust, transmitters must be "Explosion Proof" (Ex d - capable of containing an internal blast) or "Intrinsically Safe" (Ex i - operating at energy levels too low to ignite a spark). Proper specification is a strict legal requirement.
Wireless Telemetry
Modern InfrastructureWirelessHART and ISA100 mesh networks eliminate the need for costly copper conduit runs. These battery-powered transmitters self-organize, finding the most robust path to the gateway, ensuring data reliability even in complex, metallic plant structures.
Transmitter Technology Matrix
| Process Variable | Sensor Technology | Primary Application | Output Protocol |
|---|---|---|---|
| Temperature | RTD (Pt100) / Thermocouple | Reactor control, HVAC, Boilers. | 4-20mA / HART |
| Pressure (Gauge/Abs) | Piezoresistive / Capacitive | Pump monitoring, Pipeline integrity. | 4-20mA / Wireless |
| Level (Continuous) | Radar / Ultrasonic / DP | Silo inventory, Tank farm management. | 4-20mA / Modbus |
| Flow (Volumetric) | Magnetic / Vortex / Turbine | Water treatment, Chemical dosing. | Pulse / 4-20mA |
| Liquid Analysis (pH) | Electrochemical Glass Bulb | Effluent discharge, RO purification. | 4-20mA / Ethernet |
Mission-Critical Selection Criteria
When specifying a transmitter for process control, evaluate the following vital parameters to guarantee performance and seamless integration.
1. Turndown Ratio & Range
Select a smart transmitter with a high turndown ratio (e.g., 100:1) to allow for flexible re-ranging via HART without needing to purchase a new physical instrument if process conditions change.
2. Communication Protocol
Ensure the transmitter output matches your DCS/PLC input cards. While 4-20mA is universal, modern facilities may require digital buses like Profibus, Foundation Fieldbus, or Ethernet/IP for richer data.
3. Environmental Rating
Match the enclosure to the physical reality of the installation point. Use IP67/IP68 for washdown areas, 316L Stainless Steel for corrosive salt-spray environments, and ATEX certified housings for Zone 1 hazard areas.
