Stroboscopes & Tachometers
Engineered to precisely measure rotational speed, linear velocity, and observe high-speed moving parts in slow motion through advanced optical flashing and laser targeting.
Widely Used By
Motor & Turbine Mfrs HVAC Maintenance Paper & Printing Mills Automotive R&D Packaging Production
Key Purposes
RPM Measurement Vibration Analysis Slip & Wear Detection High-Speed Web Inspection Gear & Belt Alignment
Single Tap to Scroll • Double Tap to Open Catalog

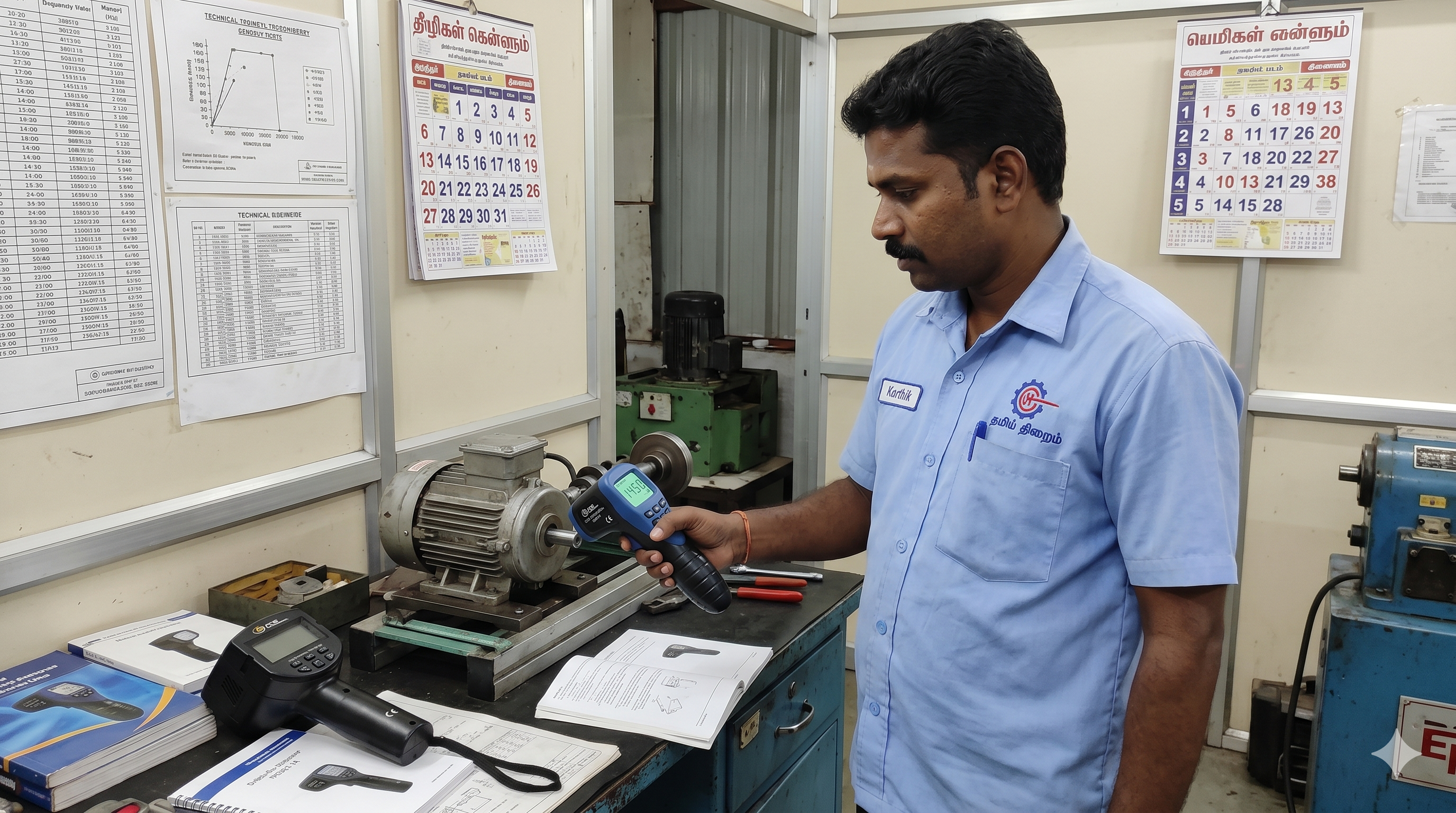

Digital Tachometers
- High-accuracy LCD/LED readouts for immediate data interpretation.
- Easy toggling between RPM, m/min, and ft/min.
- Eliminates parallax reading errors found in older mechanical gauges.
Access Catalog

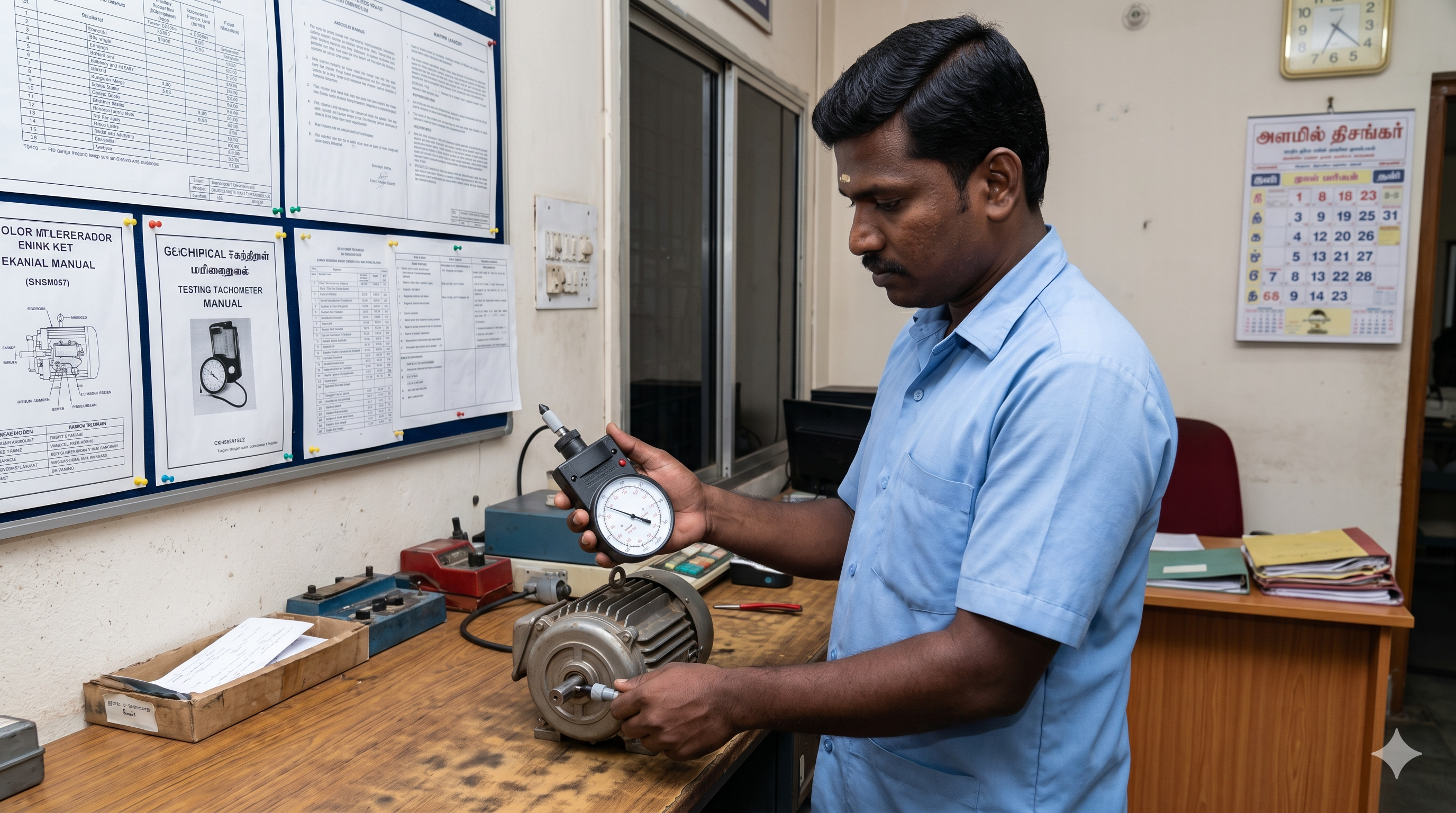

Analog Tachometers
- Classic dial-indicator design with physical sweep needles.
- Requires absolutely no batteries, ensuring field readiness.
- Highly reliable for rough, heavy-duty industrial environments.
Access Catalog
Contact Tachometers
- Uses physical wheels and cone tips pressed directly against shafts.
- Provides high accuracy for linear surface speeds (conveyor belts).
- Unaffected by ambient light conditions or shiny metallic surfaces.
Access Catalog
 Tachometers.png)
Laser Tachometers
- Enables safe RPM measurement from a distance using laser targeting.
- Requires a small strip of reflective tape applied to the rotating object.
- Crucial for inspecting hazardous, hard-to-reach, or enclosed machinery.
Access Catalog
Optical Tachometers
- Utilizes infrared or visible light beams to count pulses per minute.
- Excellent for tight spaces where laser scattering might be an issue.
- High sensitivity sensors capable of capturing minute rotational variations.
Access Catalog

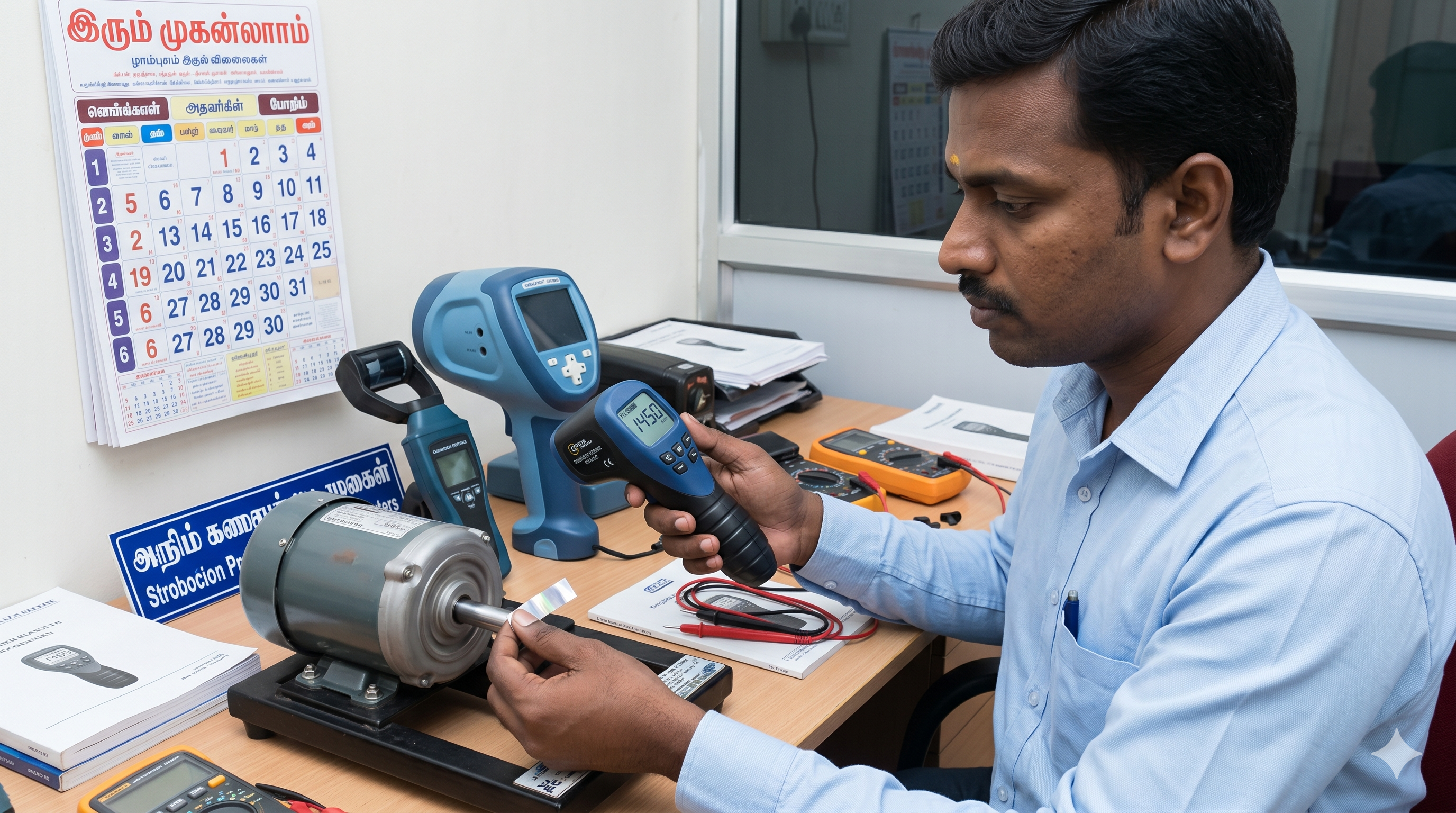

Handheld Tachometers
- Portable and battery-operated for rapid plant-wide mobility.
- Ergonomic designs intended for quick field inspections and maintenance checks.
- Often includes memory recall functions for Max/Min and last value.
Access Catalog
Panel Mount Tachometers
- Fixed installations for continuous monitoring on factory control panels.
- Hardwired to proximity switches or optical sensors on the machine line.
- Features relay outputs to trigger alarms during over/under-speed events.
Access Catalog

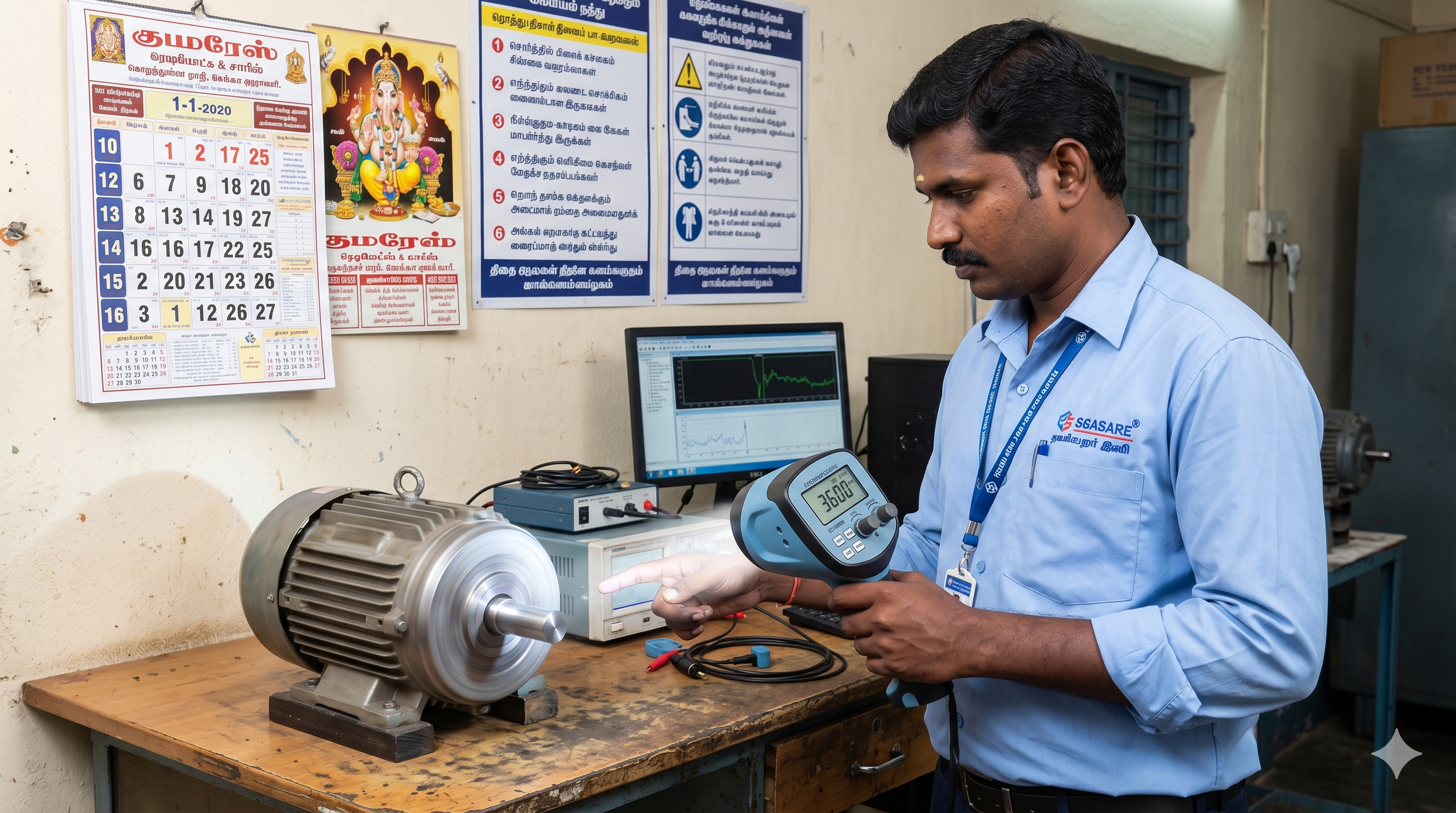

High-Speed Tachometers
- Engineered specifically for extreme rotational ranges (up to 99,999 RPM).
- Essential for testing high-speed turbines, dental drills, and CNC spindles.
- Features ultra-fast sampling rates to catch rapid speed fluctuations.
Access Catalog

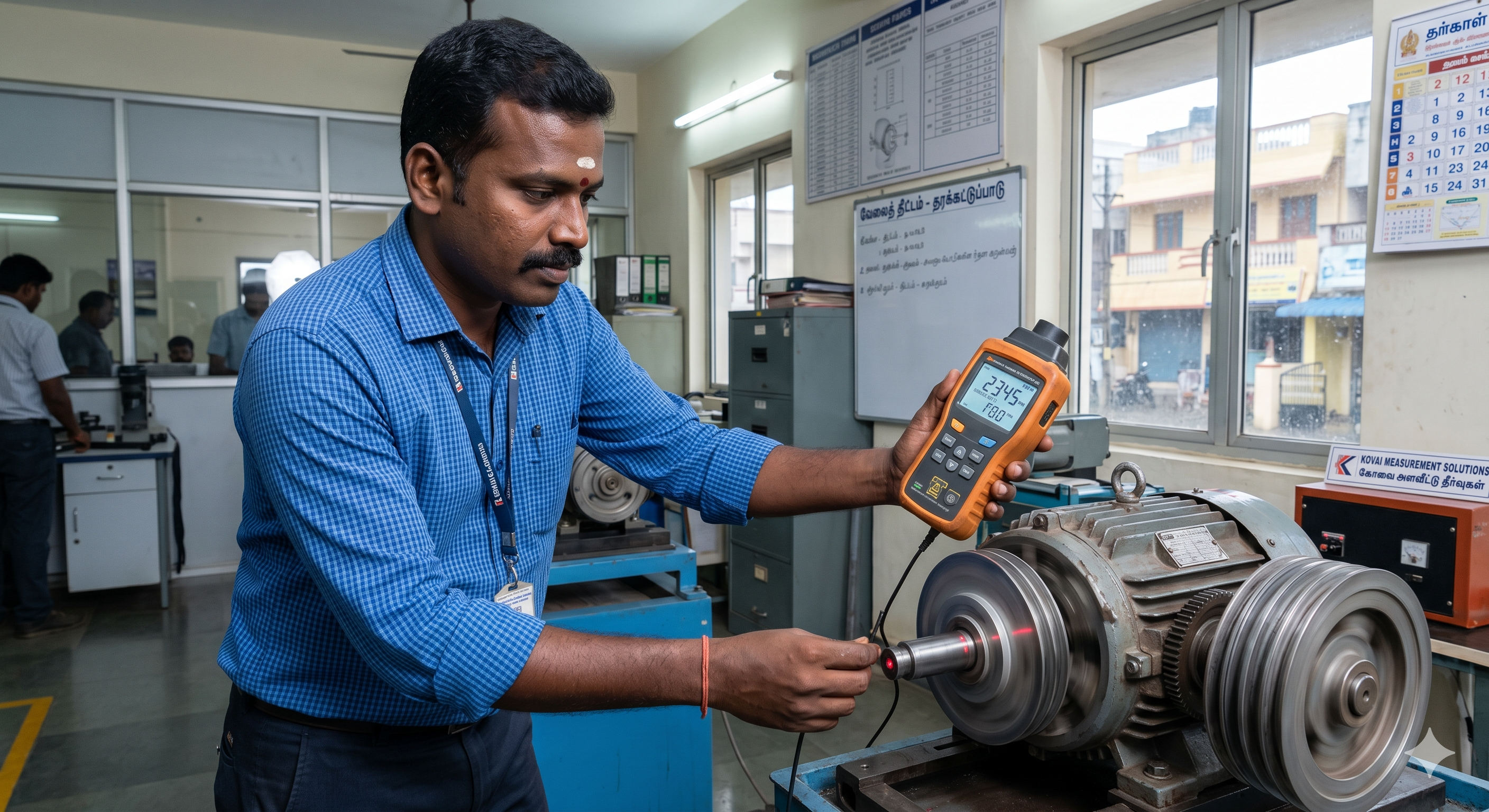

Multi-Function Tachometers
- Combines both contact wheels and non-contact laser capabilities.
- Offers maximum versatility for technicians servicing varied equipment.
- Easily switches measurement modes with interchangeable adapters.
Access Catalog
Data Logging Tachometers
- Stores thousands of historical RPM trend data points internally.
- Vital for predictive maintenance and long-term mechanical degradation tracking.
- Includes USB or Bluetooth connectivity for deep PC software analysis.
Access Catalog
Portable Stroboscopes
- Battery-powered flashers for inspecting rotating parts across the factory floor.
- Pistol-grip designs allow for single-handed operation and light targeting.
- Calculates RPM visually without any reflective tape or machine contact.
Access Catalog

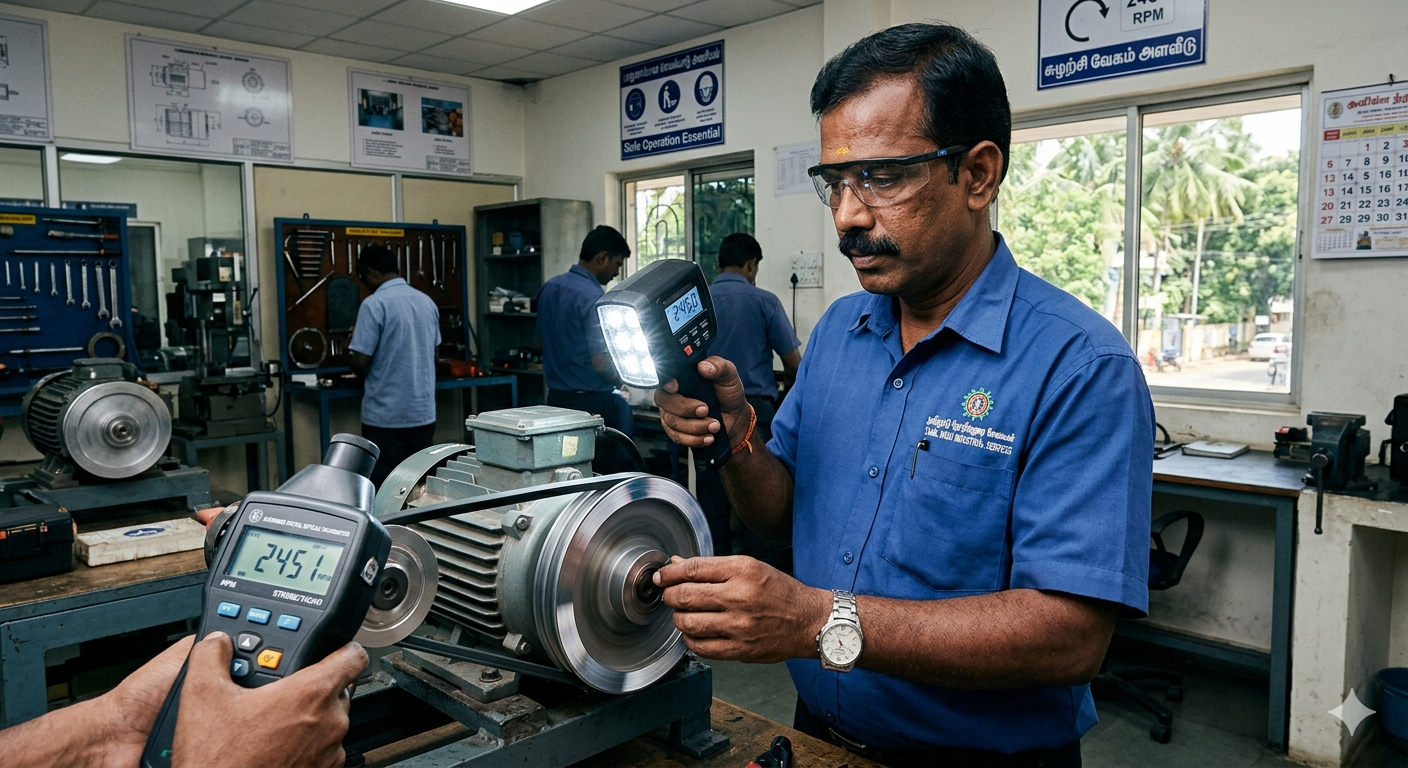

LED Stroboscopes
- Utilizes extremely bright, long-lasting LED diode arrays.
- Features zero bulb-replacement needs and significantly lower power draw.
- Delivers highly uniform light distribution across wide inspection areas.
Access Catalog
Xenon Stroboscopes
- Provides ultra-short, high-intensity white light flashes.
- Produces unparalleled crispness for crystal-clear stop-motion observation.
- The traditional gold standard for inspecting printing press registration.
Access Catalog

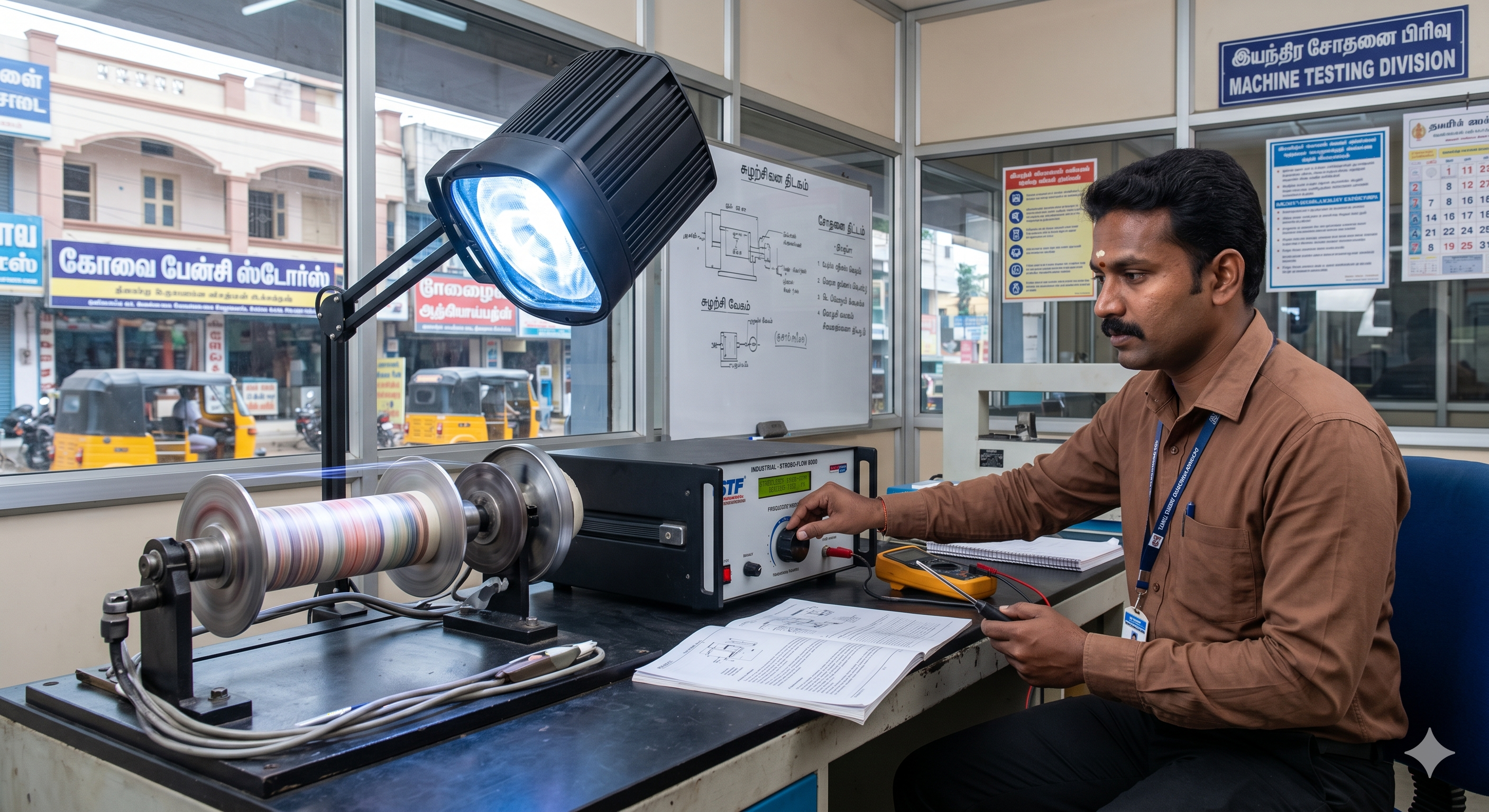

Fixed Industrial Strobes
- Permanently mounted wide-area flashers for continuous production lines.
- Synchronized directly to machine speeds via external trigger sensors.
- Indispensable for quality control on high-speed paper, film, and foil webs.
Access Catalog
High Frequency Strobes
- Capable of extreme flash rates exceeding 300,000 FPM.
- Specifically engineered to freeze motion on ultra-fast centrifuges and micro-motors.
- Requires advanced internal circuitry to maintain flash intensity at high speeds.
Access Catalog
Phase Shift / Timing
- Allows the user to virtually "rotate" the stopped image forward or backward.
- Inspect different angles of a gear or fan blade without stopping the machine.
- Crucial for pinpointing the exact degree of timing marks on engines.
Access Catalog
No instruments found
Try adjusting your search terms.
Enterprise Motion Analysis Protocol
Understanding the physics of motion capture is essential for establishing robust maintenance and quality control. Selecting the incorrect methodology—such as using a contact wheel on a high-torque spindle—will lead to inaccurate assessments and potential instrument destruction.
Photoelectric Reflection (Laser)
Safe RPM MeasurementA highly focused laser beam is aimed at a piece of reflective tape attached to the rotating shaft. The instrument counts the exact number of light pulses reflected back per minute. It offers exceptional safety by keeping operators away from dangerous moving parts.
Mechanical Coupling (Contact)
Linear Surface SpeedsPhysical wheels or rubber cones are pressed directly against the moving surface. While RPM can be measured via the shaft center, contact tachometers excel at measuring the linear speed of conveyor belts, extruded plastics, and rolling webs in meters or feet per minute.
Stroboscopic Effect (Visual Freezing)
Inspection & DiagnosticsBy flashing a light at exactly the same frequency as a rotating object, the human eye perceives the object as completely stationary. This allows engineers to inspect belts for fraying, gears for missing teeth, and printing webs for alignment—while running at full speed.
Xenon vs. LED Flash Technology
Advanced ProfilingXenon tubes provide incredibly short flash durations (microseconds), resulting in the sharpest, blur-free stop-motion images for critical printing alignment. LEDs offer massive energy efficiency, zero bulb replacement, and wider area illumination for general mechanical inspection.
Application & Technology Matrix
| Maintenance / Inspection Task | Recommended Technology | Primary Advantage |
|---|---|---|
| Checking Enclosed Motor Shafts | Non-Contact (Laser) Tachometer | High safety margin; measures accurately from several feet away. |
| Linear Belt Speed (m/min) | Contact Tachometer (Wheel) | Direct physical conversion; no math or reflective tape needed. |
| Printing Web Inspection | Fixed Industrial Stroboscope | Freezes high-speed patterns to detect color registration errors. |
| General Field Maintenance | Multi-Function Handheld Tach | Covers both RPM and linear surface speeds in one tool. |
| Engine Timing / Gear Inspection | Phase Shift Stroboscope | Virtually rotates the stopped image to view all sides of a part. |
Advanced Testing Variables
To maintain enterprise-grade accuracy, technicians must strictly control the environmental and physical parameters that directly influence motion capture.
Harmonic Multiples (Strobes)
- The Harmonic Trap: An object will appear stationary not just at its true RPM, but also at multiples of that RPM (e.g., flashing at 1000, 2000, 4000 FPM for a 4000 RPM fan).
- Finding True RPM: Start flashing at a high frequency and lower it. The highest frequency that produces a single stationary image is the true RPM.
Ambient Light Interference
- Laser Washout: Direct, intense sunlight can wash out the reflective tape signal on optical tachometers, causing erratic readings.
- Strobe Contrast: Stroboscopes work best in dimmed environments. High ambient lighting reduces the visual contrast of the "frozen" image, making inspection difficult.
Contact Slippage & Pressure
- Wheel Slip: If insufficient pressure is applied to a contact wheel on a moving belt, the wheel will slip, leading to artificially low speed readings.
- Bearing Drag: Applying excessive force against a small motor shaft can physically slow the motor down or damage the tachometer's internal bearings.
