Oil & Petroleum Testing
High-precision analytical instrumentation engineered for strict compliance with ASTM, ISO, and IP testing methods across the petrochemical, refining, and power generation sectors.
Primary Applications
Petroleum Refineries Pipeline Transfer Stations Power Generation Plants Aviation Fuel Depots Lubricant Manufacturing
Analytical Focus
Combustion & Volatility Viscosity & Flow Compositional Analysis Dielectric Properties Oxidation Stability
Single Tap to Scroll • Double Tap to Open Catalog

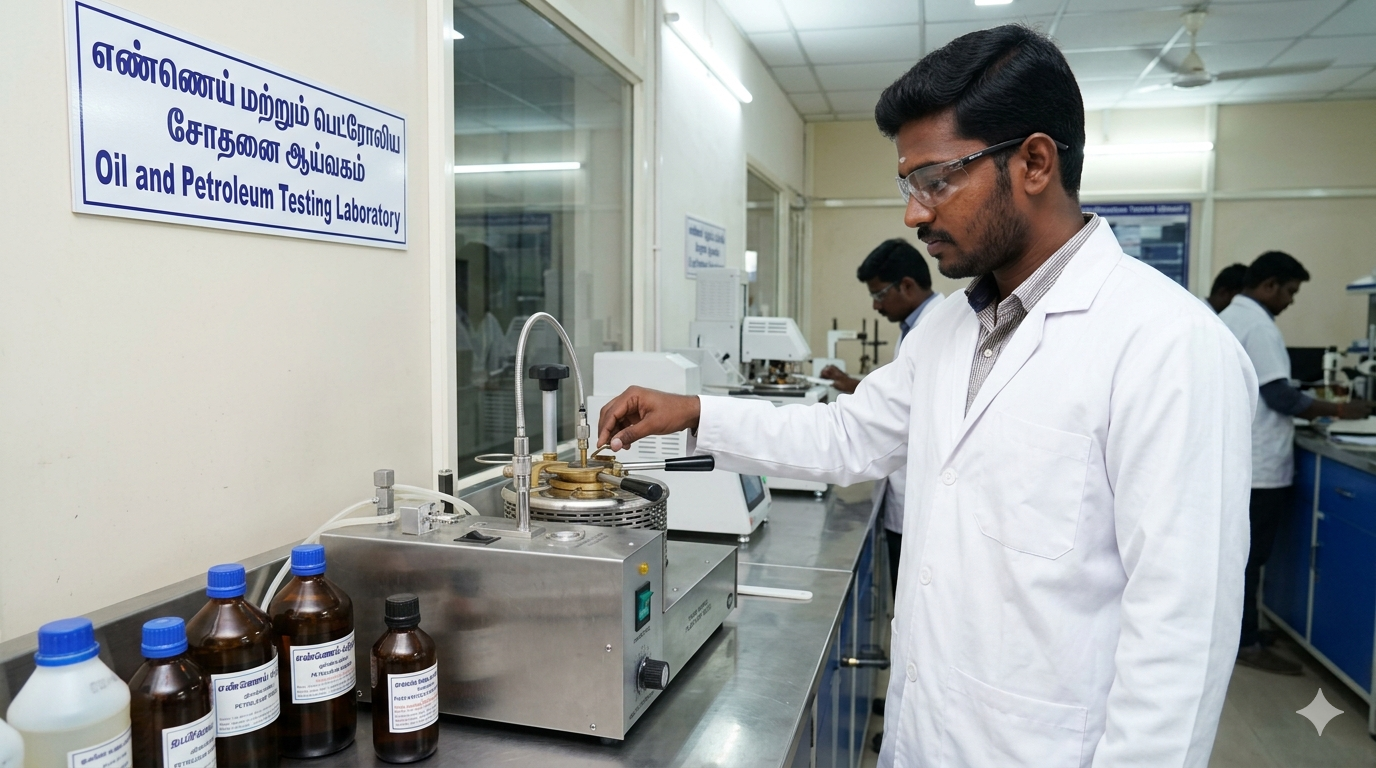

Flash Point Testers
- Determines the lowest temperature where vapors ignite.
- Available in Pensky-Martens, Cleveland Open Cup, and Tag formats.
- Crucial for classifying transport and storage hazard compliance.
- Fully automated ignition and barometric pressure correction.
Access Catalog

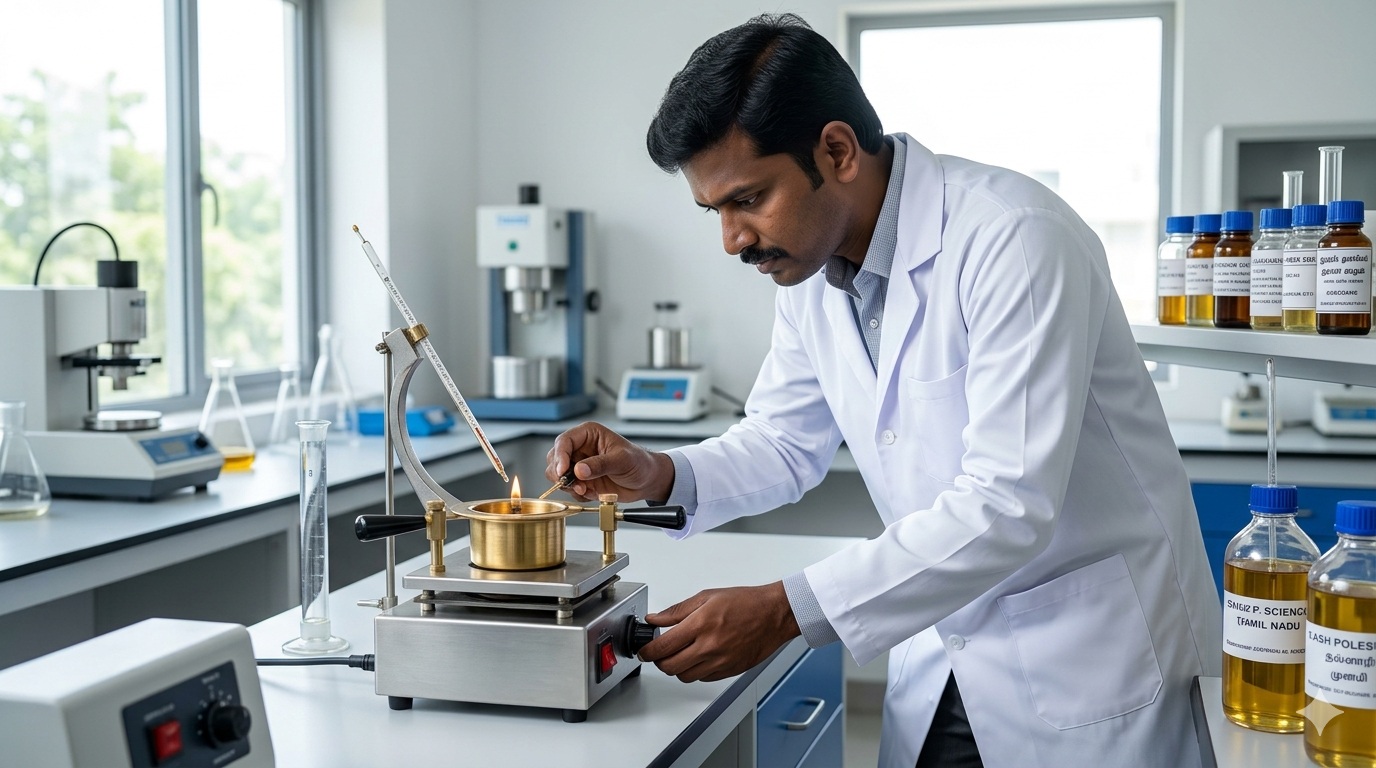

Fire Point Testers
- Determines the temperature supporting continuous combustion.
- Often combined with Open Cup Flash Point instrumentation.
- Critical metric for high-temperature lubricants and transformer oils.
- Complies strictly with ASTM D92 methodology.
Access Catalog

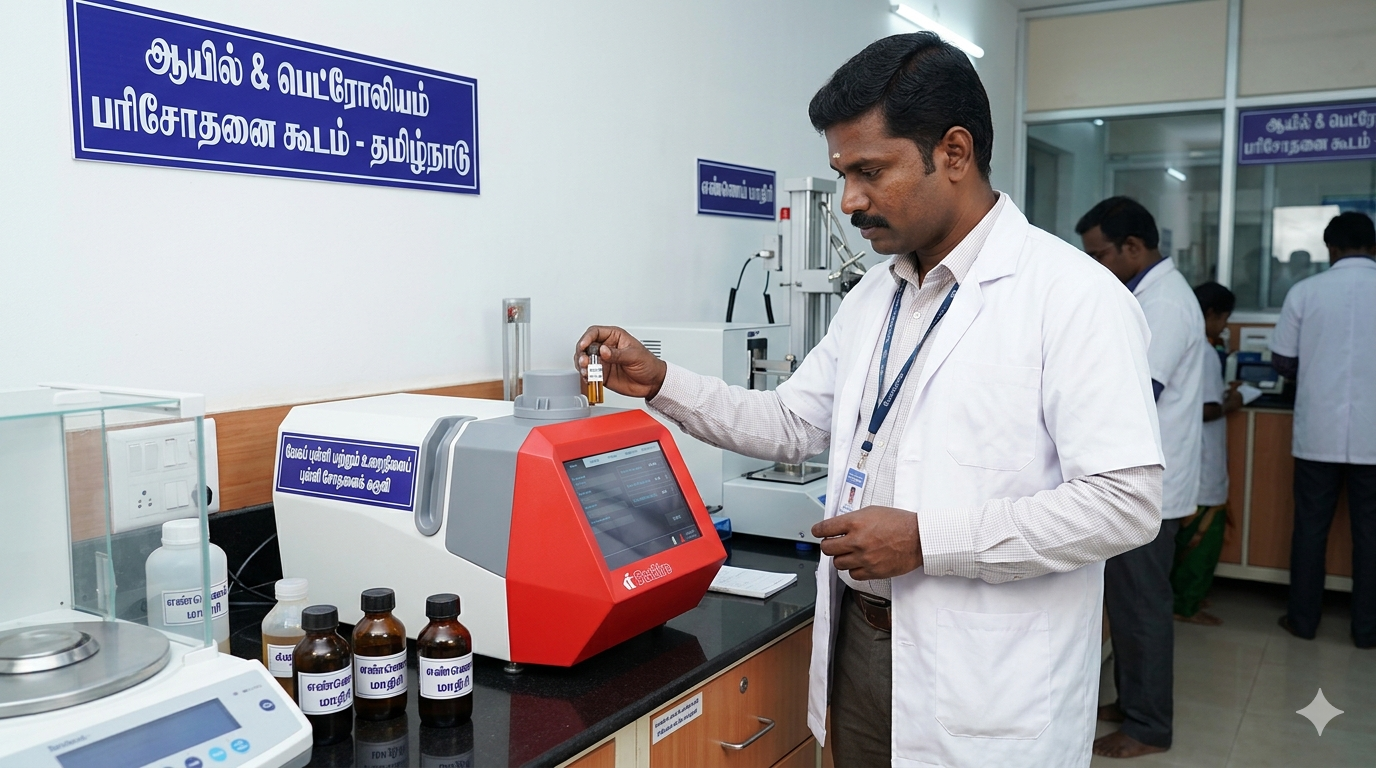

Cloud & Pour Point Testers
- Identifies wax crystallization (cloud) and loss of flow (pour).
- Essential for validating diesel and crude oil for cold-weather pipelines.
- Features multi-stage cooling baths reaching -80°C.
- Automated optical and tilting sensors eliminate human error.
Access Catalog

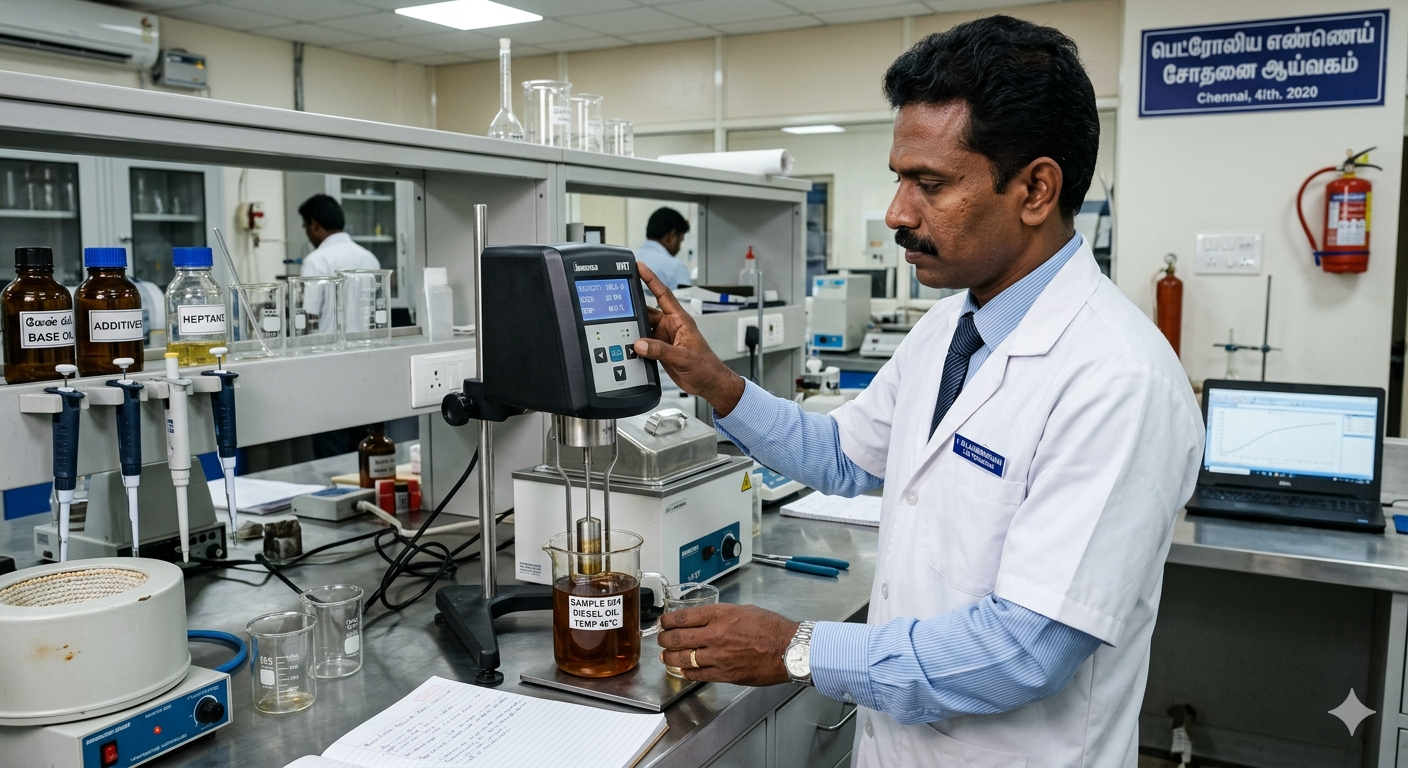

Viscosity Testing Instruments
- Measures kinematic and dynamic resistance to fluid flow.
- Includes high-precision capillary baths and rotational rheometers.
- Vital for grading engine oils, bitumens, and polymer solutions.
- Strict temperature stabilization exceeding ASTM D445 requirements.
Access Catalog

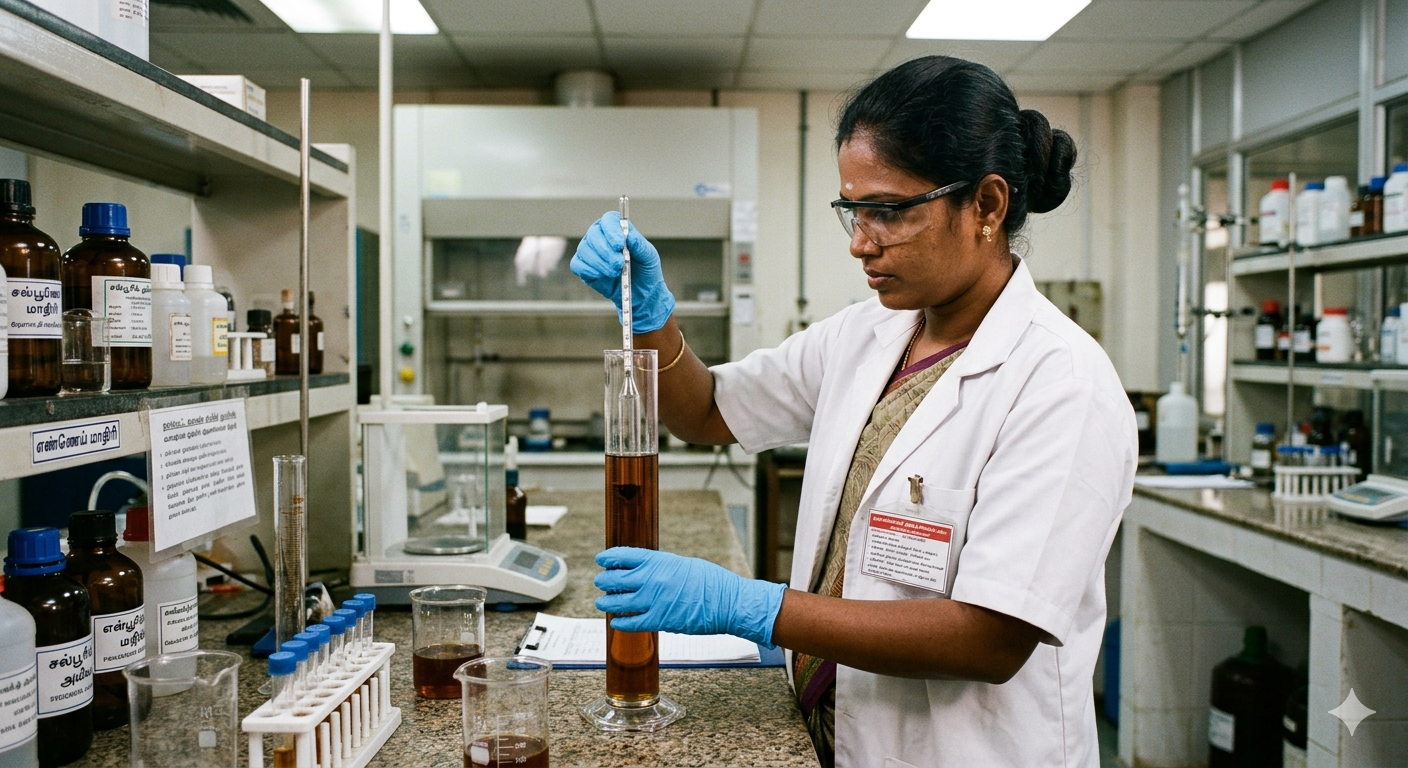

Density & Specific Gravity
- Digital oscillating U-tube hydrometers for rapid mass/volume checks.
- Determines API gravity for crude oil pricing and blending.
- Integrated Peltier temperature control ensures 4-decimal accuracy.
- Replaces fragile and slow traditional glass hydrometers.
Access Catalog

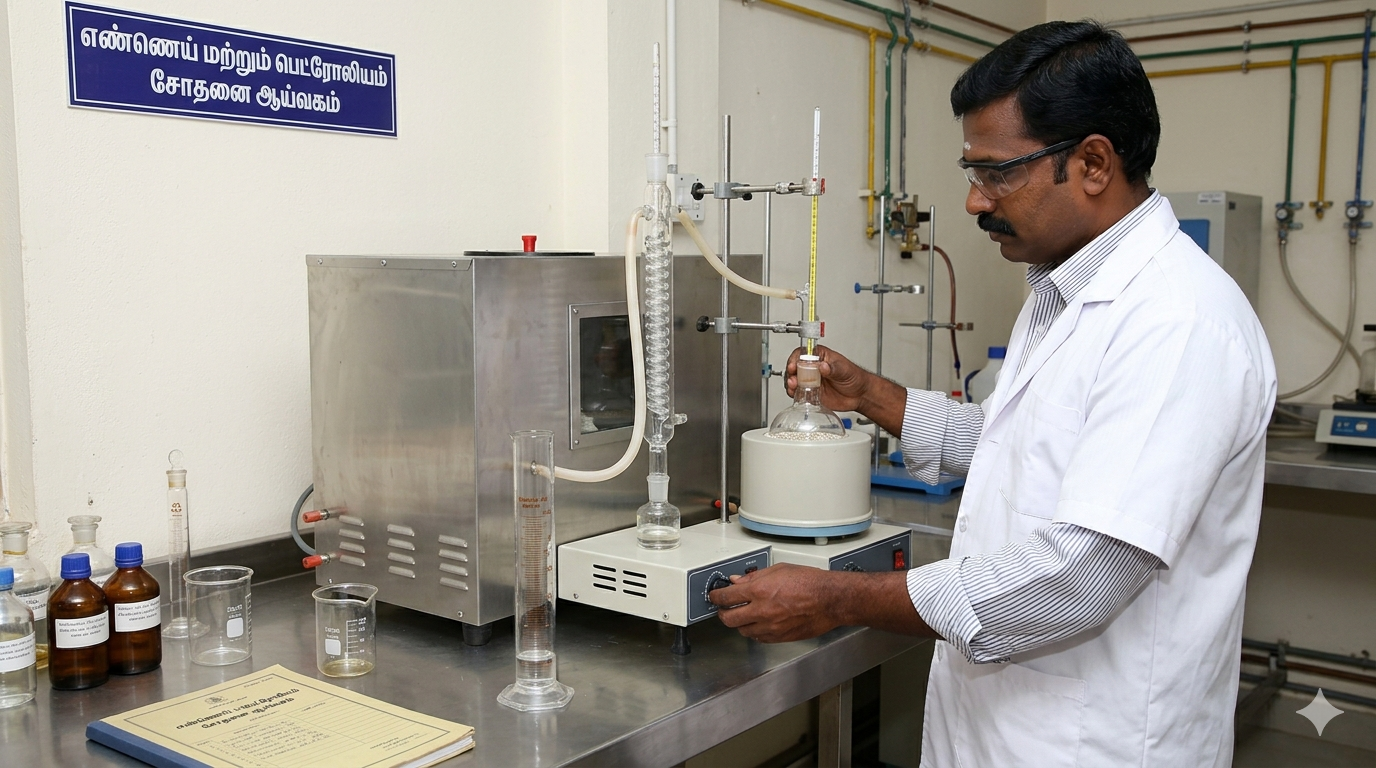

Distillation Apparatus
- Profiles the boiling range characteristics of liquid hydrocarbons.
- Automated ASTM D86 compliance for gasoline, naphtha, and kerosene.
- Tracks initial boiling point (IBP) to final boiling point (FBP).
- Features integrated fire-extinguishing systems for lab safety.
Access Catalog

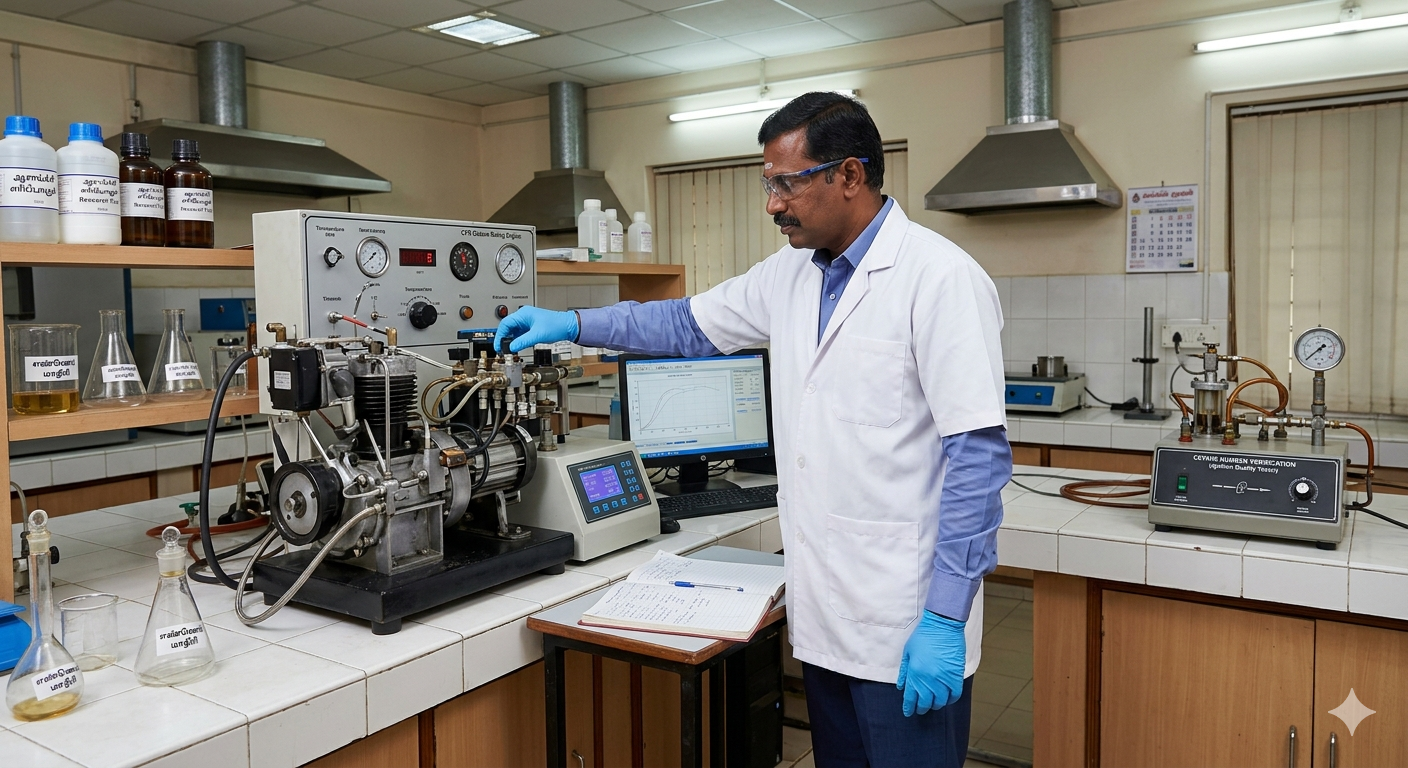

Octane / Cetane Number
- Analyzes ignition delay and knocking characteristics of engine fuels.
- Portable NIR (Near Infrared) analyzers for rapid field grading.
- Crucial for refinery quality control and fuel terminal blending.
- Directly correlates to ASTM Research and Motor Octane Numbers.
Access Catalog

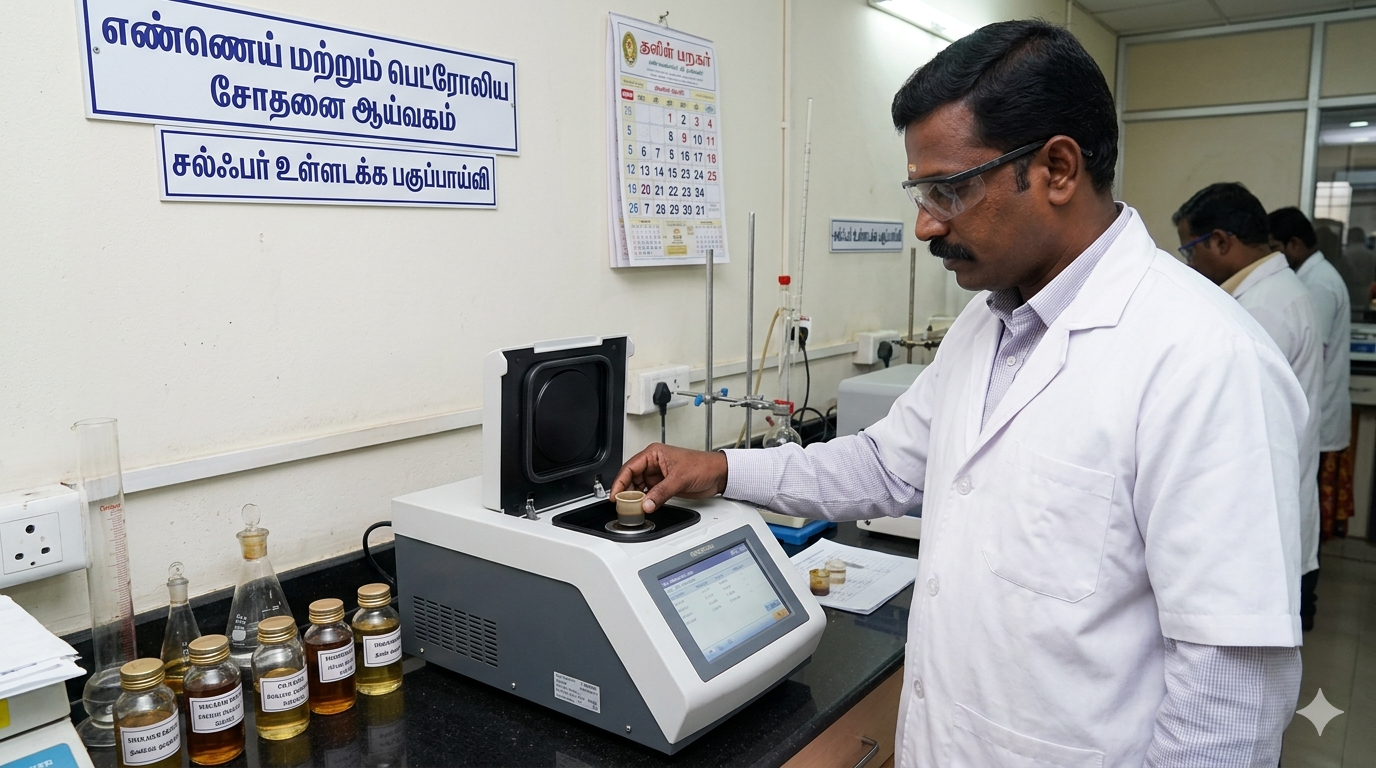

Sulfur Content Analyzers
- Uses EDXRF or UV Fluorescence to detect ppm-level sulfur.
- Mandatory for enforcing ultra-low sulfur diesel (ULSD) regulations.
- Prevents catalytic converter poisoning and severe emissions.
- Non-destructive, rapid analysis requiring minimal sample prep.
Access Catalog

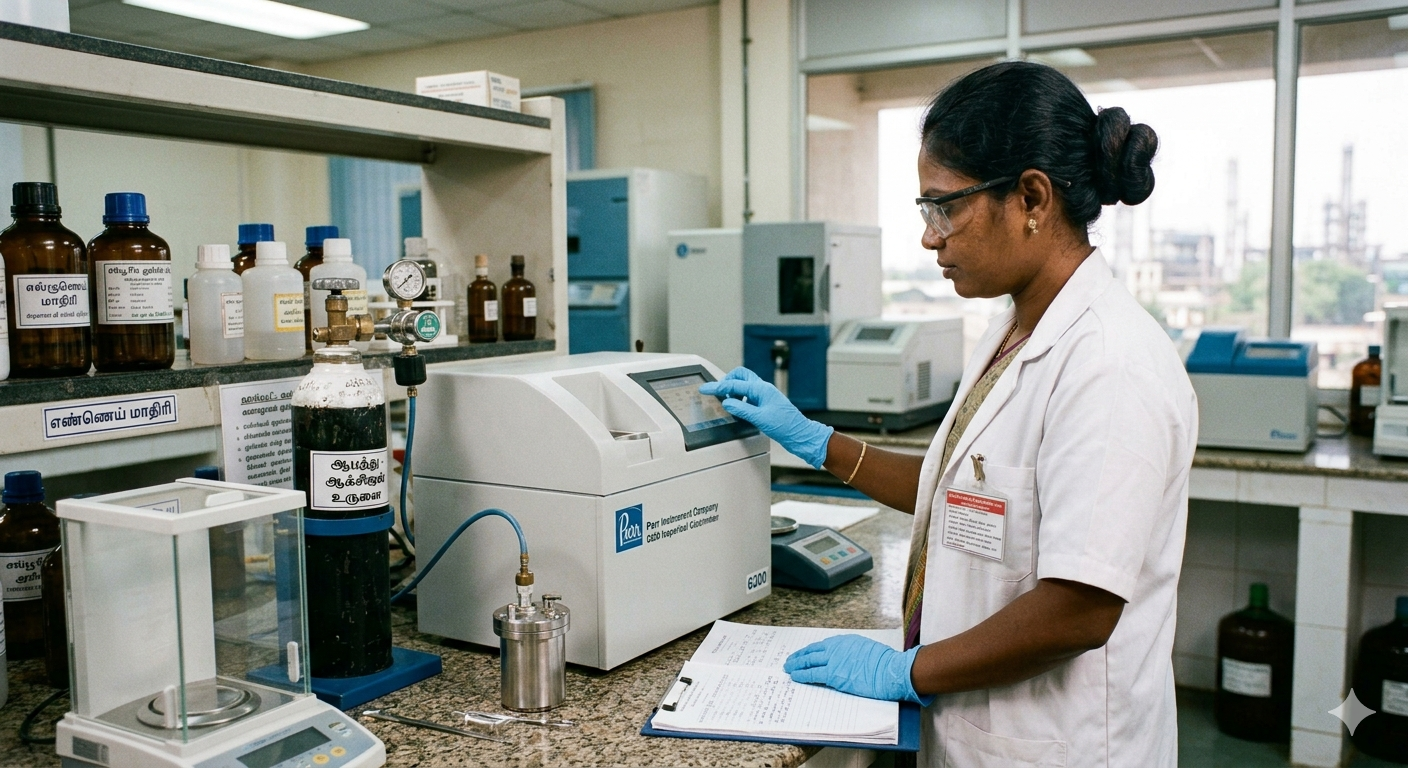

Calorific Value / Bomb Calorimeters
- Measures the absolute gross heat of combustion of liquid/solid fuels.
- Utilizes high-pressure oxygen combustion within a submerged vessel.
- Determines exact energy yield for coal, fuel oil, and biomass pricing.
- Highly automated water jacketing ensures precise thermal stability.
Access Catalog

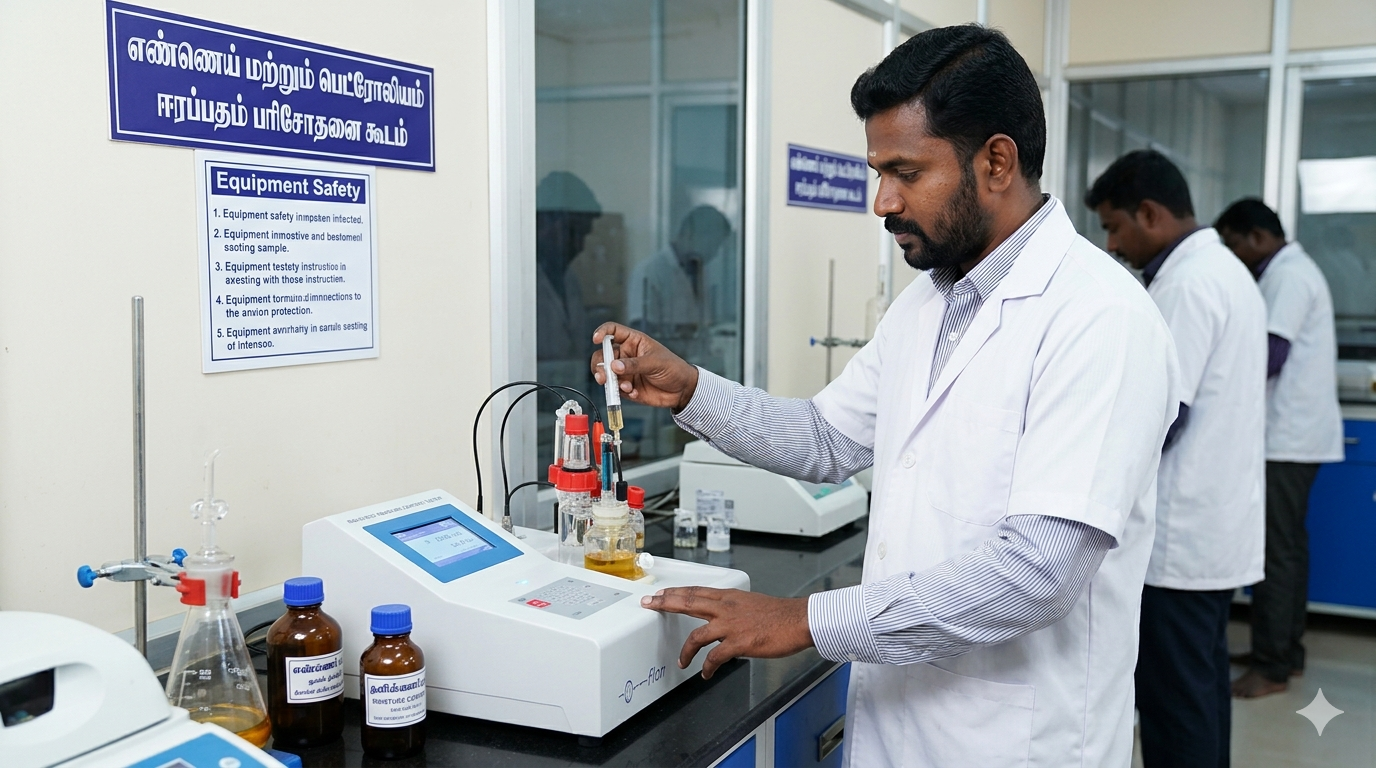

Moisture Content Testers
- Karl Fischer coulometric titrators for trace (ppm) water detection.
- Prevents oxidation, corrosion, and biological growth in fuels.
- Crucial for validating aviation jet fuel and high-grade lubricants.
- Highly specific to water, unaffected by other volatile compounds.
Access Catalog

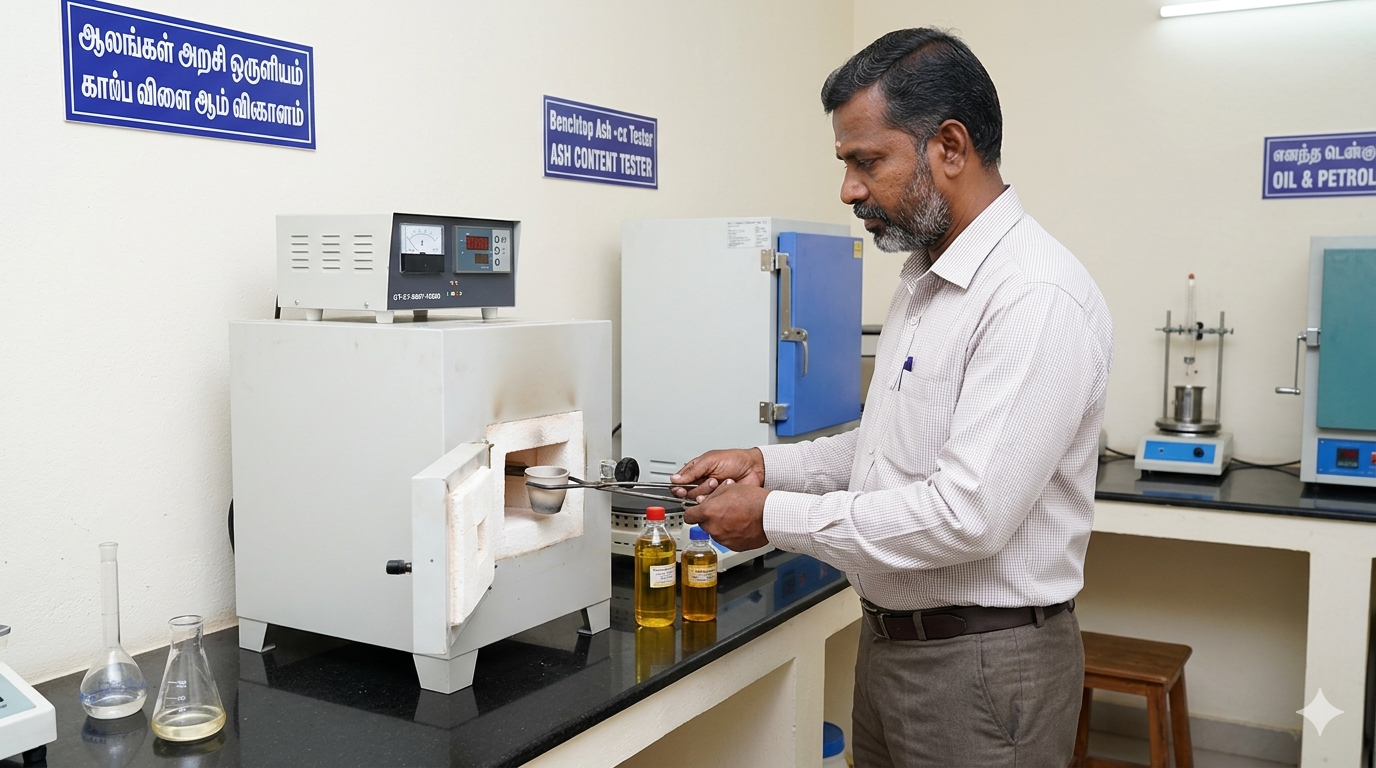

Ash Content Testers
- Muffle furnaces incinerating samples to determine inorganic residue.
- Identifies metallic contaminants, catalyst fines, and dirt in heavy oils.
- Programmable multi-step heating profiles up to 1200°C.
- Crucial for grading bunker fuel and lubricating oil purity.
Access Catalog

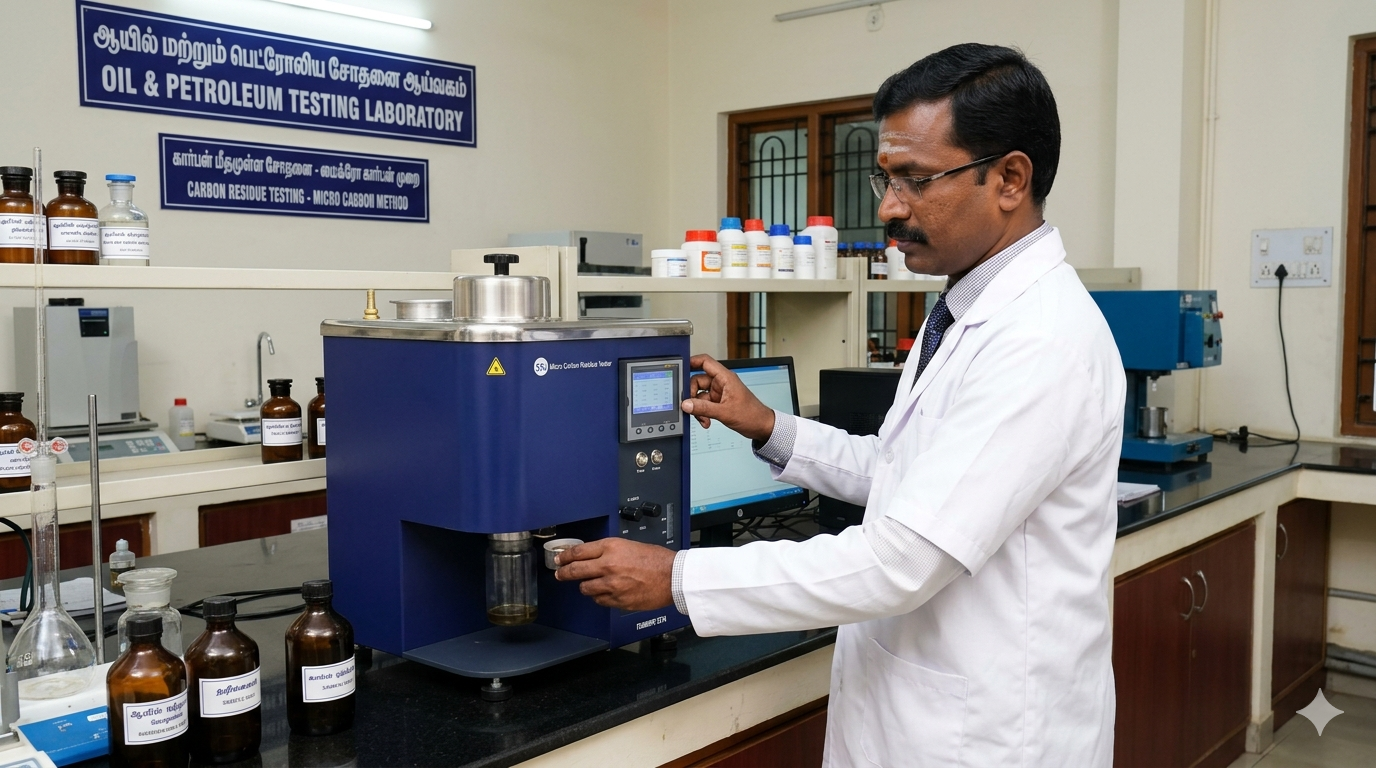

Carbon Residue Testers
- Micro-Carbon (MCRT) and Conradson residue apparatus.
- Indicates the coke-forming tendencies of oils under thermal degradation.
- Predicts fouling in burner nozzles, pistons, and refinery catalysts.
- Automated nitrogen gas purging ensures controlled pyrolysis.
Access Catalog

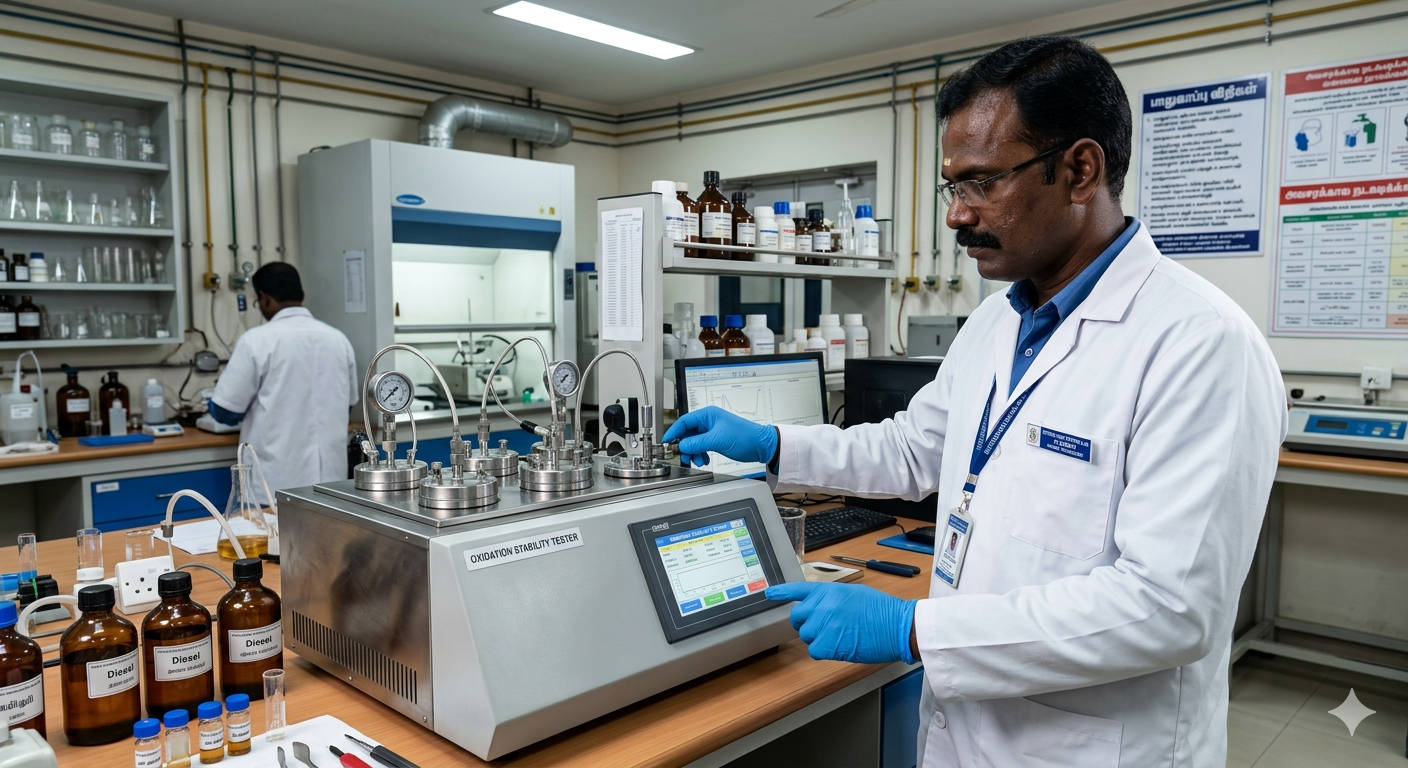

Oxidation Stability Testers
- Accelerates aging using heat and oxygen pressure (e.g., RPVOT/TOST).
- Predicts the long-term storage life of biodiesels and turbine oils.
- Tracks the pressure drop indicating oxygen consumption and breakdown.
- Vital for ensuring emergency generator fuel readiness.
Access Catalog

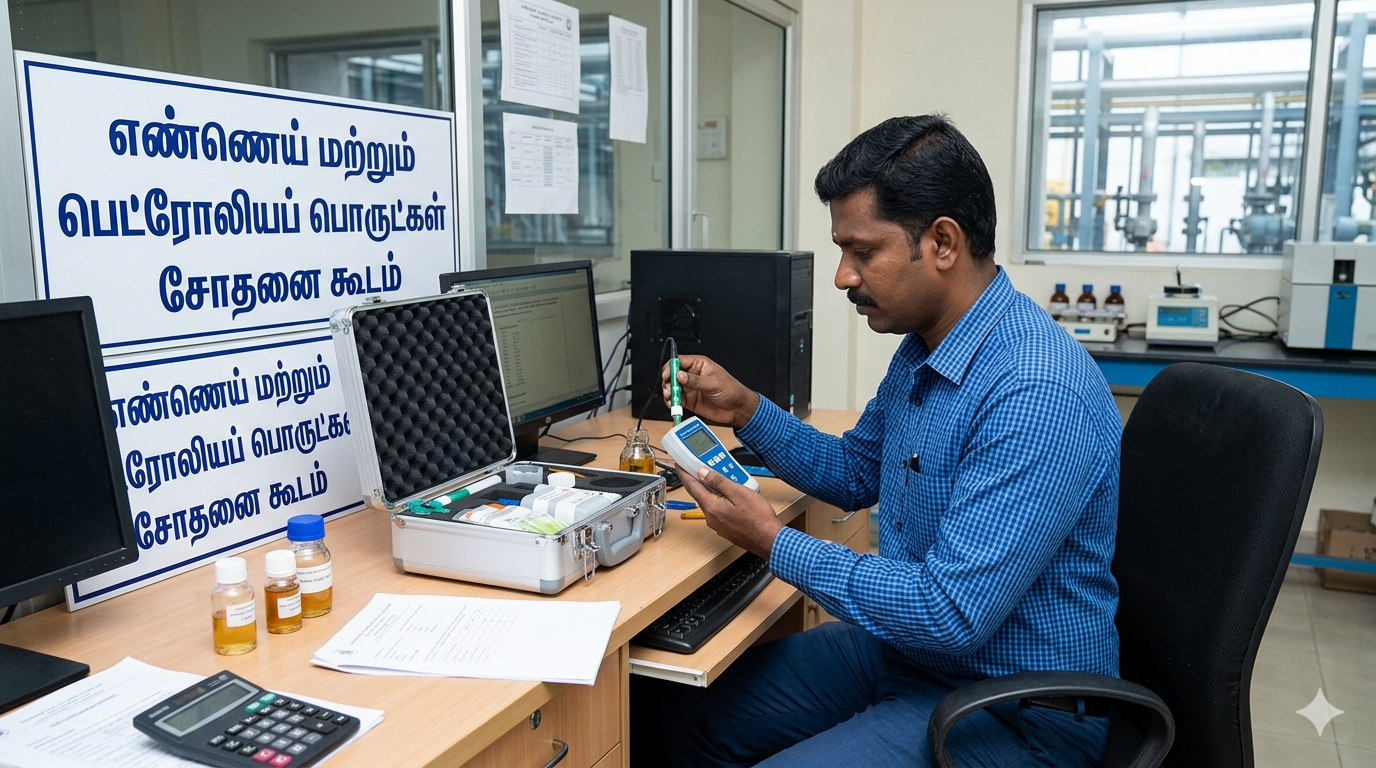

Water in Oil Analyzers
- In-line sensors and portable test kits for rapid free water detection.
- Prevents catastrophic bearing failures in marine and heavy machinery.
- Monitors the efficiency of centrifugal fuel purifiers.
- Utilizes capacitance or chemical reaction (calcium hydride) methods.
Access Catalog

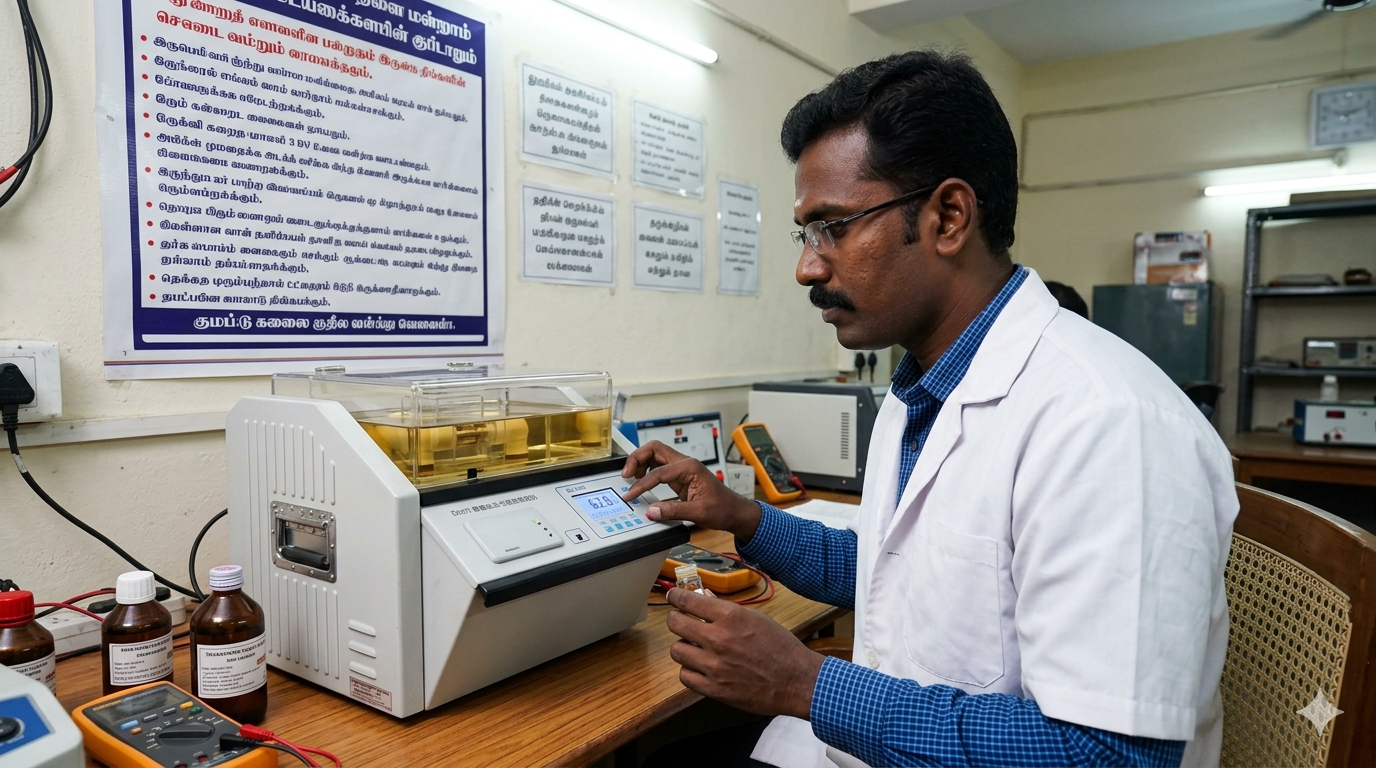

Dielectric Strength (BDV)
- Measures the breakdown voltage of insulating transformer oils.
- Applies ramping high voltage (up to 100kV) until a spark arcs.
- Detects moisture, dirt, and cellulosic fibers suspended in oil.
- Fully automated testing sequences per IEC and ASTM standards.
Access Catalog

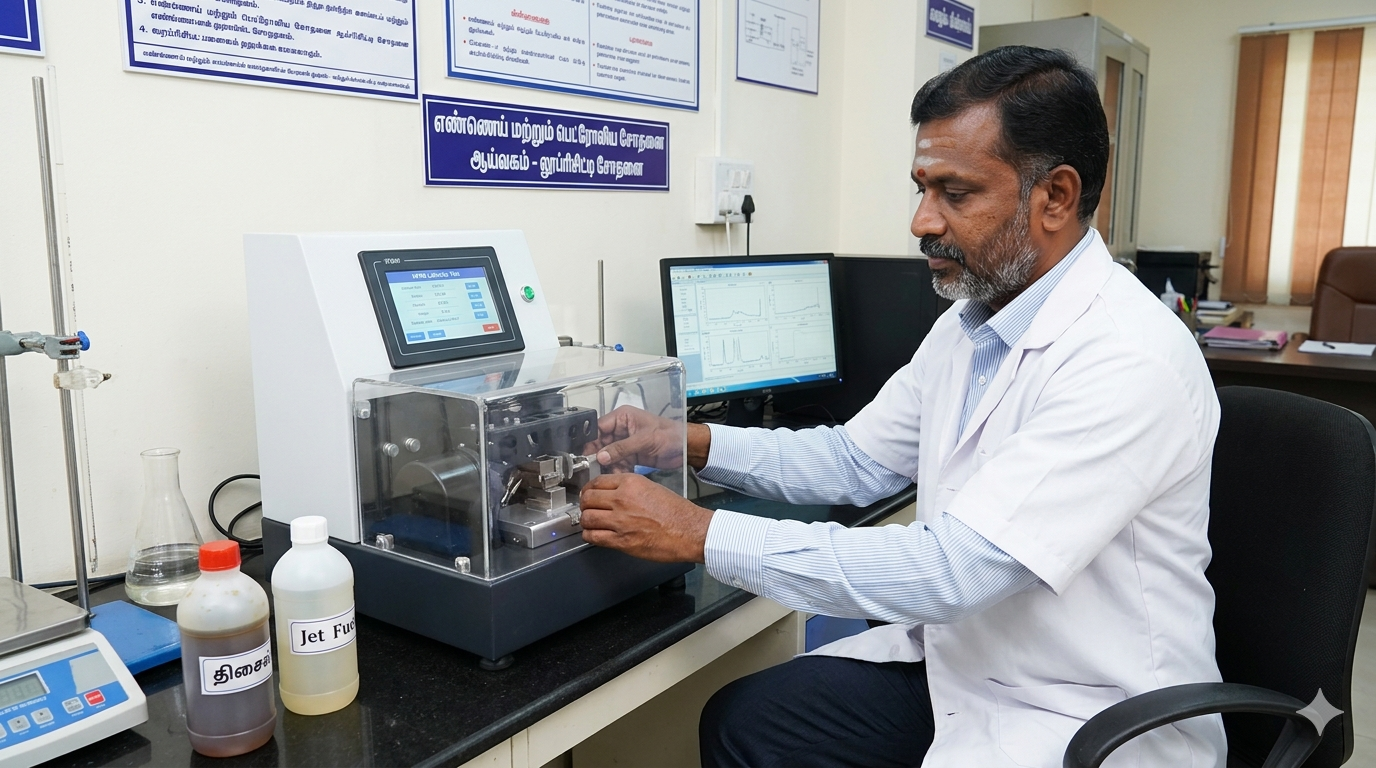

Lubricity Testing Instruments
- High-Frequency Reciprocating Rig (HFRR) apparatus.
- Evaluates the wear-preventing properties of diesel and aviation fuels.
- Analyzes the wear scar diameter generated under strict friction loads.
- Critical for testing ultra-low sulfur fuels lacking natural lubricity.
Access Catalog

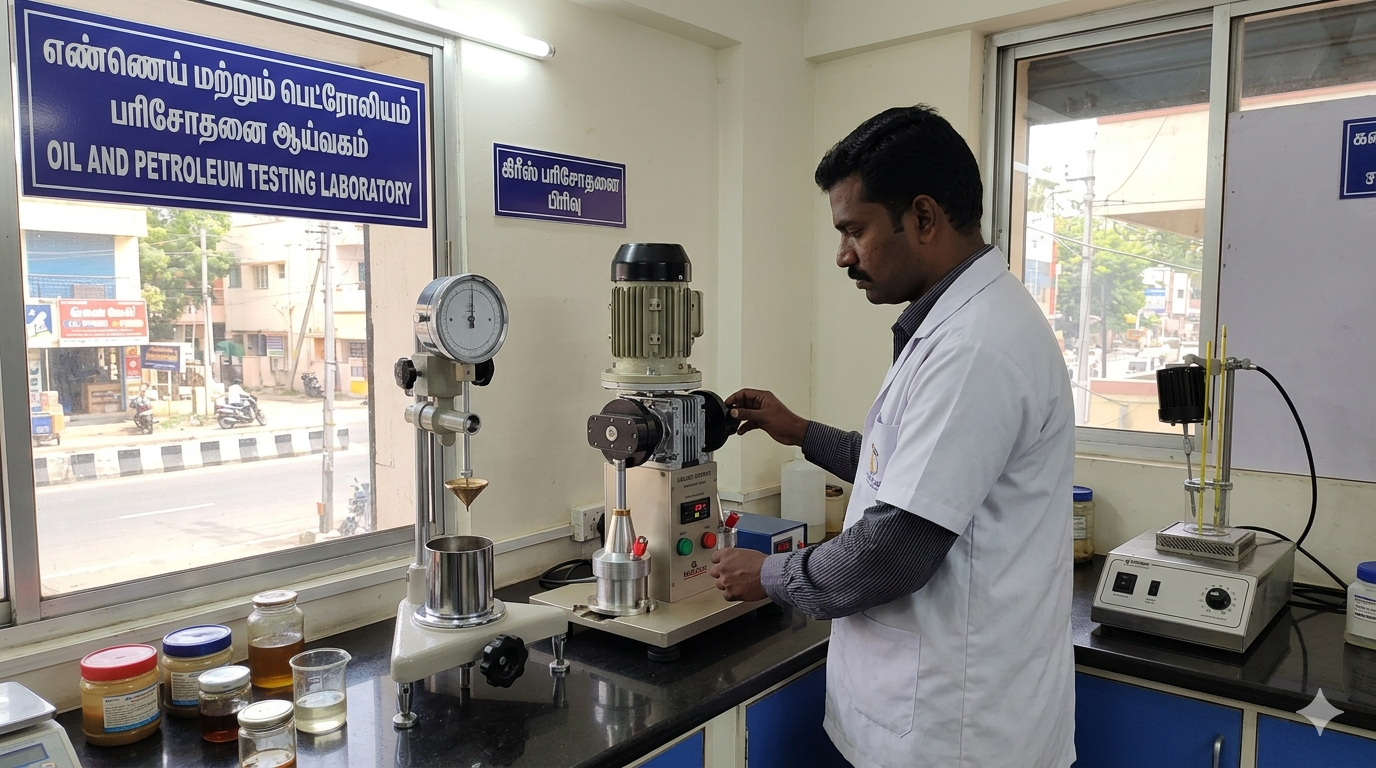

Grease Testing Instruments
- Cone penetration penetrometers for determining NLGI consistency.
- Dropping point apparatus to find the temperature of transition to liquid.
- Four-ball wear testers for extreme pressure (EP) additive performance.
- Ensures grease remains viable in heavy industrial bearings.
Access Catalog

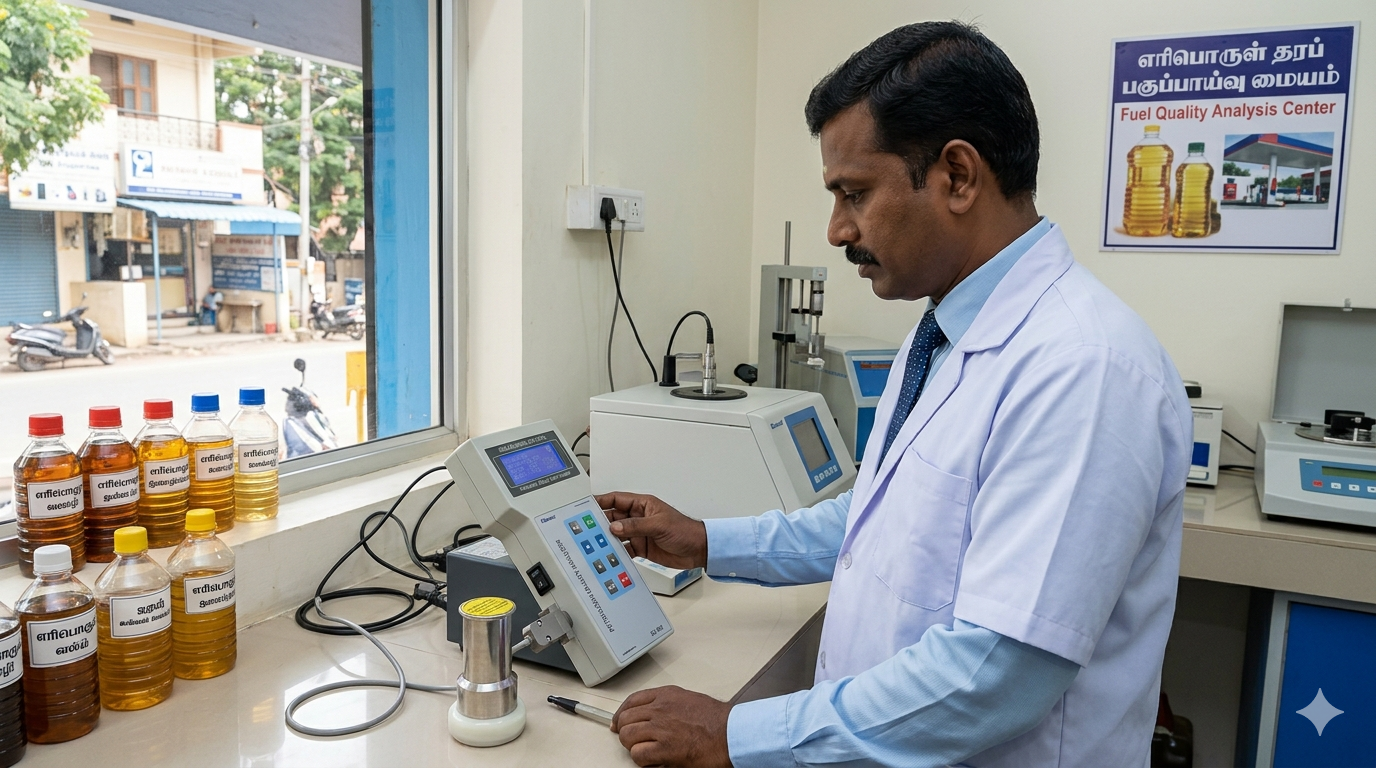

Fuel Quality Analyzers
- Multi-parameter FTIR analyzers for rapid, comprehensive fuel grading.
- Simultaneously outputs FAME %, Aromatics, Benzene, and density.
- Portable solutions for customs borders and mobile blending labs.
- Drastically reduces required lab footprint and turnaround time.
Access Catalog

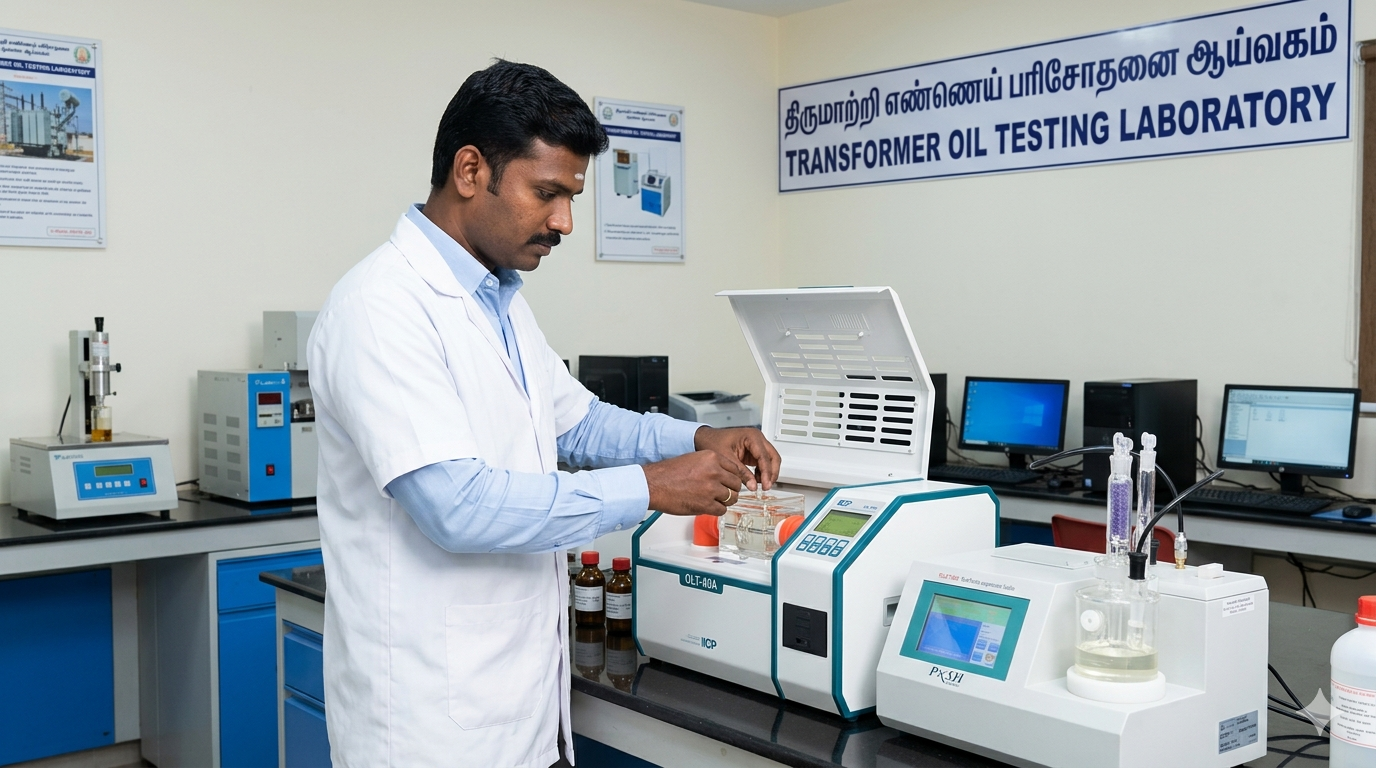

Transformer Oil Instruments
- Dissolved Gas Analyzers (DGA) for predicting imminent arcing faults.
- Interfacial tension and power factor (Tan Delta) meters.
- Comprehensive diagnostic suite for high-voltage substation maintenance.
- Prevents catastrophic and highly dangerous transformer explosions.
Access Catalog
No Categories Found
Try adjusting your search terminology.
Petrochemical Analysis Protocol
Strict adherence to standardized ASTM, ISO, and IP methodologies is non-negotiable in the petroleum sector. Instrument precision directly impacts refinery yields, transport safety compliance, and global commodity pricing.
Volatility & Fire Safety
Flash Point / DistillationVolatility testing determines the evaporation rate and ignition threshold of hydrocarbons. This governs everything from the safety classification of shipping containers to the starting performance of gasoline engines in cold weather.
Rheology & Flow Dynamics
Viscosity / Pour PointViscosity dictates the energy required to pump crude through pipelines and the protective film strength of lubricants inside engines. Pour point testing ensures that fuels will not gel and clog filters in sub-zero operational environments.
Contamination & Purity
Sulfur / Ash / MoistureTrace elements drastically alter fuel quality. High sulfur causes acid rain and destroys catalytic converters. Inorganic ash and water cause severe internal engine abrasion, cavitation, and catastrophic injector nozzle failure.
Dielectric Diagnostics
BDV / DGA TestingIn high-voltage transformers, oil serves as both a coolant and an insulator. Monitoring its dielectric strength (BDV) and tracking dissolved fault gases (DGA) is the primary method for predicting and preventing multi-million dollar electrical grid failures.
ASTM Testing Parameter Matrix
| Analytical Parameter | Primary Standard | Industrial Consequence |
|---|---|---|
| Flash Point (Closed Cup) | ASTM D93 | Determines shipping hazard class and detects volatile contamination. |
| Kinematic Viscosity | ASTM D445 | Grades lubricant weight (e.g., 5W-30) and pipeline pumping requirements. |
| Water Content (Karl Fischer) | ASTM D6304 | Prevents corrosion and biological microbial growth in storage tanks. |
| Sulfur Content (XRF) | ASTM D4294 | Ensures compliance with EPA Ultra-Low Sulfur Diesel (ULSD) limits. |
| Cloud & Pour Point | ASTM D2500 / D97 | Validates winter-grade diesel and aviation jet fuel cold-flow properties. |
| Dielectric Strength (BDV) | ASTM D877 / IEC 60156 | Assesses the insulating integrity of critical substation transformer oils. |
