Display Technology & Character Format
LED, LCD, numeric, alphanumeric, and multi-parameter jumbo indicator systems.

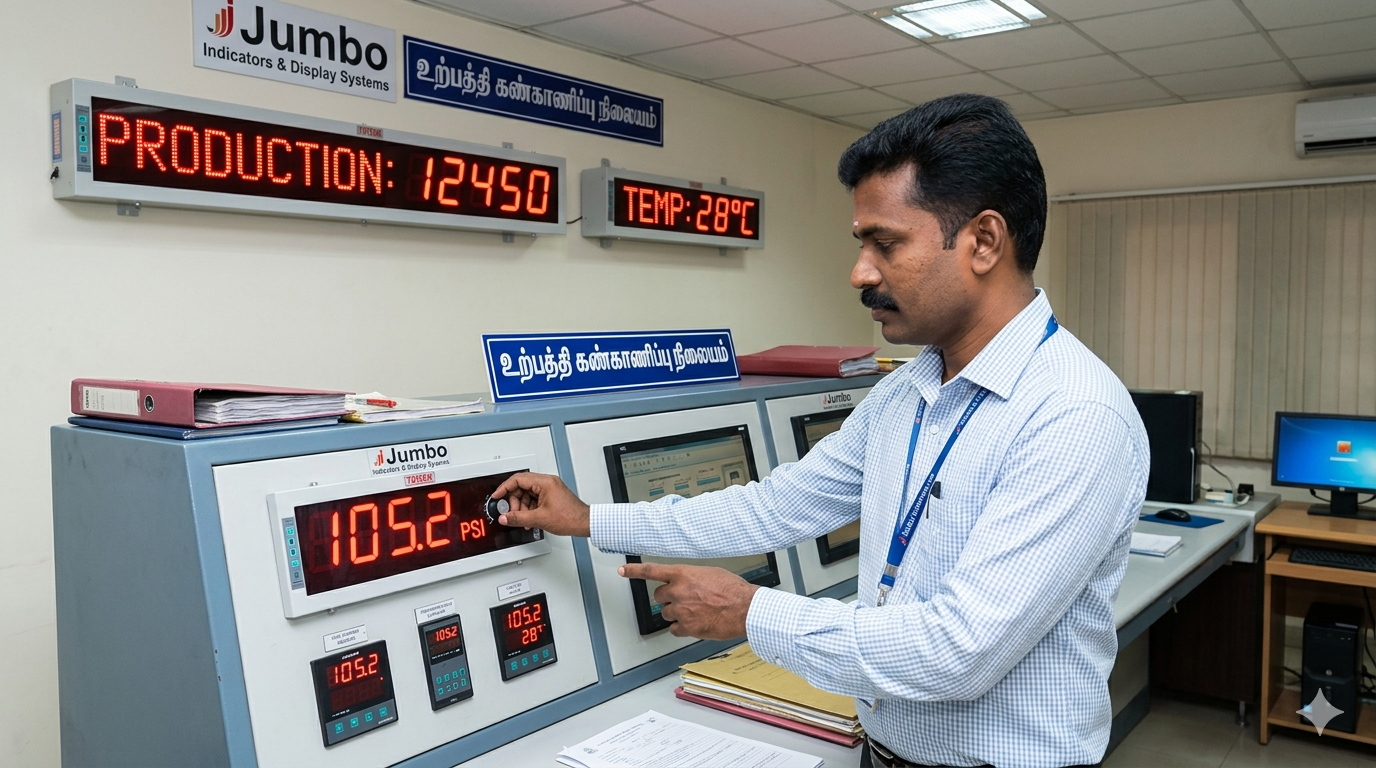

LED Jumbo Indicators
- Ultra-bright Light Emitting Diode displays visible from over 100 feet away.
- Available in distinct colors (Red, Green, Amber) for instant status recognition.
- Perfect for dark indoor factory floors or long warehouse aisles.
Access Catalog

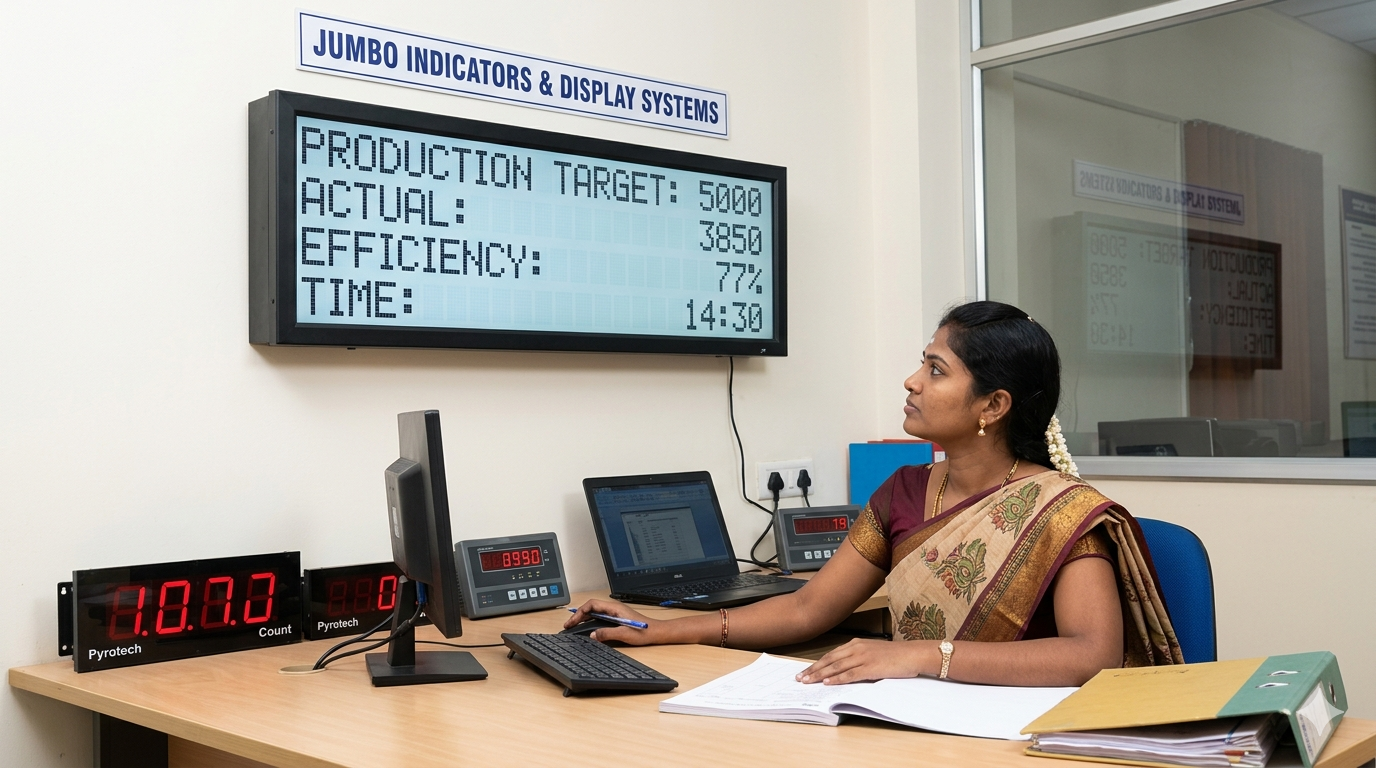

LCD Jumbo Indicators
- Liquid Crystal Displays offering high contrast in bright, sunlit areas.
- Significantly lower power consumption compared to large LED matrices.
- Capable of rendering complex graphical interfaces alongside numeric data.
Access Catalog

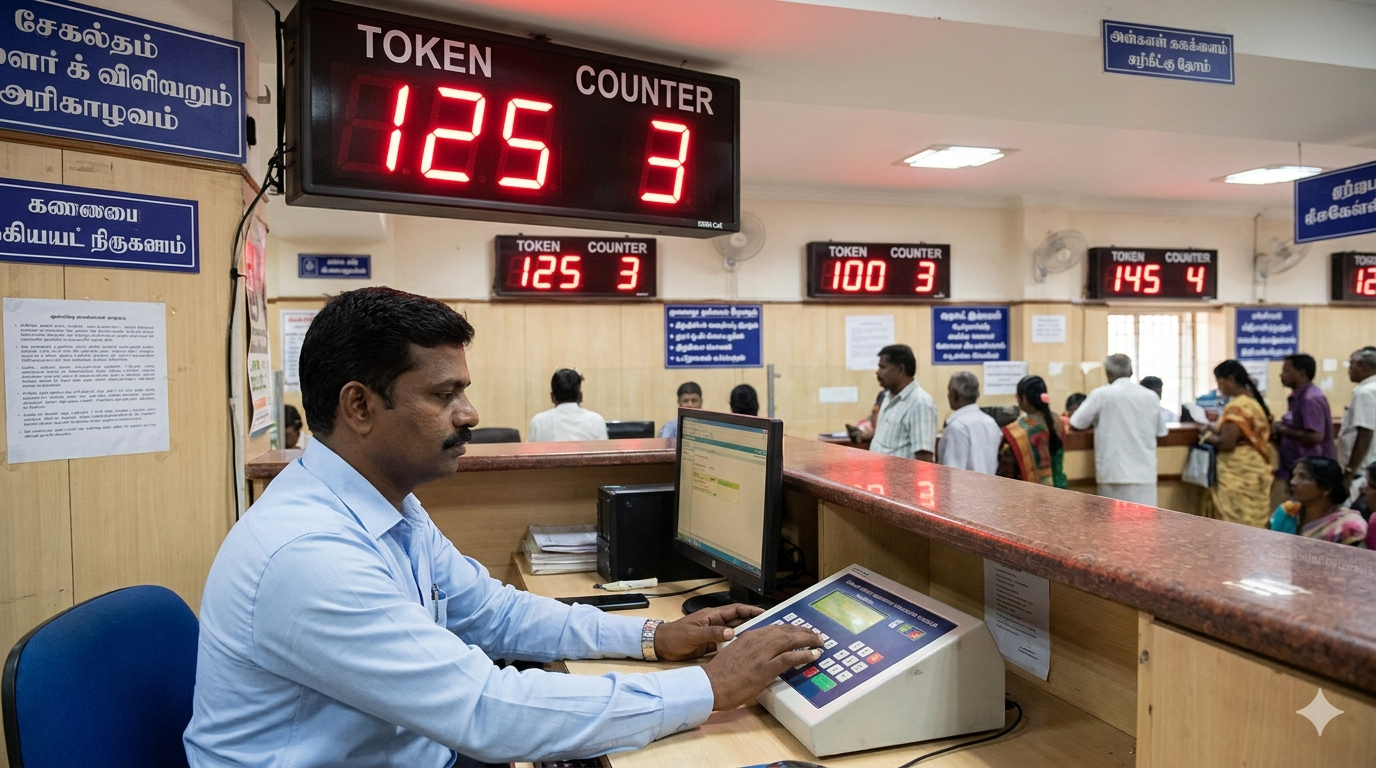

Numeric Display Indicators
- Classic 7-segment design utilizing massive digits (up to 8+ inches tall).
- Exclusively designed to broadcast raw, critical numerical values.
- The industry standard for weighbridges, scoreboards, and RPM counters.
Access Catalog

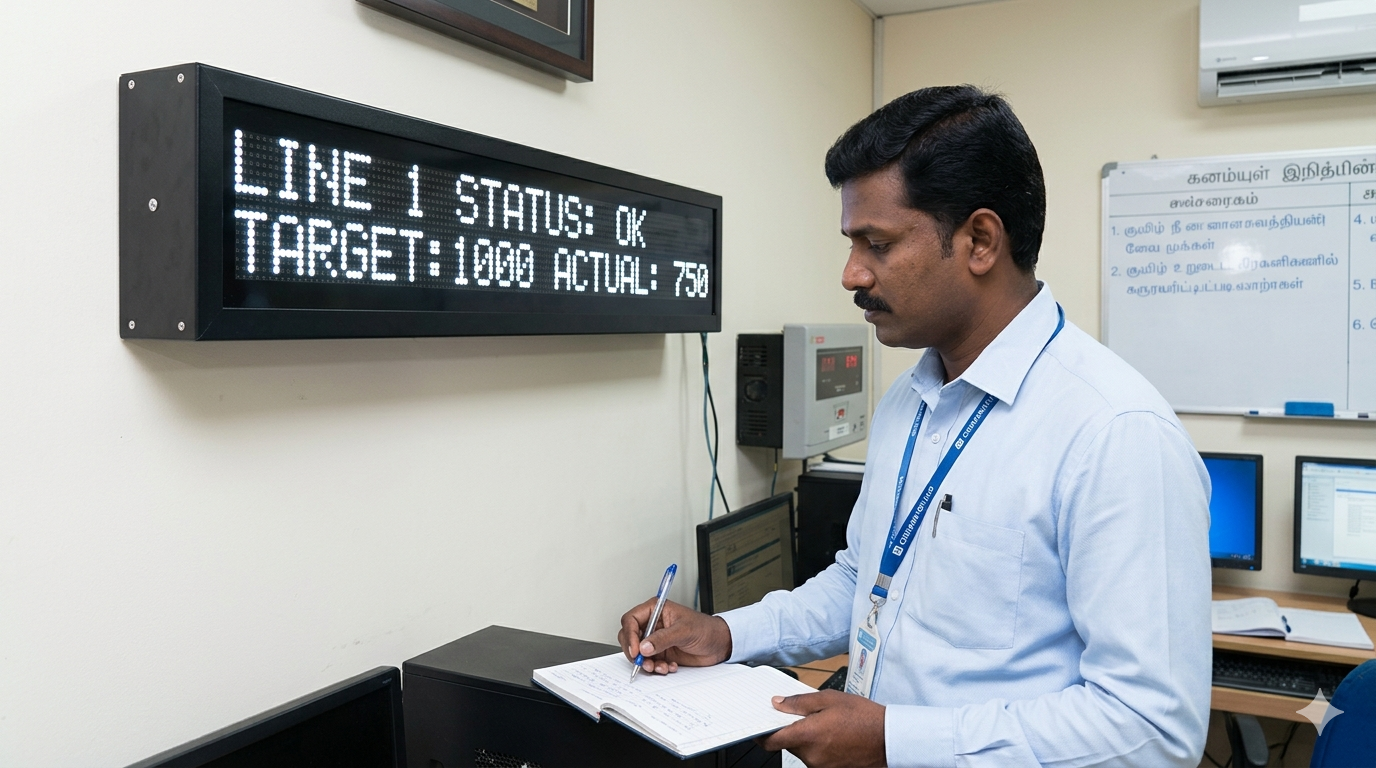

Alphanumeric Indicators
- Utilizes a 14-segment or dot-matrix layout to display both letters and numbers.
- Crucial for broadcasting specific error codes, machine status, or shifting parameters.
- Enables scrolling text (marquee) for longer factory floor announcements.
Access Catalog

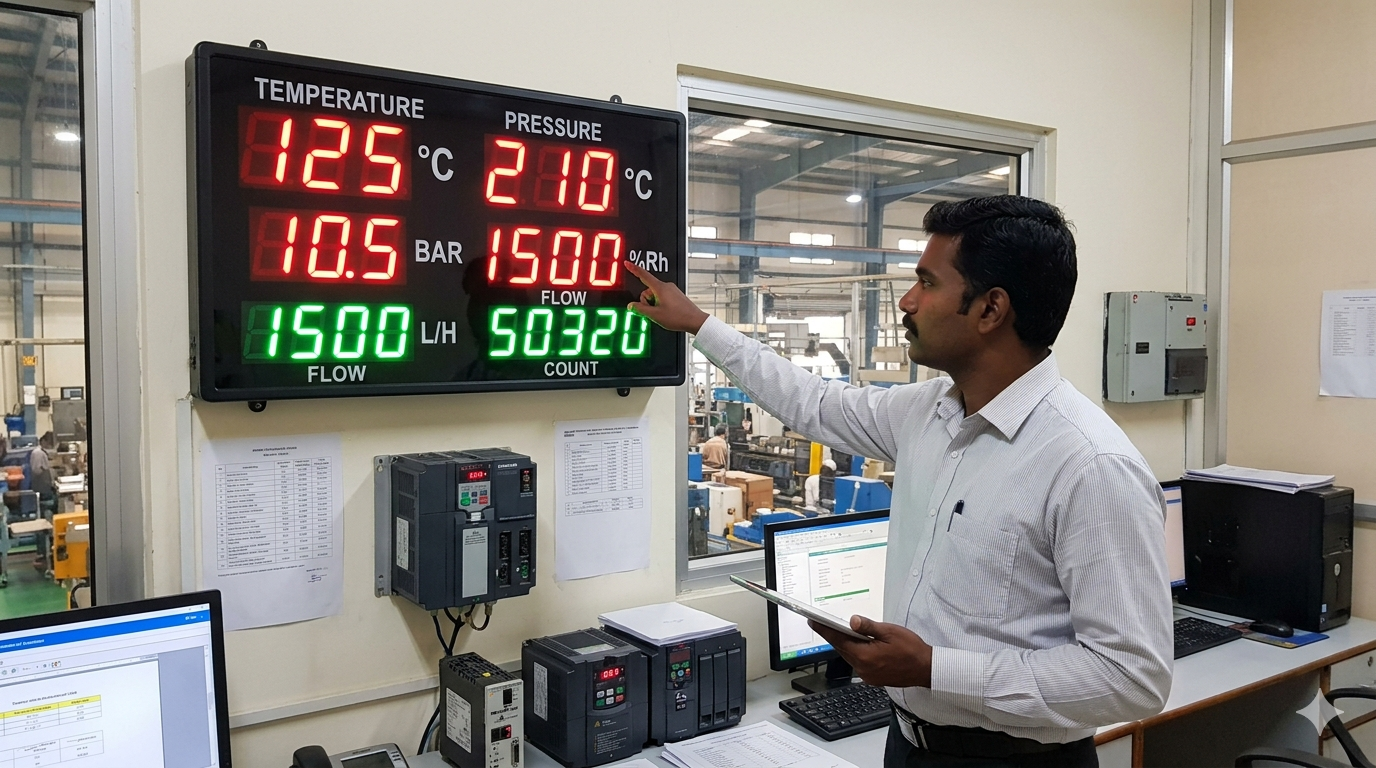

Multi-Parameter Indicators
- Massive boards split into distinct zones to track multiple inputs simultaneously.
- Monitor Temperature, Humidity, and Flow Rate on a single unified screen.
- Reduces wall clutter and centralizes process data for rapid human interpretation.
Access Catalog
Process Measurement & Production Displays
Large-format displays for weight, load, temperature, pressure, process values, and production boards.

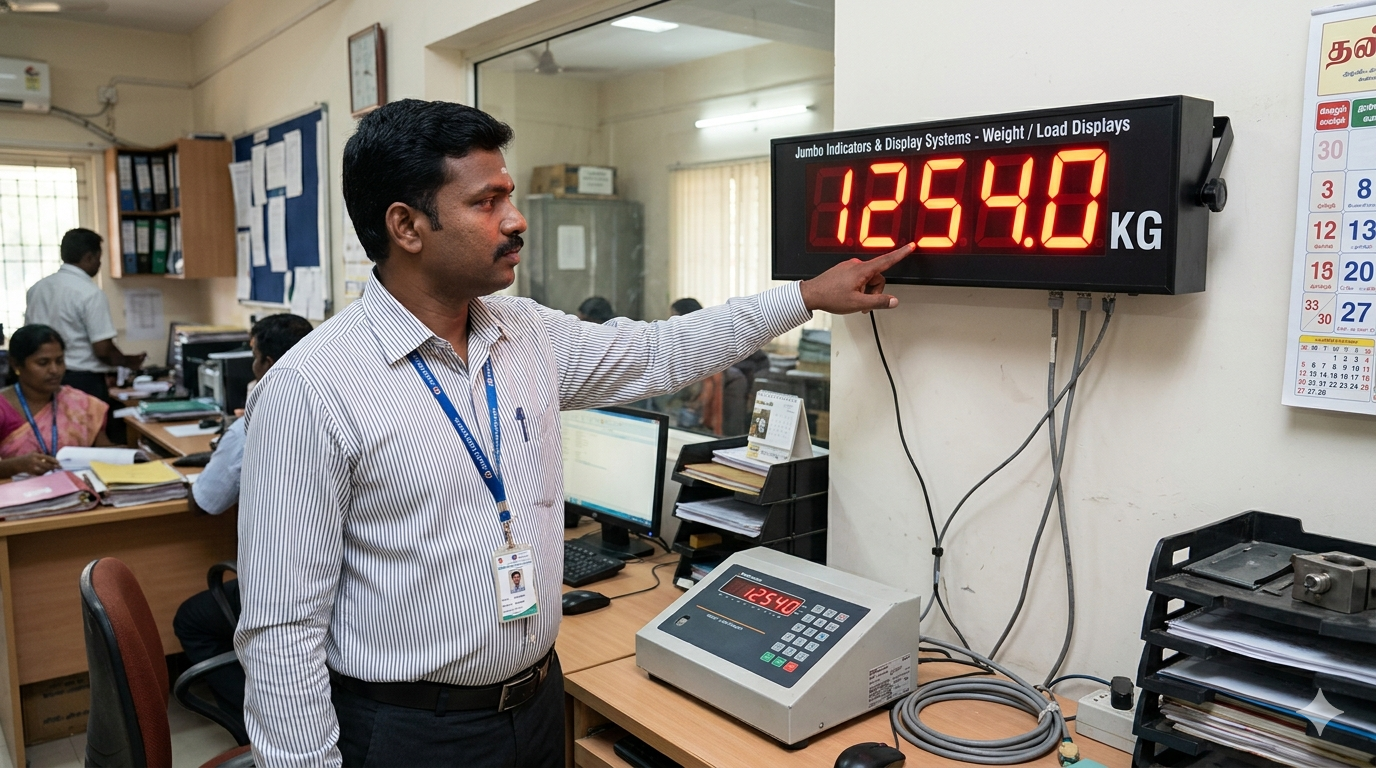

Weight / Load Displays
- Hardwired directly to massive silo load cells and truck weighbridges.
- Allows crane operators and truck drivers to verify loads from inside the cabin.
- Often features a secondary "Tare" or "Gross" smaller numeric readout.
Access Catalog

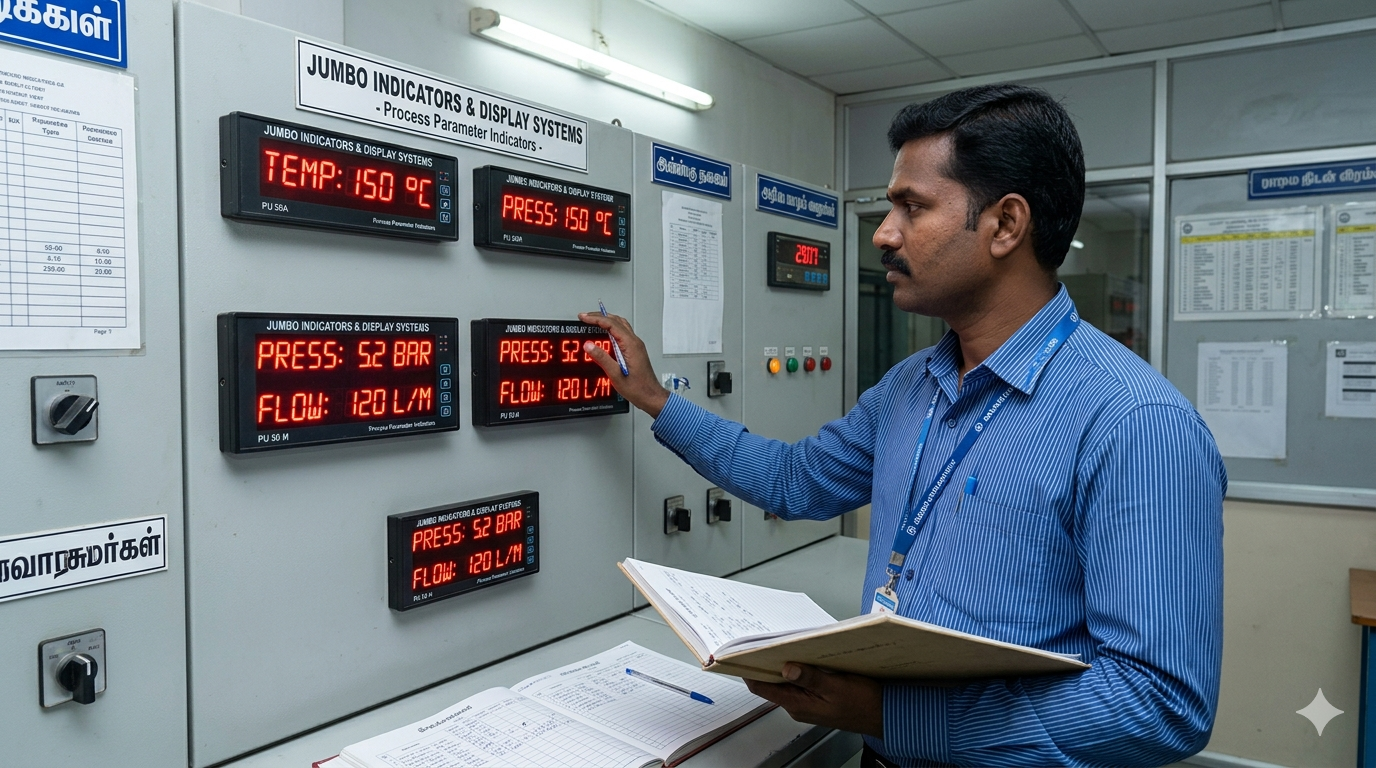

Process Parameter Indicators
- Accepts standard universal inputs (4-20mA, 0-10V) from any industrial transmitter.
- Scaleable via front-panel keys to display RPM, Flow, Level, or Speed.
- The most versatile visualization tool for general SCADA integrations.
Access Catalog

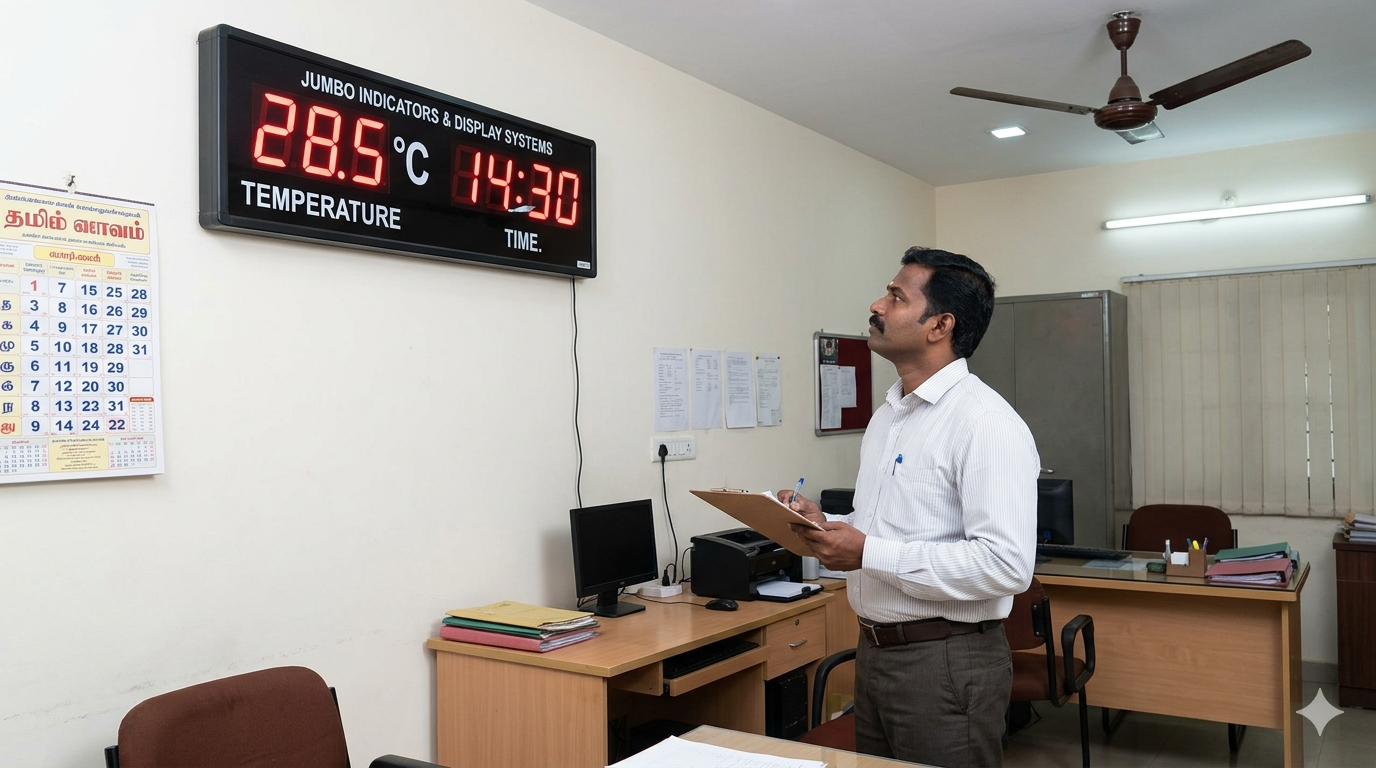

Temperature Displays
- Directly accepts RTD (Pt100) or Thermocouple (J, K, R, S) signals.
- Crucial for monitoring massive smelting furnaces, kilns, or cold-storage hubs.
- Often programmed to flash red when critical thermal limits are breached.
Access Catalog

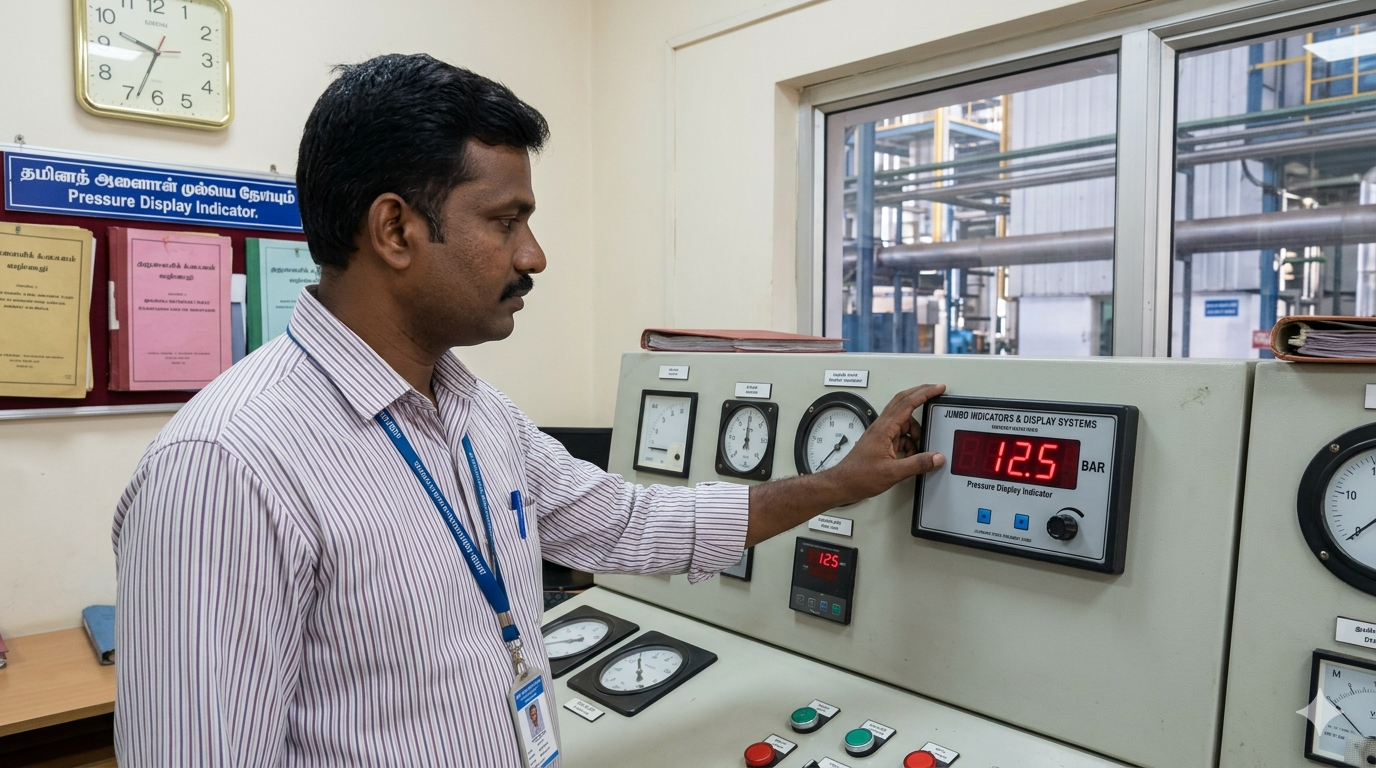

Pressure Display Indicators
- Displays massive hydraulic or pneumatic pressure readouts (Bar, PSI, Pascal).
- Allows engineers to safely monitor high-pressure steam lines from a distance.
- Prevents catastrophic blowouts by keeping pressure data in plain sight.
Access Catalog

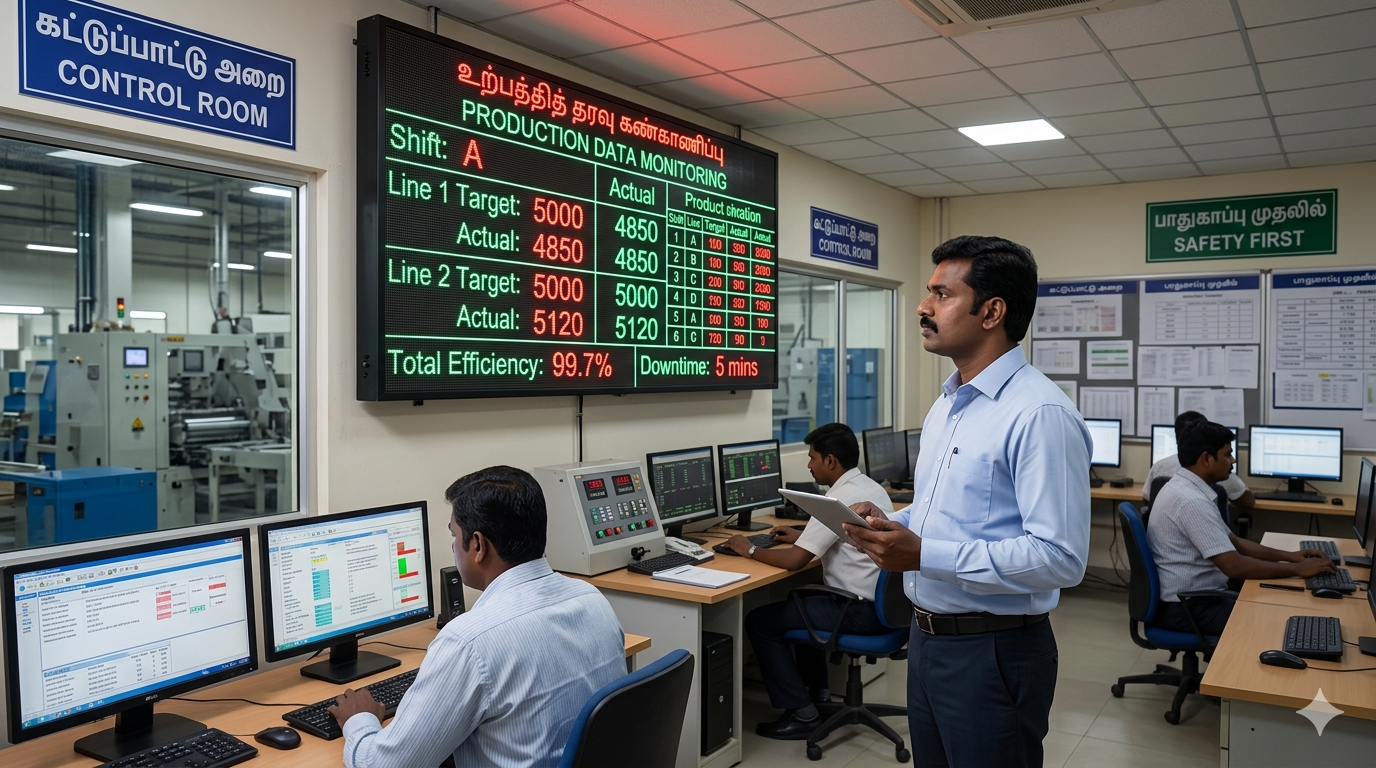

Production Display Boards
- Tracks "Target vs. Actual" manufacturing quotas in real-time.
- Used extensively in Lean Manufacturing and Six Sigma environments (Andon boards).
- Drives factory floor efficiency by making production pace highly visible.
Access Catalog
Connectivity, Mounting & Industrial Systems
Remote, wireless, panel-mount, wall-mount, outdoor, and integrated industrial display systems.

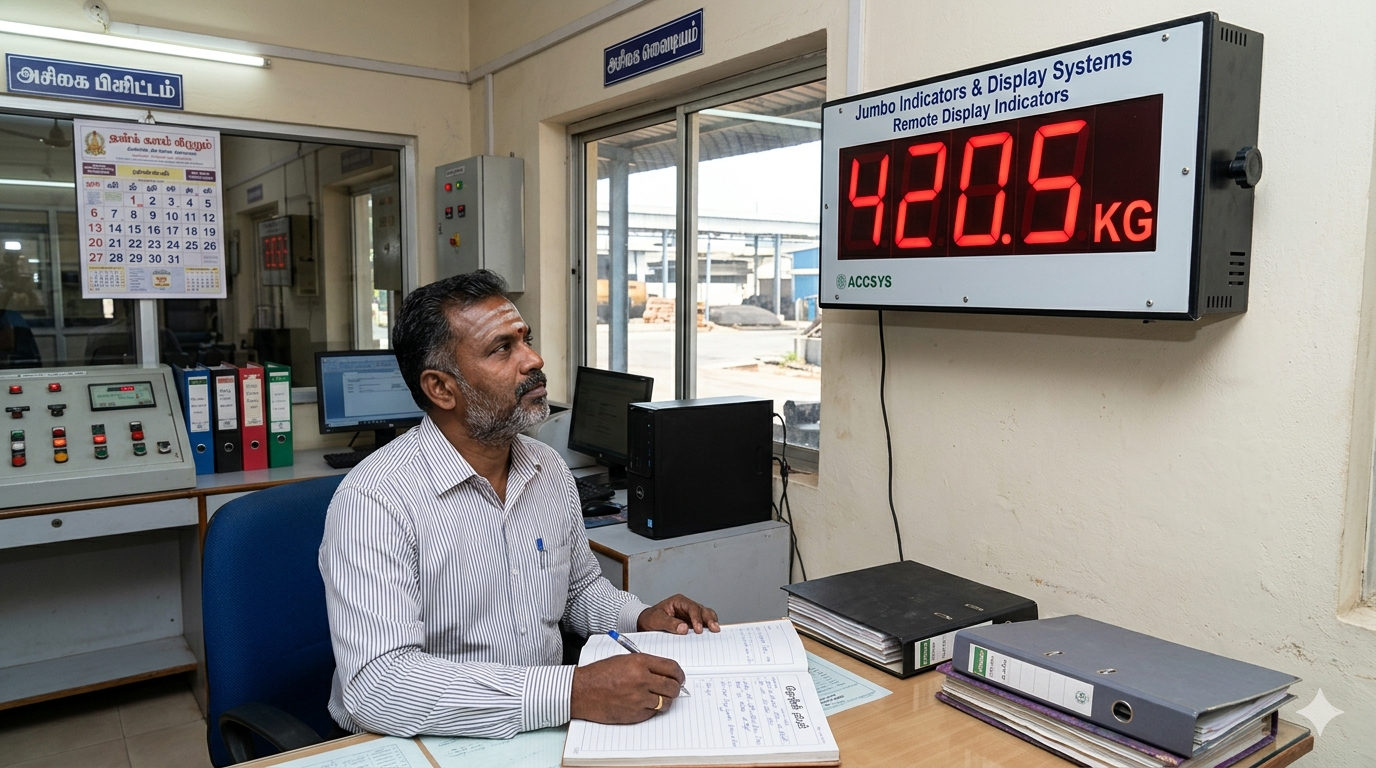

Remote Display Indicators
- Acts purely as a visual "slave" monitor receiving data from a "master" controller elsewhere.
- Utilizes RS-485 or Modbus RTU to mirror data across miles of cabling.
- Keeps sensitive control logic locked in the server room while displaying data on the floor.
Access Catalog

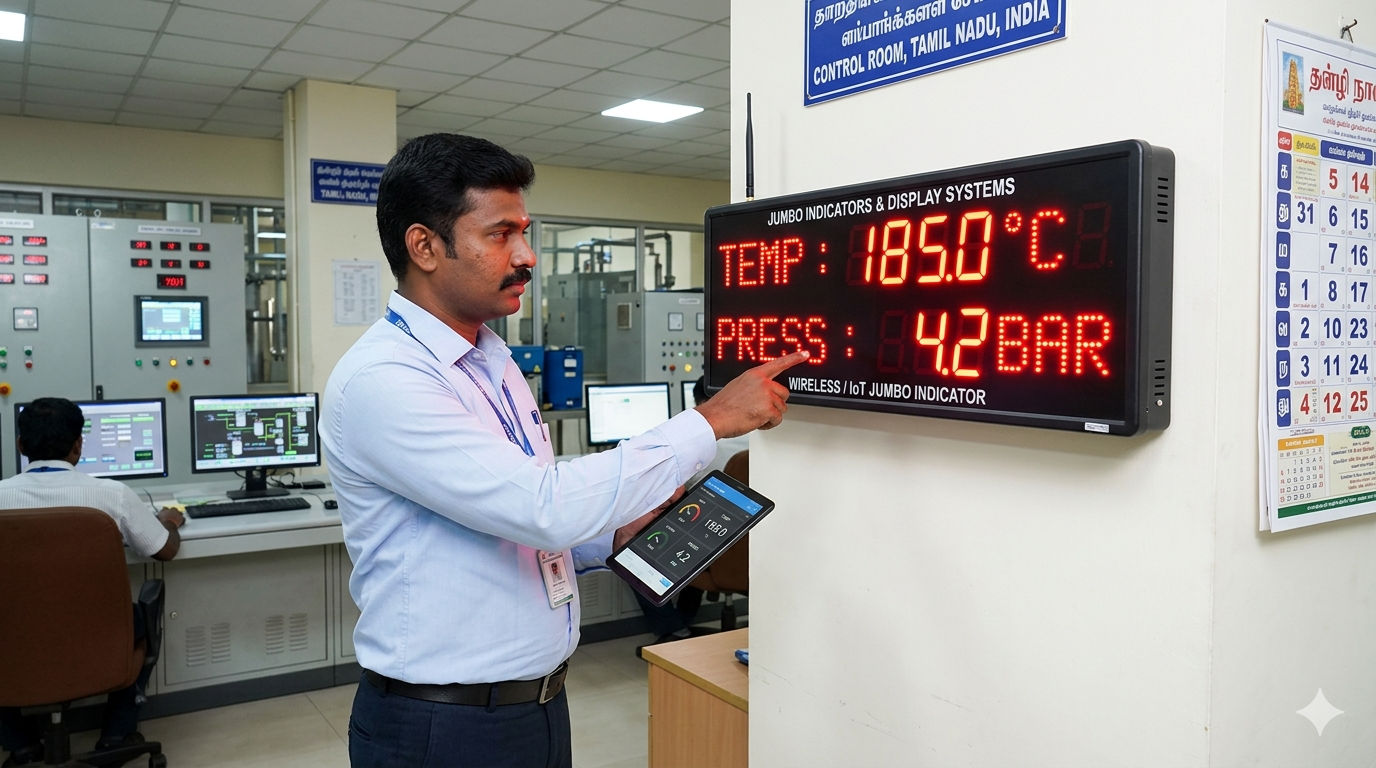

Wireless / IoT Jumbo Indicators
- Receives telemetry data entirely over Wi-Fi, LoRa, or Zigbee networks.
- Completely eliminates the massive cost and labor of running heavy data cables across a factory.
- Allows displays to be easily relocated as production lines shift.
Access Catalog

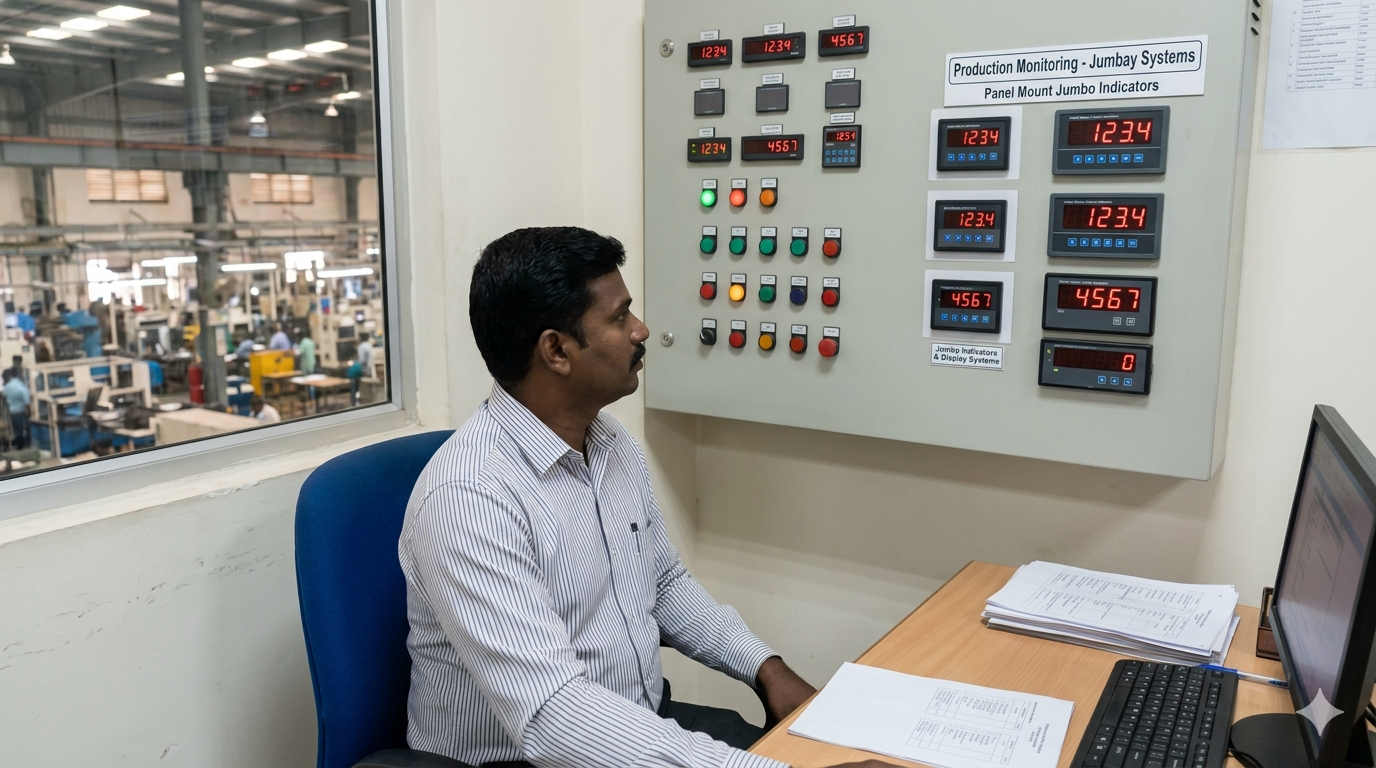

Panel Mount Jumbo Indicators
- Engineered to be flush-mounted into the doors of massive industrial control cabinets.
- Provides a sleek, integrated look while keeping the rear electronics protected inside the panel.
- Requires exact, pre-cut rectangular cutouts for secure installation.
Access Catalog

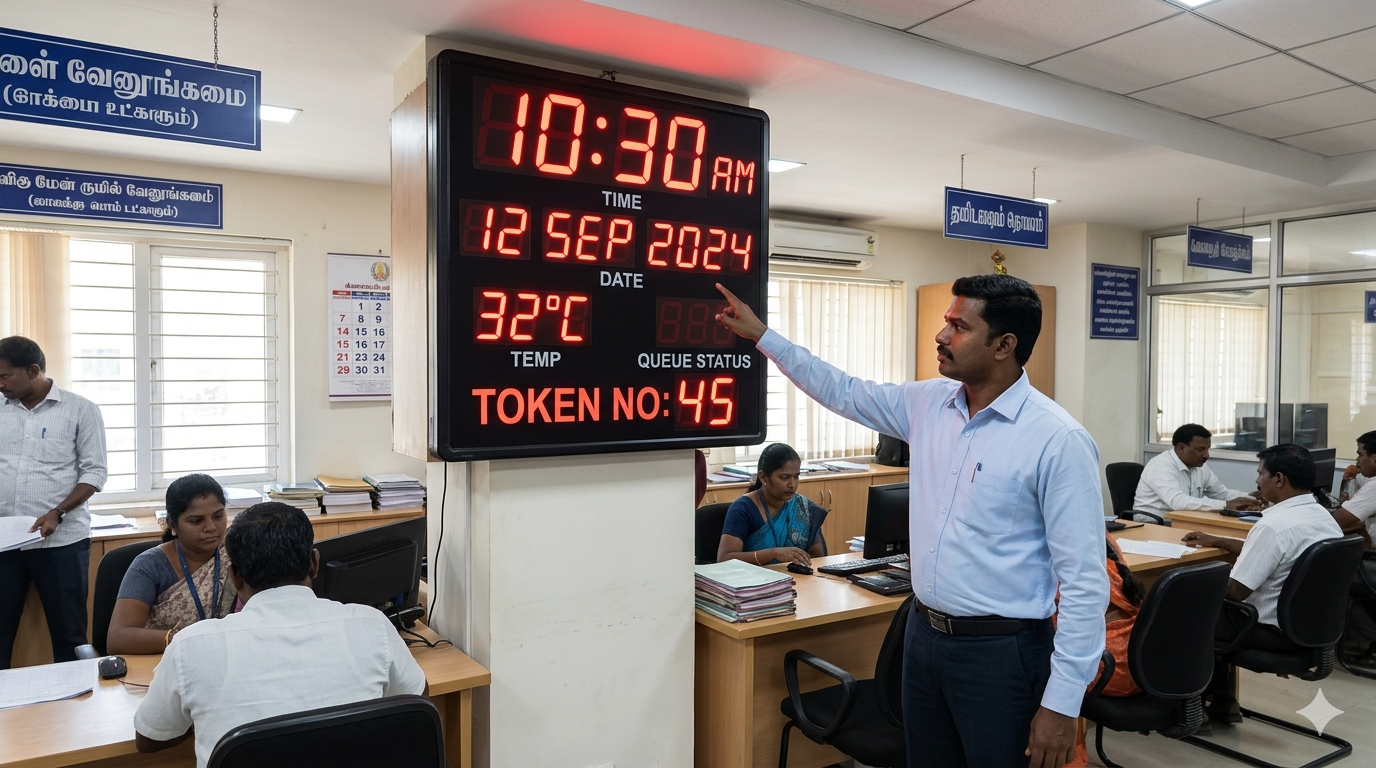

Wall Mount Jumbo Indicators
- Features robust rear mounting brackets for hanging directly onto structural pillars or walls.
- Self-contained enclosures requiring only power and data connections.
- The most common format for elevating visibility above heavy machinery.
Access Catalog

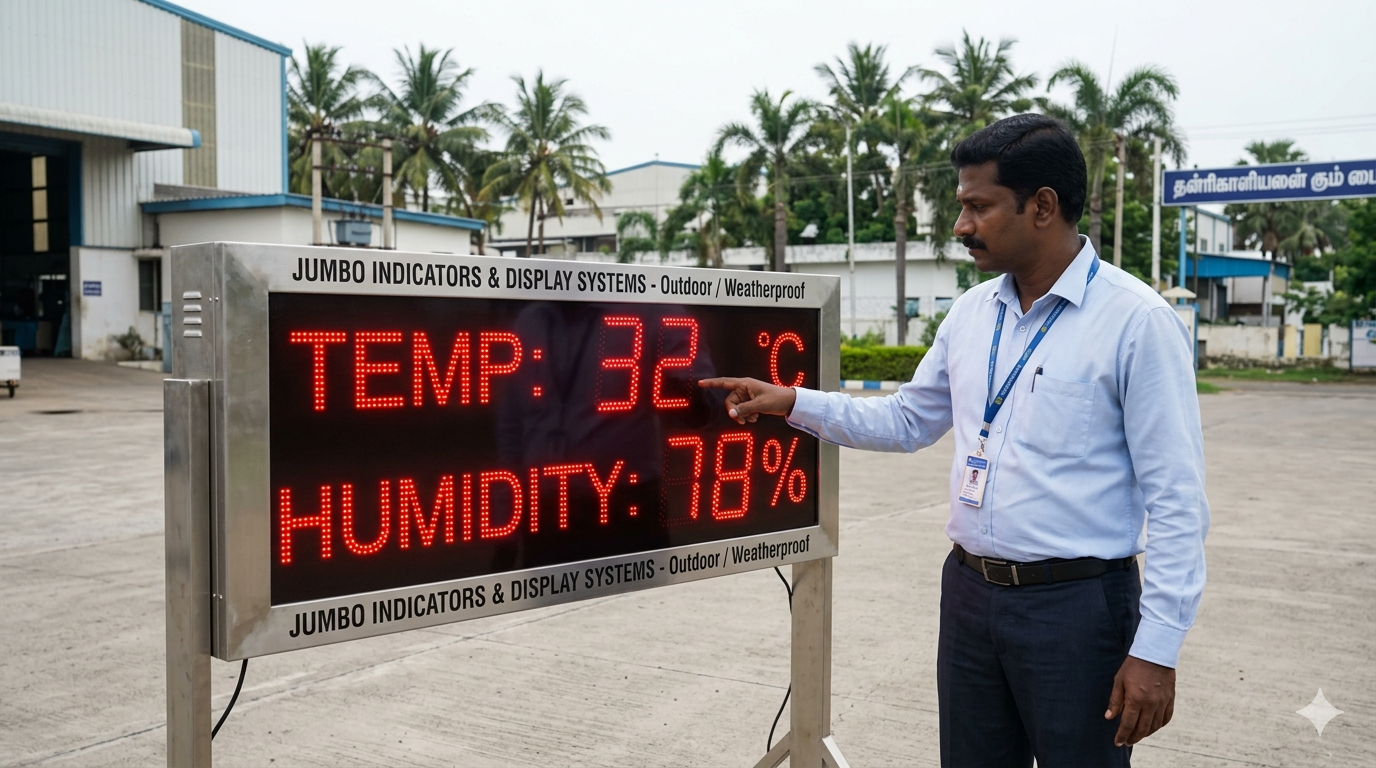

Outdoor / Weatherproof
- Sealed in rugged IP65+ or NEMA 4X enclosures to prevent water and dust ingress.
- Features ultra-high brightness LEDs specifically designed to battle direct sunlight glare.
- Mandatory for exterior weighbridges, shipping ports, and solar farm monitoring.
Access Catalog

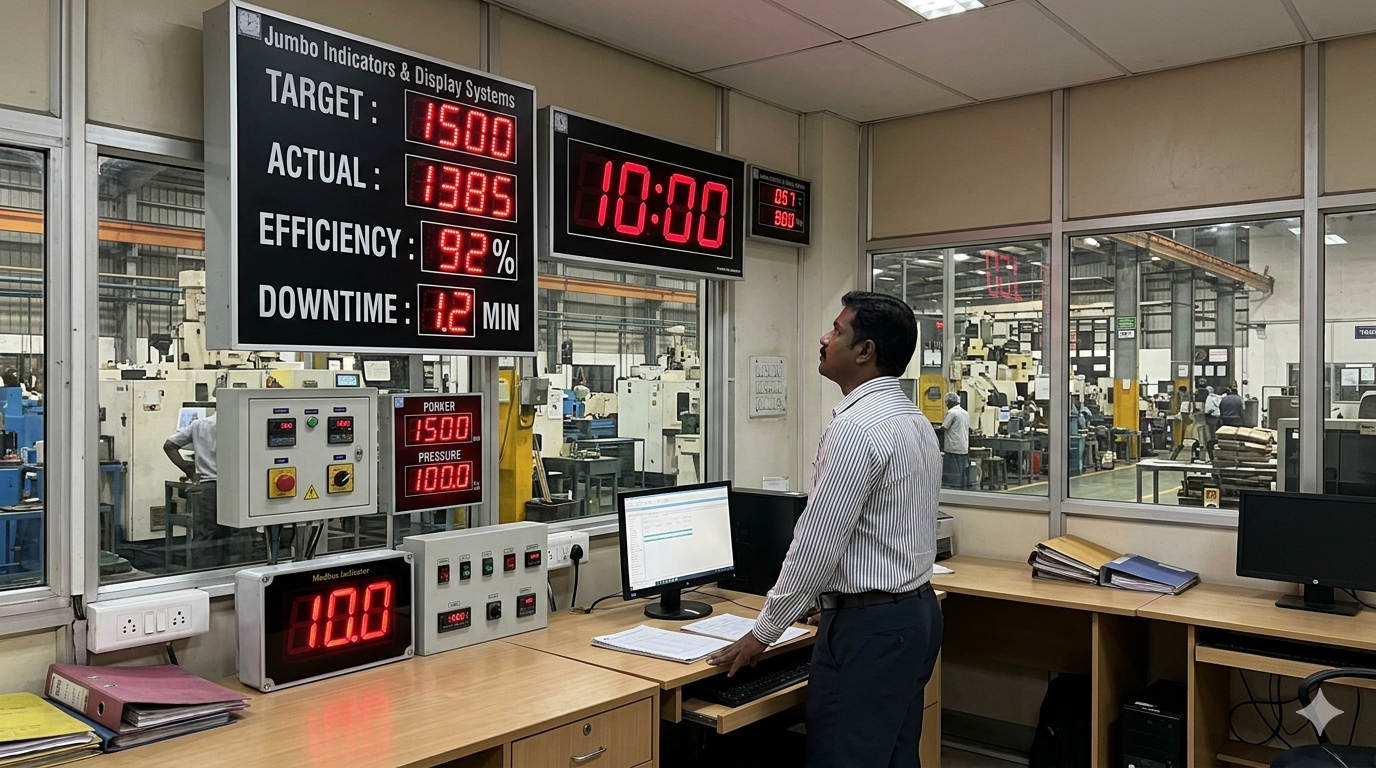

Industrial Display Systems
- Comprehensive, custom-built massive display matrices for entire plant overviews.
- Integrates with massive factory databases, ERPs, and localized PLC networks.
- Built with heavy steel enclosures to survive the most punishing factory environments.
Access Catalog
Enterprise Display & Visibility Protocol
In heavy industrial environments, data visibility equates to operational safety and efficiency. Specifying the incorrect character height, interface protocol, or ingress protection will result in a display that is either unreadable, incompatible, or destroyed by factory conditions.
Viewing Distance
The Visibility RuleThe golden rule for industrial LED displays: every 1 inch of character height yields roughly 40 feet of readable distance. A 4-inch digit is readable up to 160 feet away.
Communication Protocols
SCADA IntegrationJumbo displays must speak the factory's language. Simple units take analog 4-20mA signals. Enterprise units require RS-485 Modbus RTU or Ethernet TCP/IP to listen directly.
Ingress Protection
Environmental SurvivalAn indoor control room can utilize a standard IP40 enclosure. However, an outdoor weighbridge or dusty cement plant must feature an IP65 or NEMA 4X rating.
Luminance
LED IntensityExterior jumbo indicators require ultra-high brightness LEDs and tinted anti-glare visors to ensure the data remains punchy and visible even under direct noon sunlight.
Application & Configuration Matrix
| Industrial Application | Recommended Display Specs | Primary Operational Benefit |
|---|---|---|
| Outdoor Truck Weighbridge | 6"+ LED, RS-485 Input, IP65 Rated | Allows drivers to verify load weight instantly from the cab without exiting the vehicle. |
| Overhead Crane Load Monitoring | 8"+ LED, Wireless Telemetry Input | Crane operator safely views suspended weight without dangling data cables. |
| Assembly Line "Andon" Board | Alphanumeric, Multi-Color Zones | Flashes RED with specific error text (e.g., "LINE 4 JAM") for immediate technician dispatch. |
| Boiler / Furnace Room Temp | 4" LED, Direct Thermocouple Input | Provides life-saving thermal status visibility from a safe distance outside the blast zone. |
| Central Plant SCADA Hall | Multi-Parameter LCD / Matrix | Centralizes flow, pressure, and RPM data into one clean, highly legible dashboard. |
