Color Measurement Systems
Engineered for Precision Evaluation & Control of color, gloss, haze, and fluorescence characteristics.
Trusted By
Quality Control Professionals R&D Engineers Production Teams
Deployed Across
Textiles Paint & Coatings Plastics Pharma Food & Automotive
Single Tap to Scroll • Double Tap to Open Catalog
Core Color Measurement Instruments
Spectrophotometers, colorimeters, portable, benchtop, and inline systems for accurate color QC and R&D workflows.

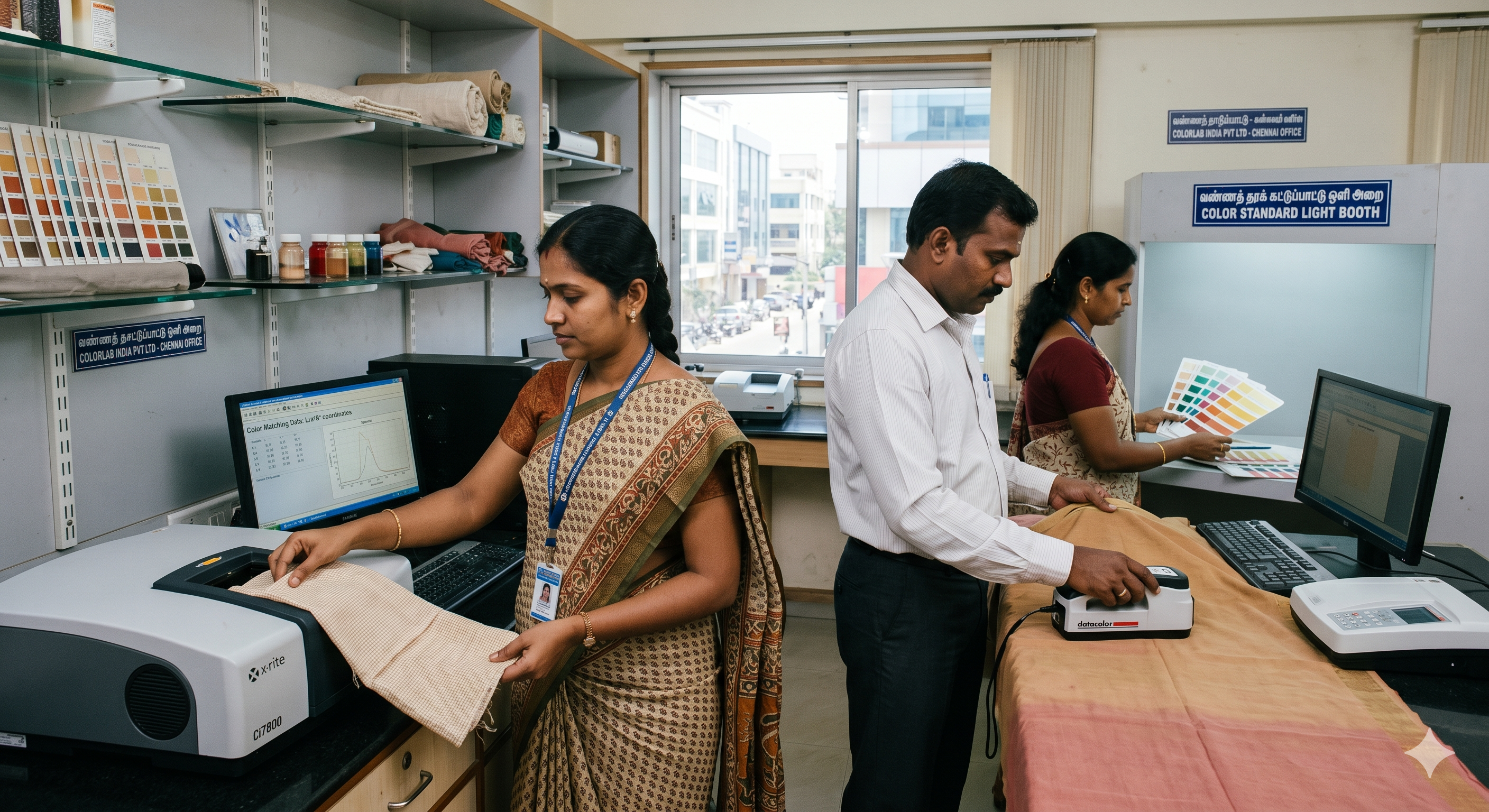

Spectrophotometers
- Full-spectrum color curve analysis.
- Highest accuracy for R&D laboratories.
- Measures SCI and SCE simultaneously.
Access Catalog

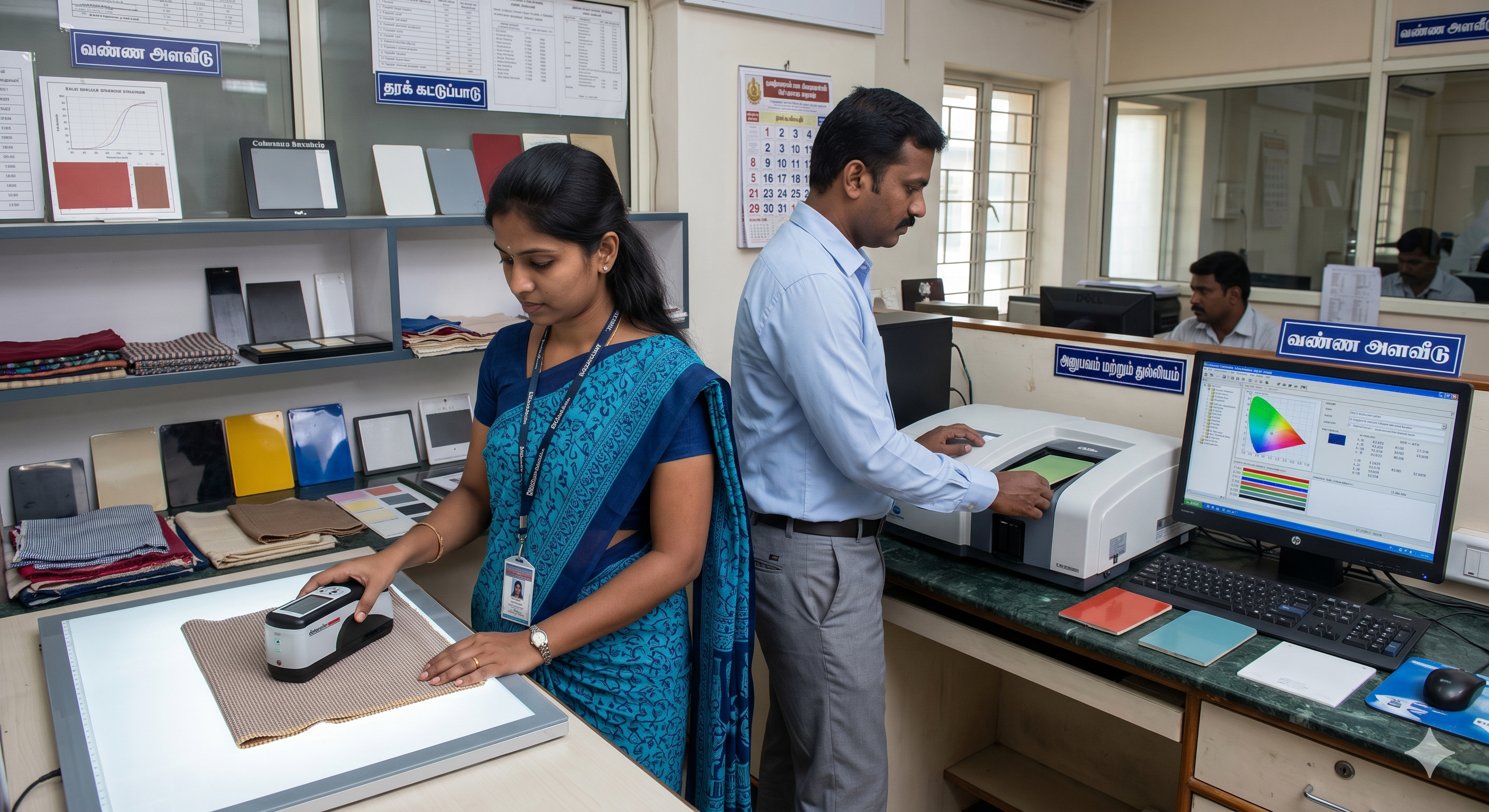

Colorimeters
- Tristimulus (XYZ) color evaluation.
- Ideal for routine production QC.
- Fast, automated pass/fail testing.
Access Catalog

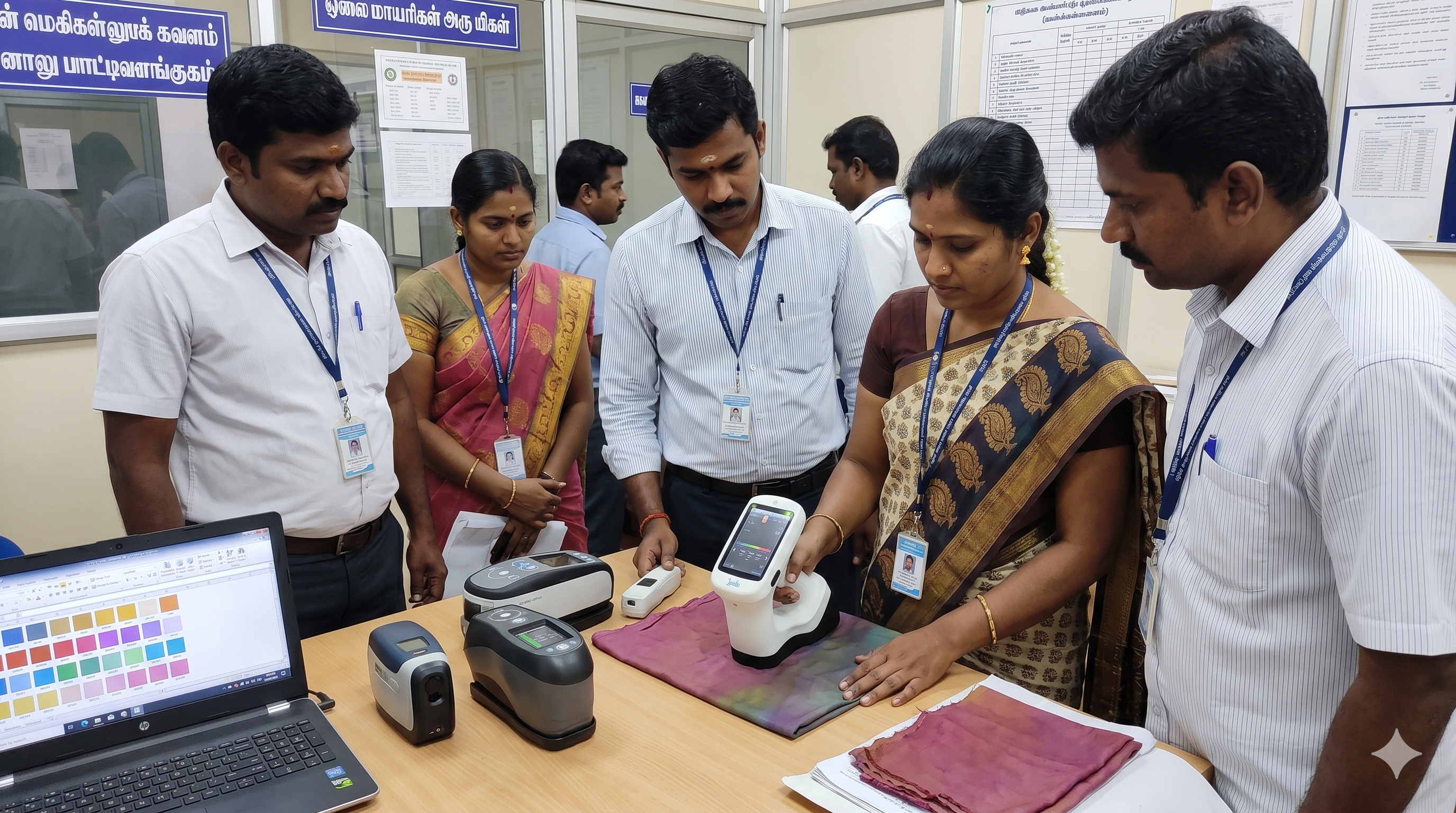

Portable Instruments
- Handheld spot-checking on the factory floor.
- Battery-operated with high-res displays.
- Ergonomic design for curved surfaces.
Access Catalog

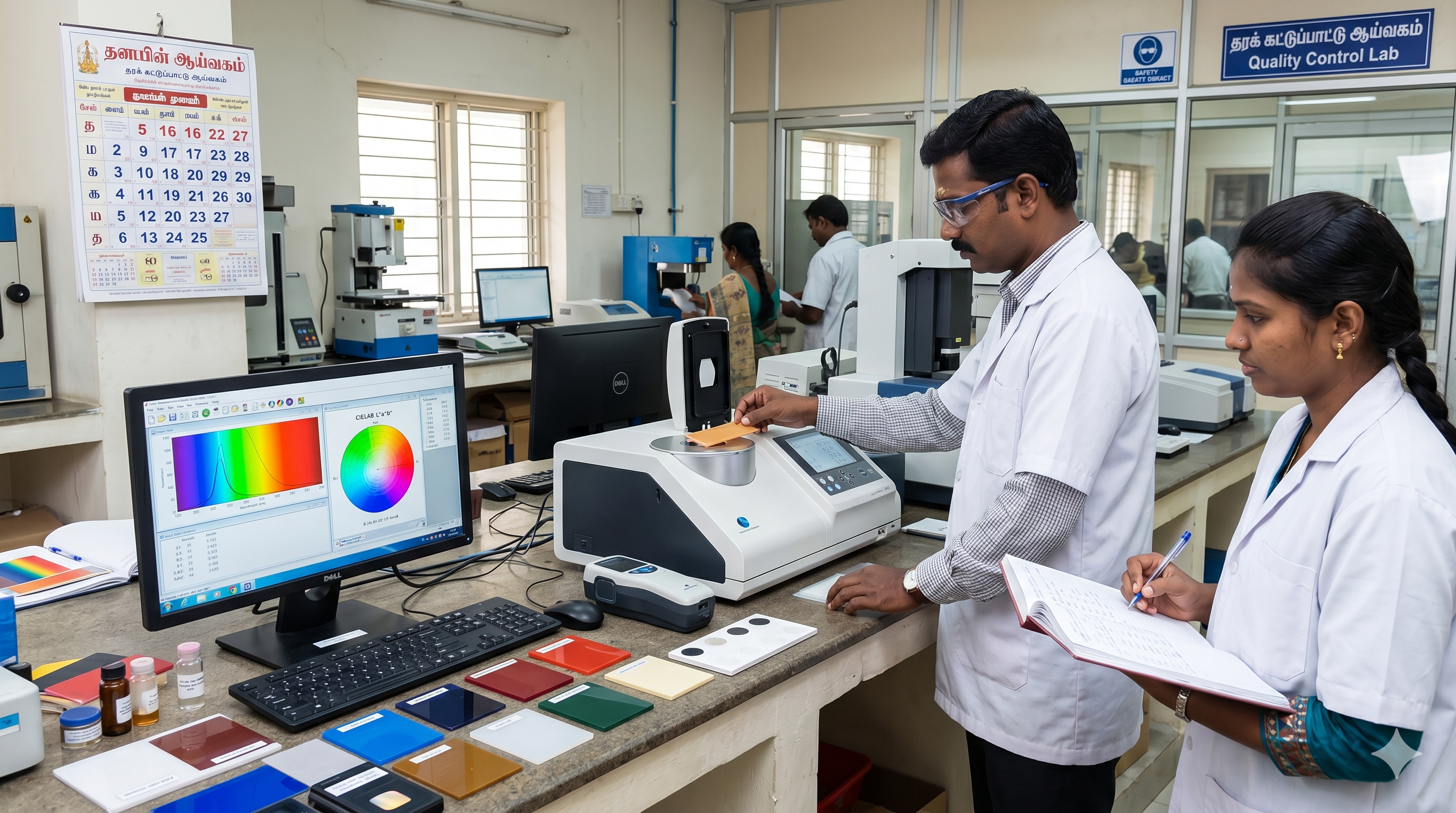

Benchtop Systems
- Reference-grade inter-instrument agreement.
- Large sample presentation areas.
- Supports both transmission and reflectance.
Access Catalog

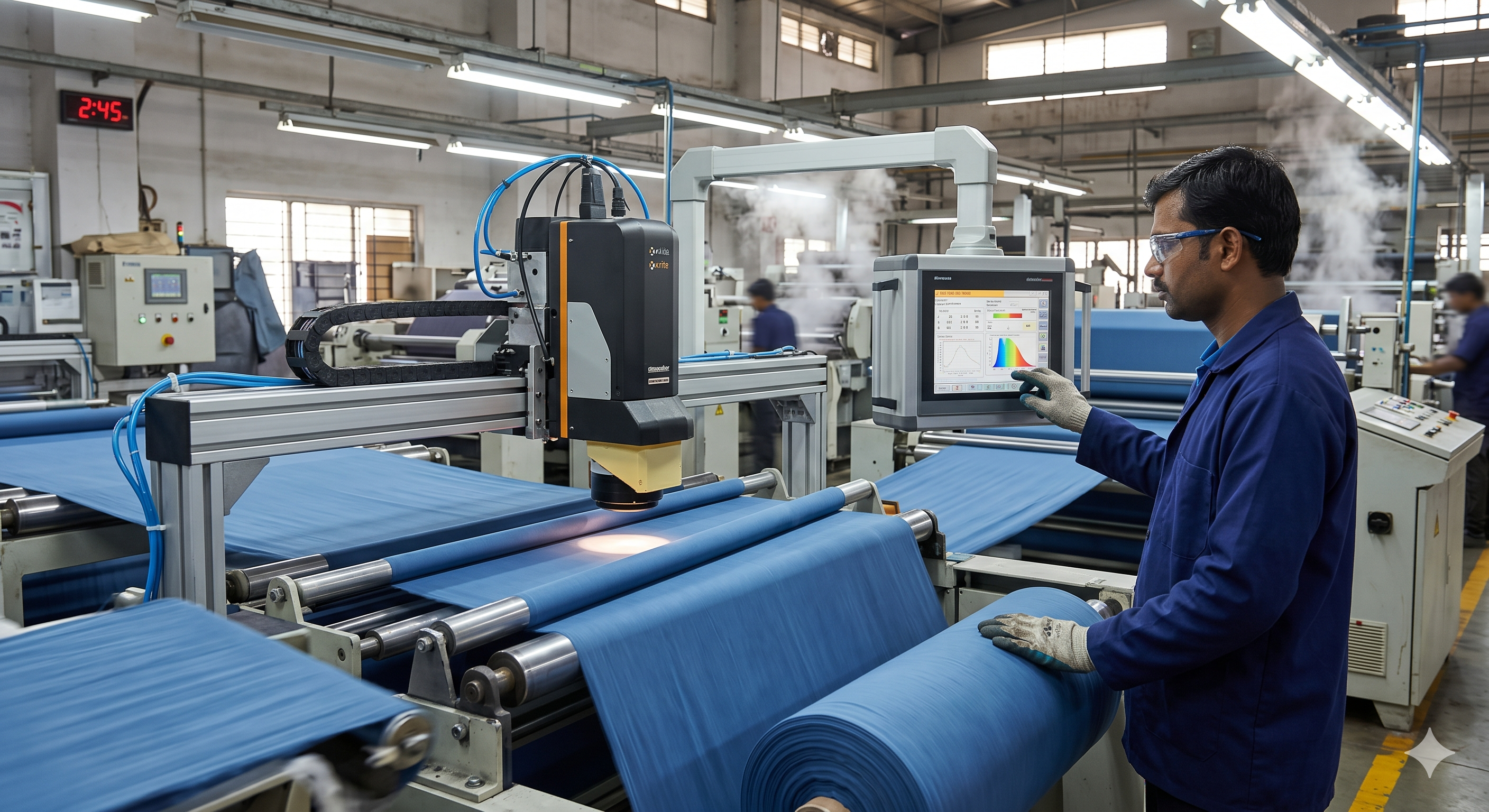

Inline / Online Systems
- Continuous color monitoring on conveyor belts.
- Automated web inspection protocols.
- Real-time alerts for color drift.
Access Catalog
Surface Appearance & Optical Property Testing
Gloss, haze, whiteness, opacity, fluorescence, and spectral analysis tools for visual appearance control.

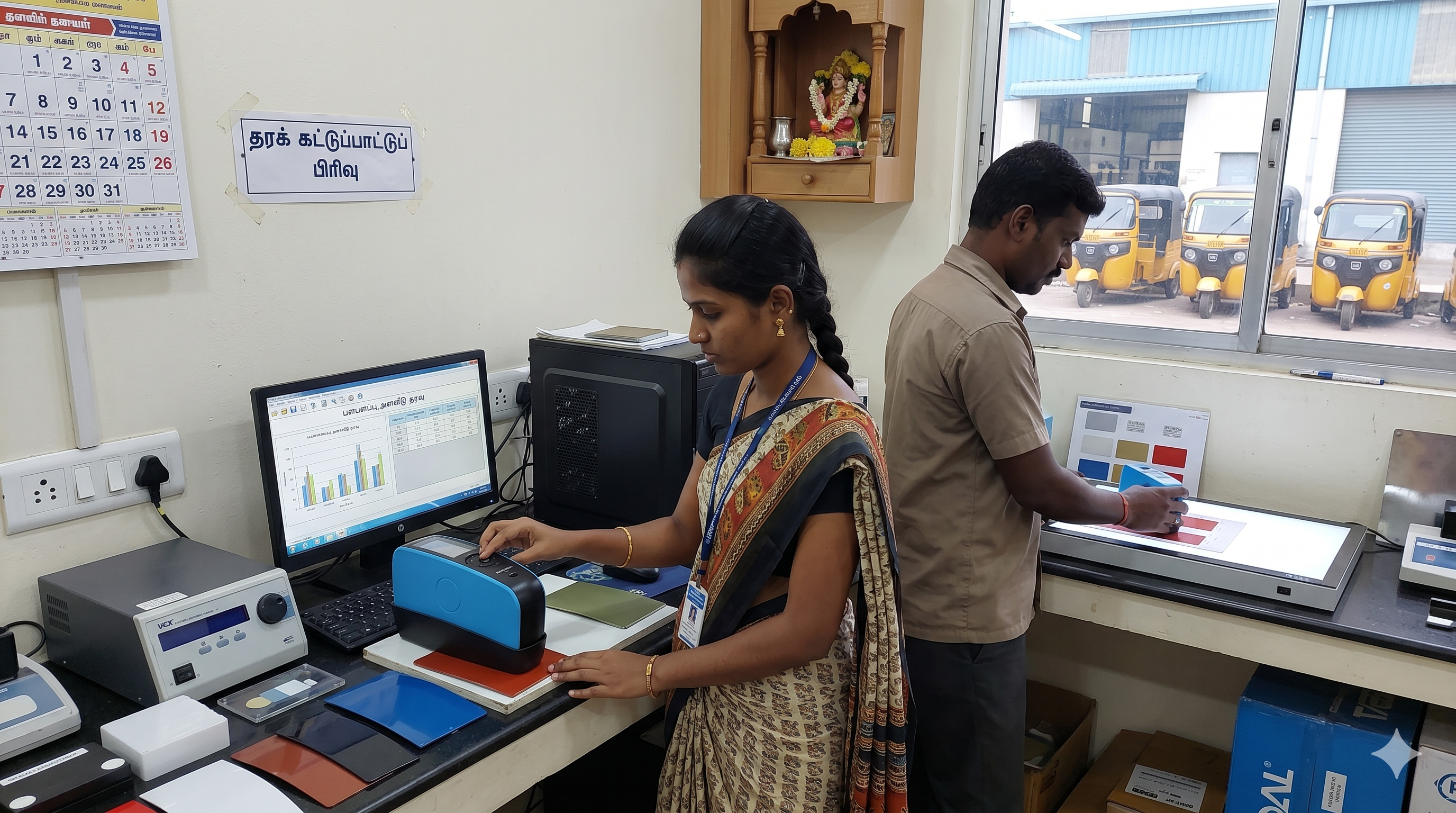

Gloss Meters
- Multi-angle (20°/60°/85°) measurements.
- Evaluates surface finish and reflectance.
- Compliant with international gloss standards.
Access Catalog

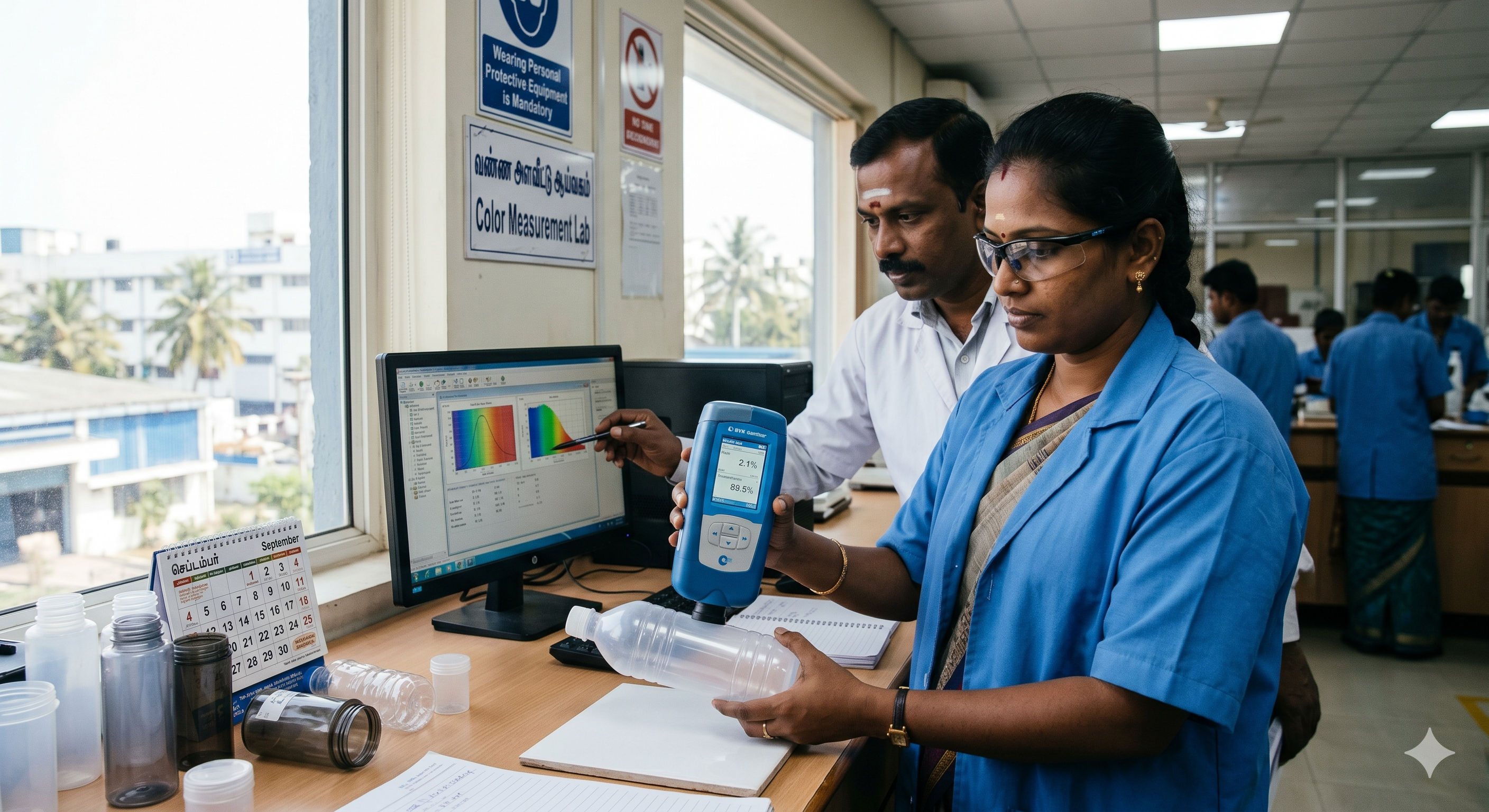

Haze Meters
- Analyzes transmission haze and clarity.
- Critical for films and transparent plastics.
- ASTM D1003 compliant technology.
Access Catalog

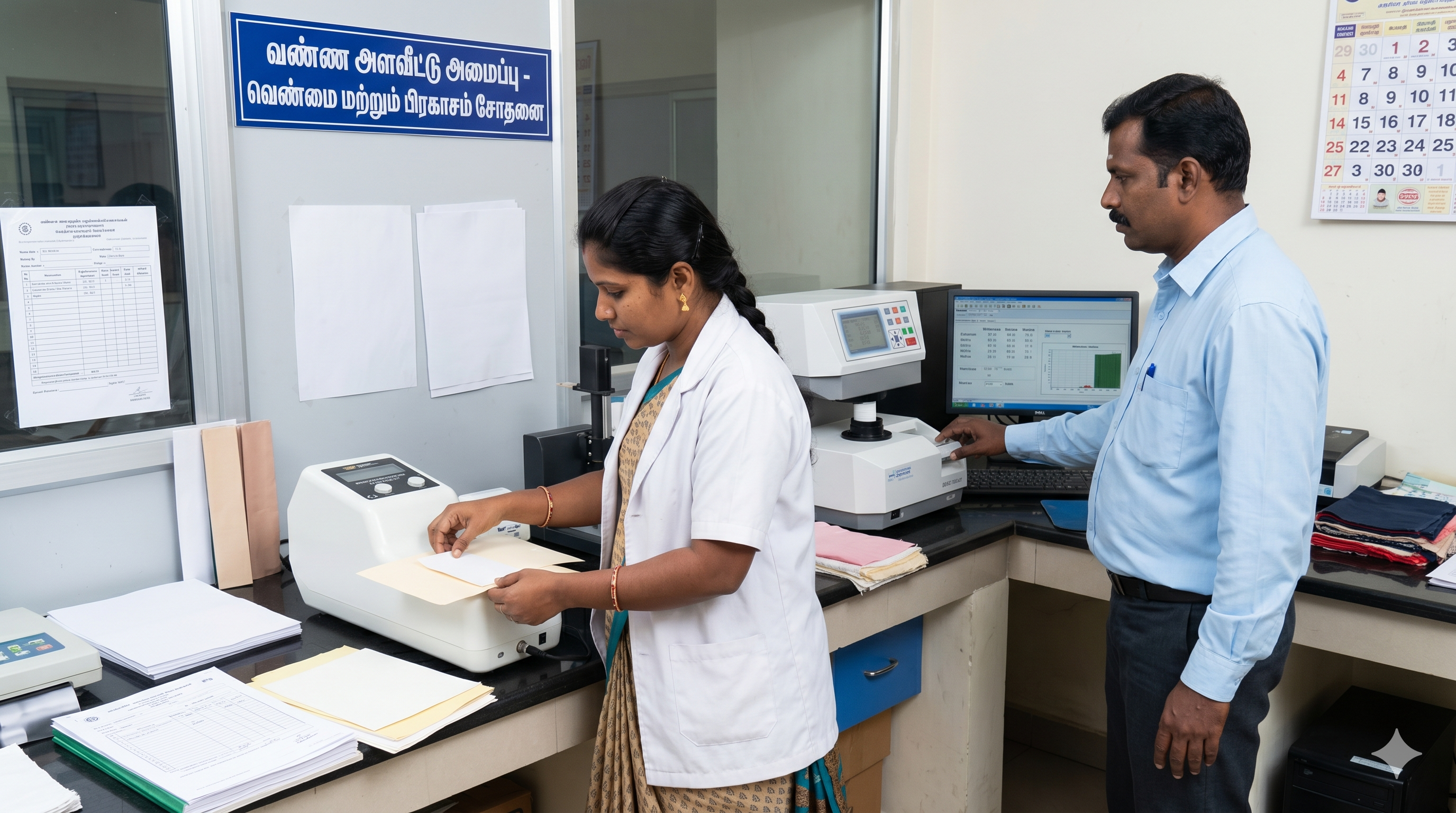

Whiteness & Brightness
- Calculates CIE, ISO, and Berger whiteness.
- Measures yellowness indices in polymers.
- Essential for paper and textile grading.
Access Catalog

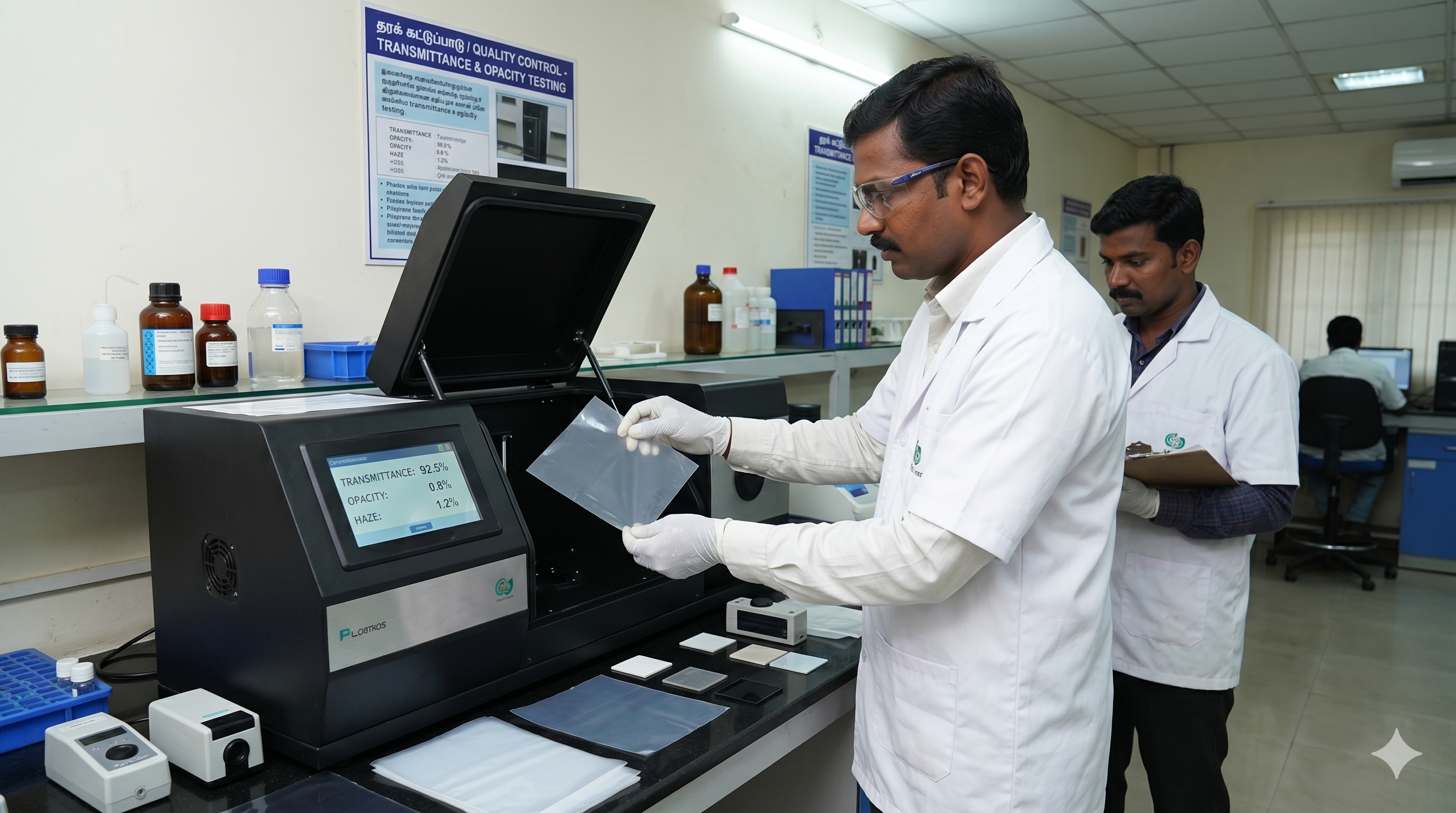

Transmittance & Opacity
- Evaluates liquid color and transparency.
- Analyzes opacity of films and coatings.
- Ensures consistent hiding power.
Access Catalog

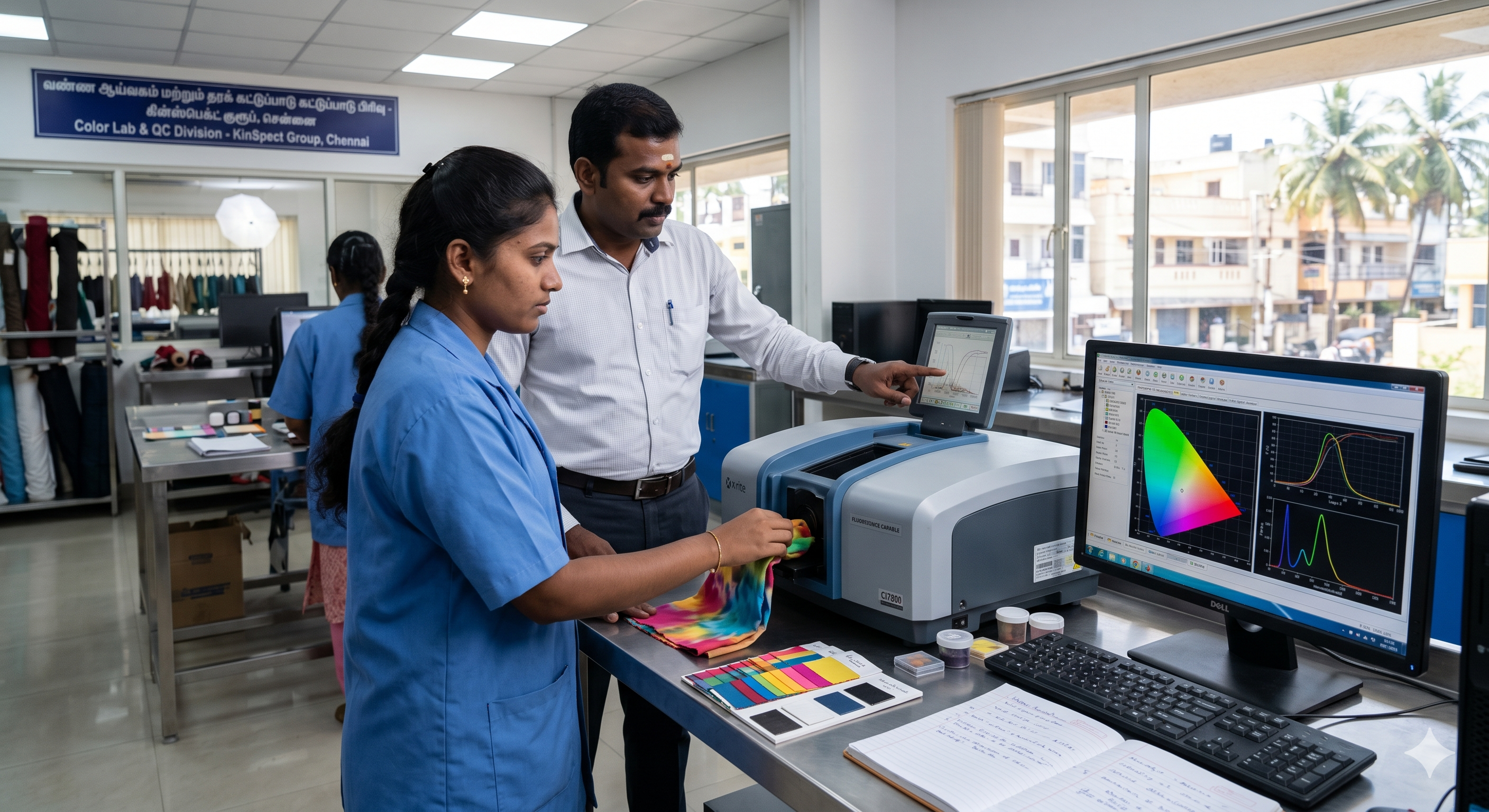

Fluorescence Instruments
- Optical Brightening Agent (OBA) control.
- UV-calibrated light sources.
- Analyzes brighteners in paper and textiles.
Access Catalog

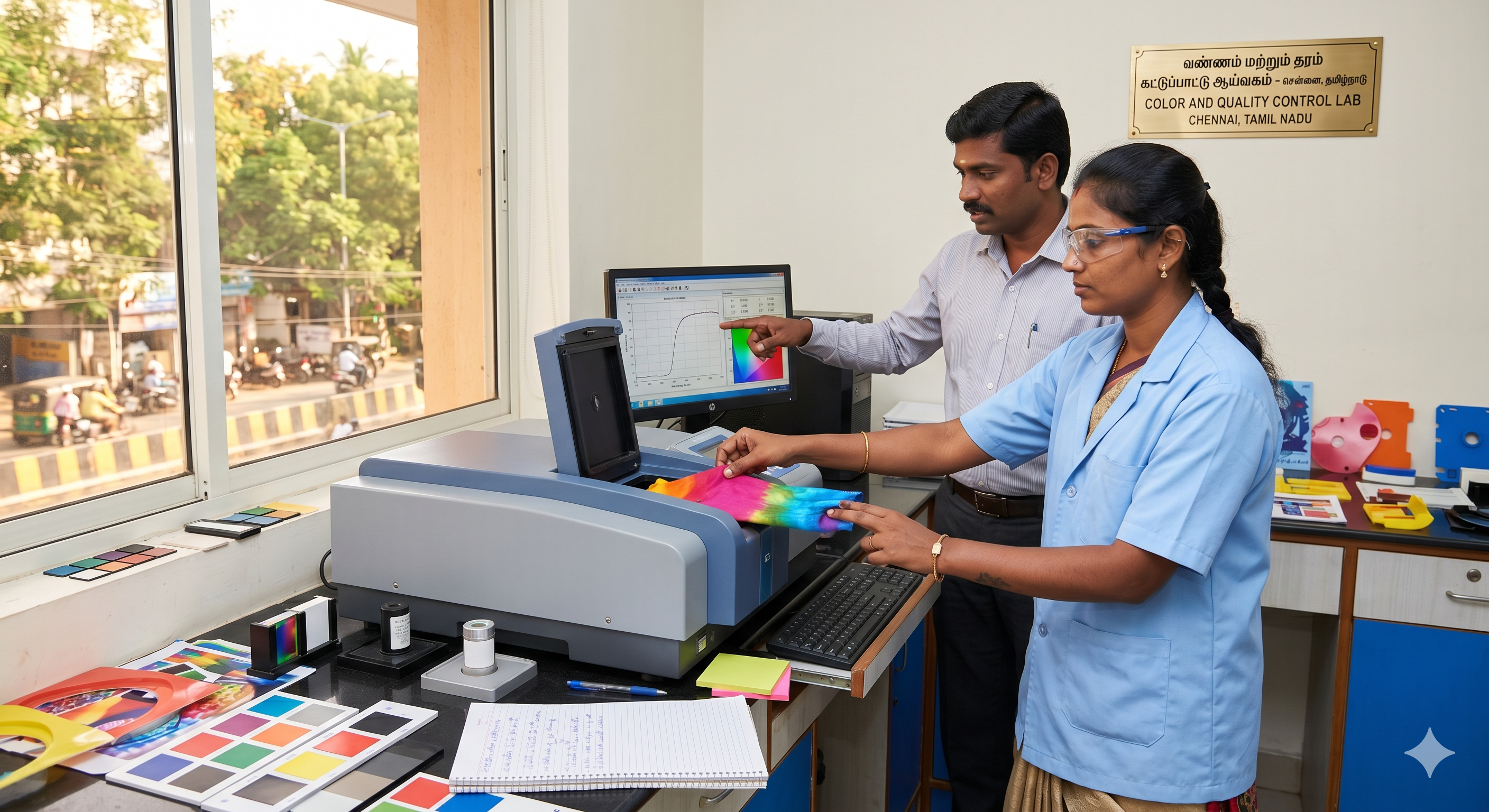

Spectral Analysis Systems
- Detailed wavelength profiling data.
- Custom color index creation capabilities.
- In-depth light source metamerism tracking.
Access Catalog
Industry-Specific Color Quality Applications
Dedicated solutions for textiles, paints, plastics, paper, food, pharma, cosmetics, and digital imaging color control.

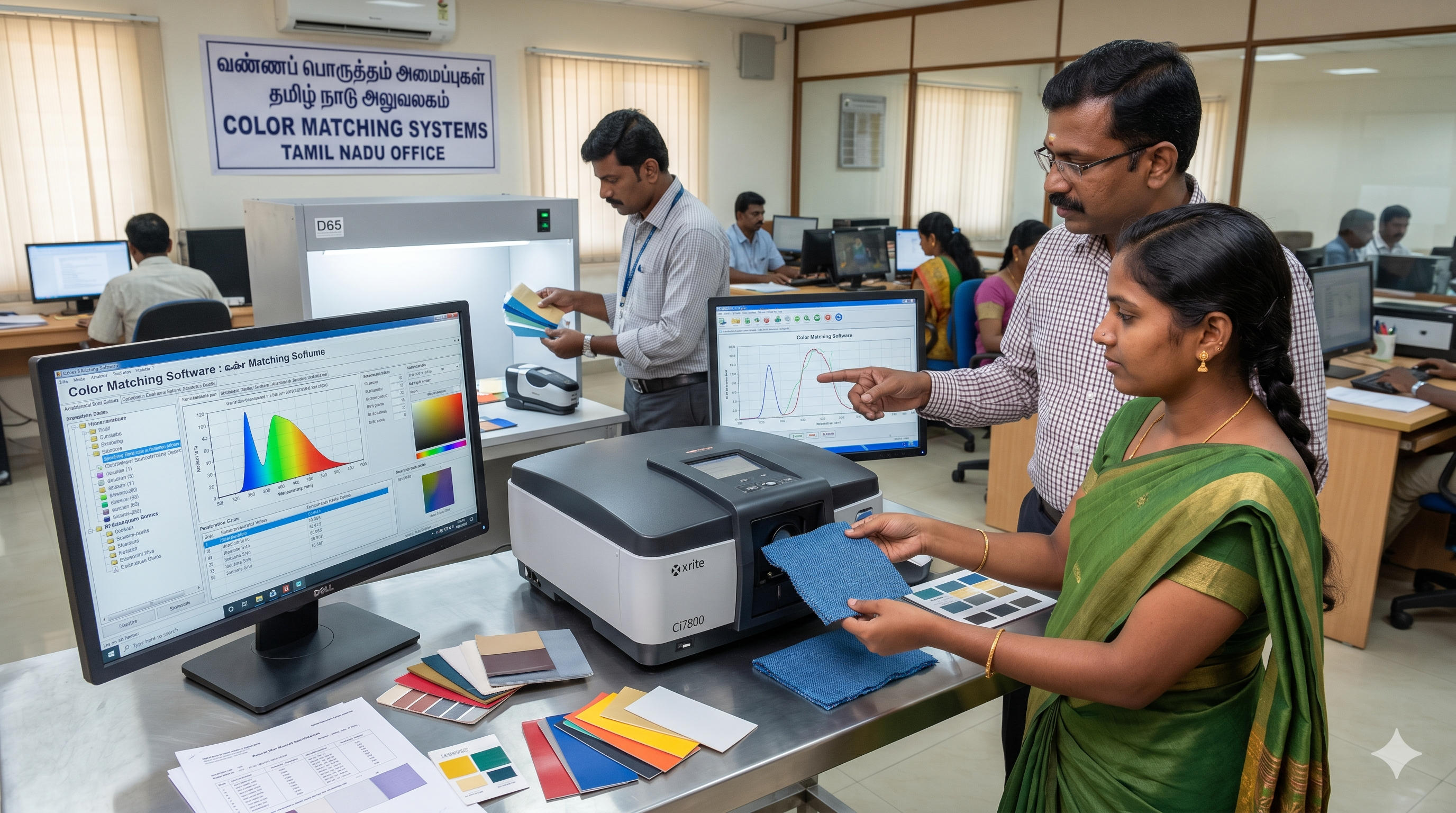

Color Matching Software
- Recipe formulation and optimization software.
- Batch correction and re-work algorithms.
- Creates comprehensive digital color libraries.
Access Catalog

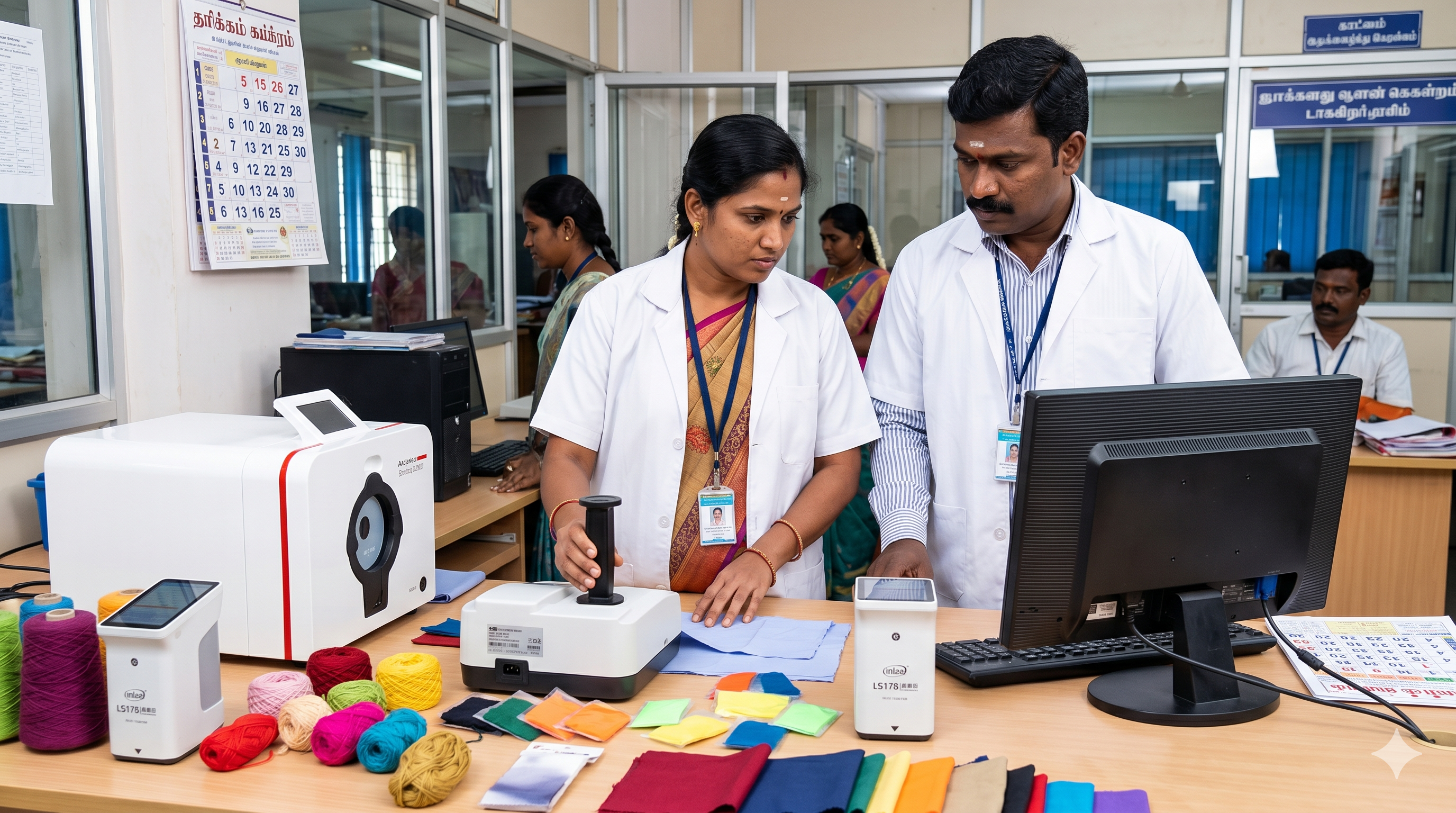

Textile Color Testing
- Ensures dye formulation consistency.
- Verifies fabric fastness and bleeding limits.
- Vital for metamerism checks in fashion.
Access Catalog

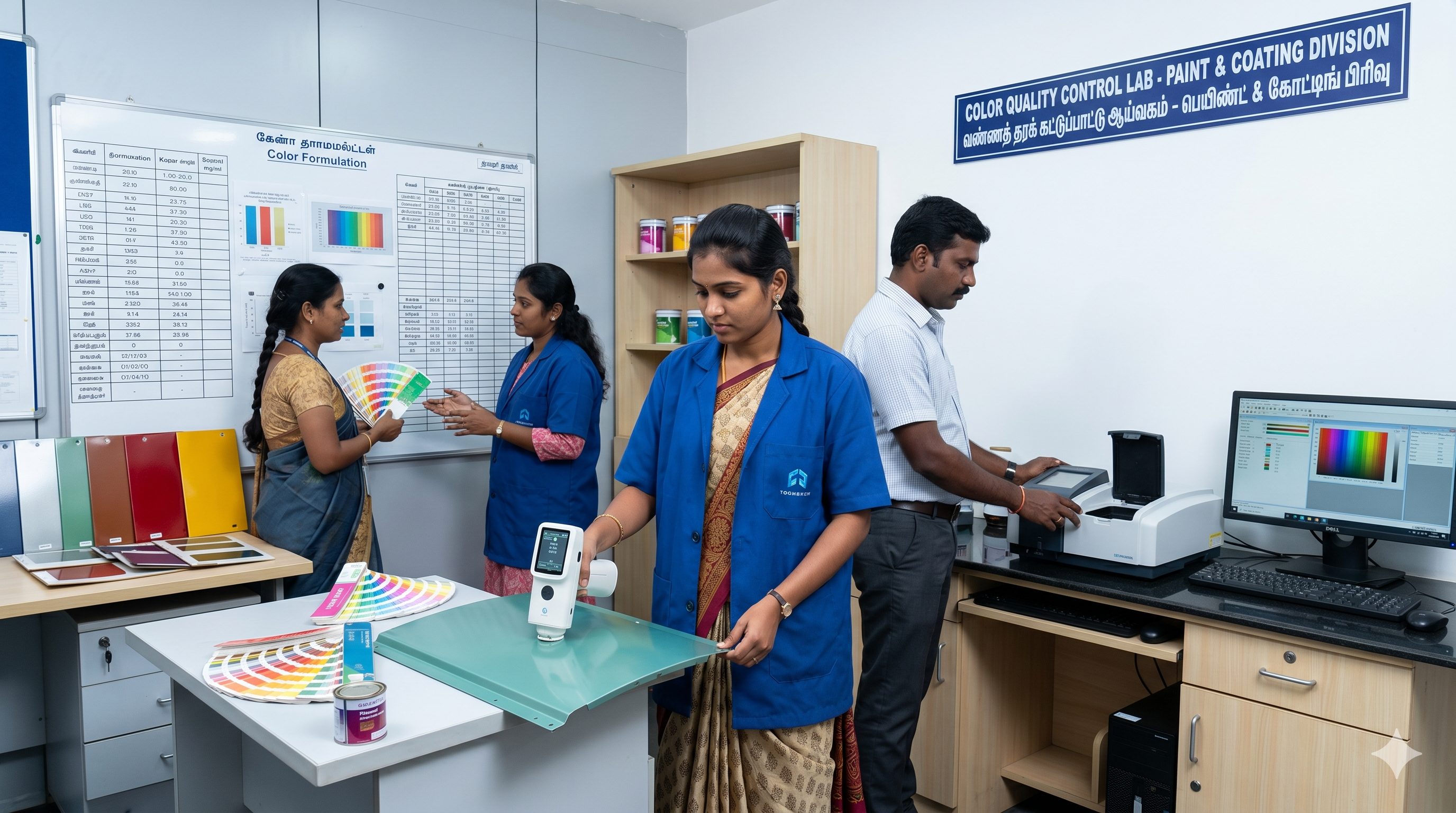

Paint & Coating Color
- Evaluates pigment strength and hiding power.
- Monitors weather degradation and fading.
- Used for automotive finishes and house paints.
Access Catalog

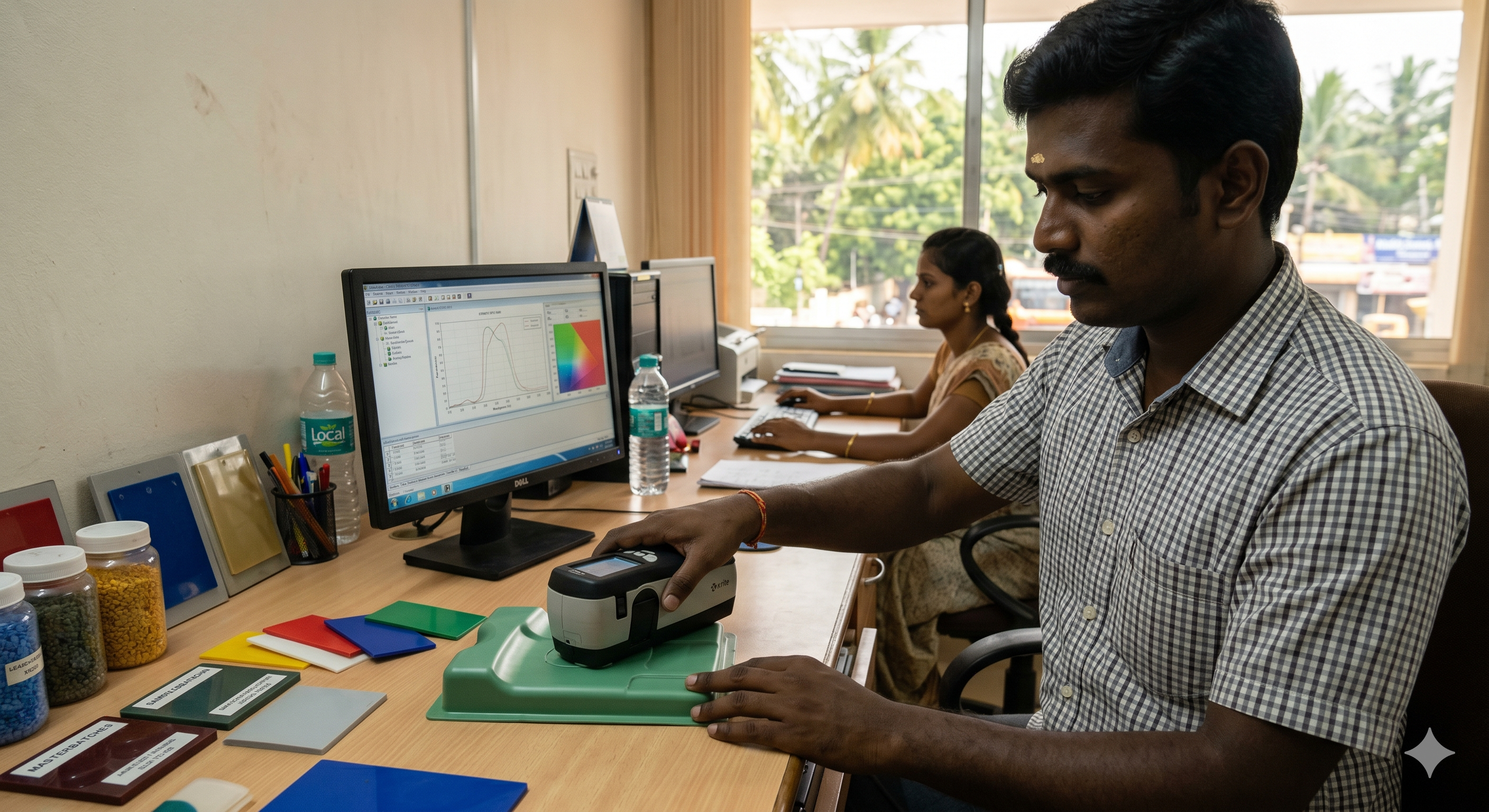

Plastic & Polymer Color
- Measures color on raw pellets and plaques.
- Ensures resin and extrusion consistency.
- Detects yellowing in recycled materials.
Access Catalog

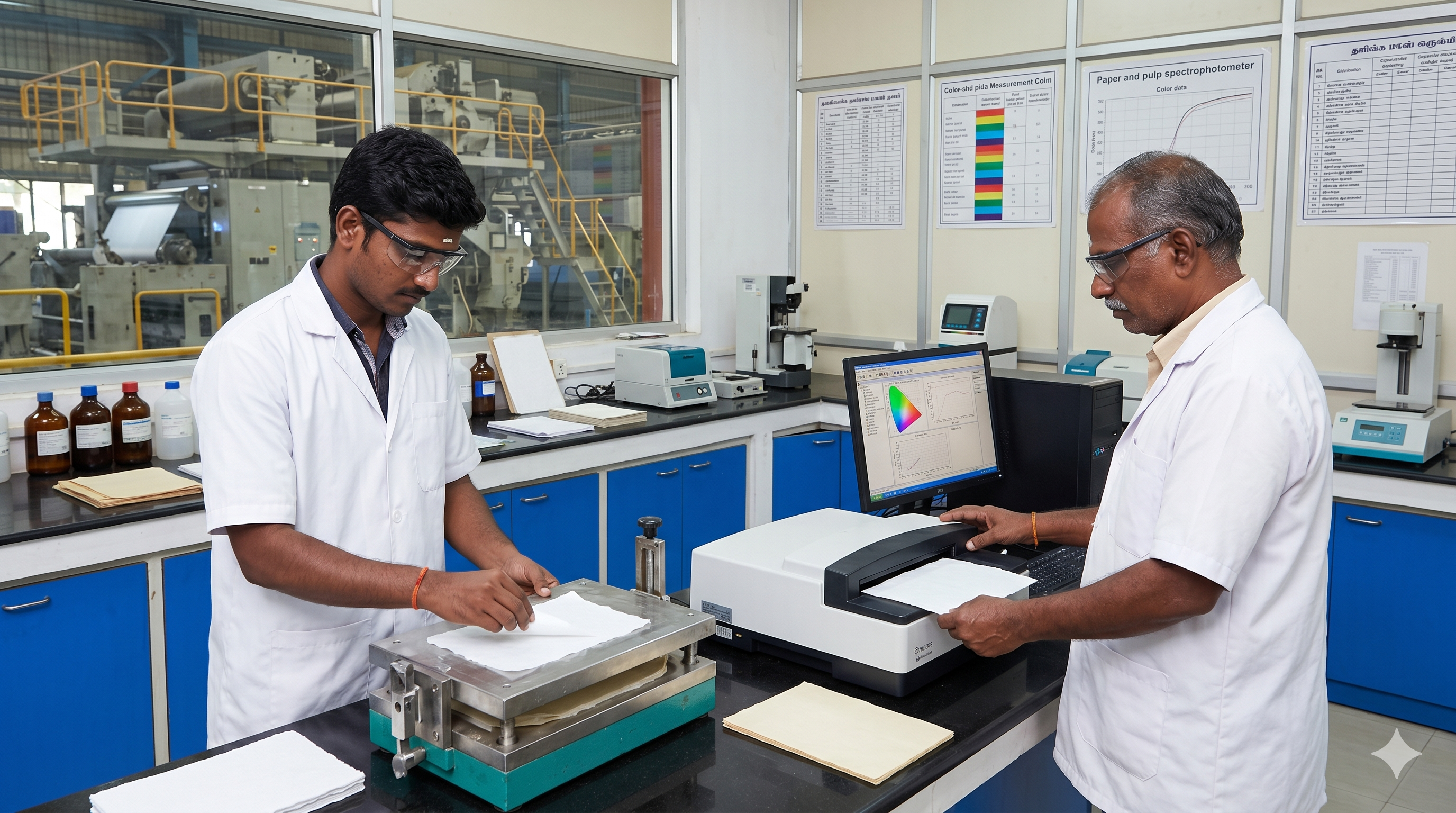

Paper & Pulp Color
- Validates chemical bleach efficacy.
- Ensures uniform ink receptivity for printing.
- Maintains ISO whiteness standards.
Access Catalog

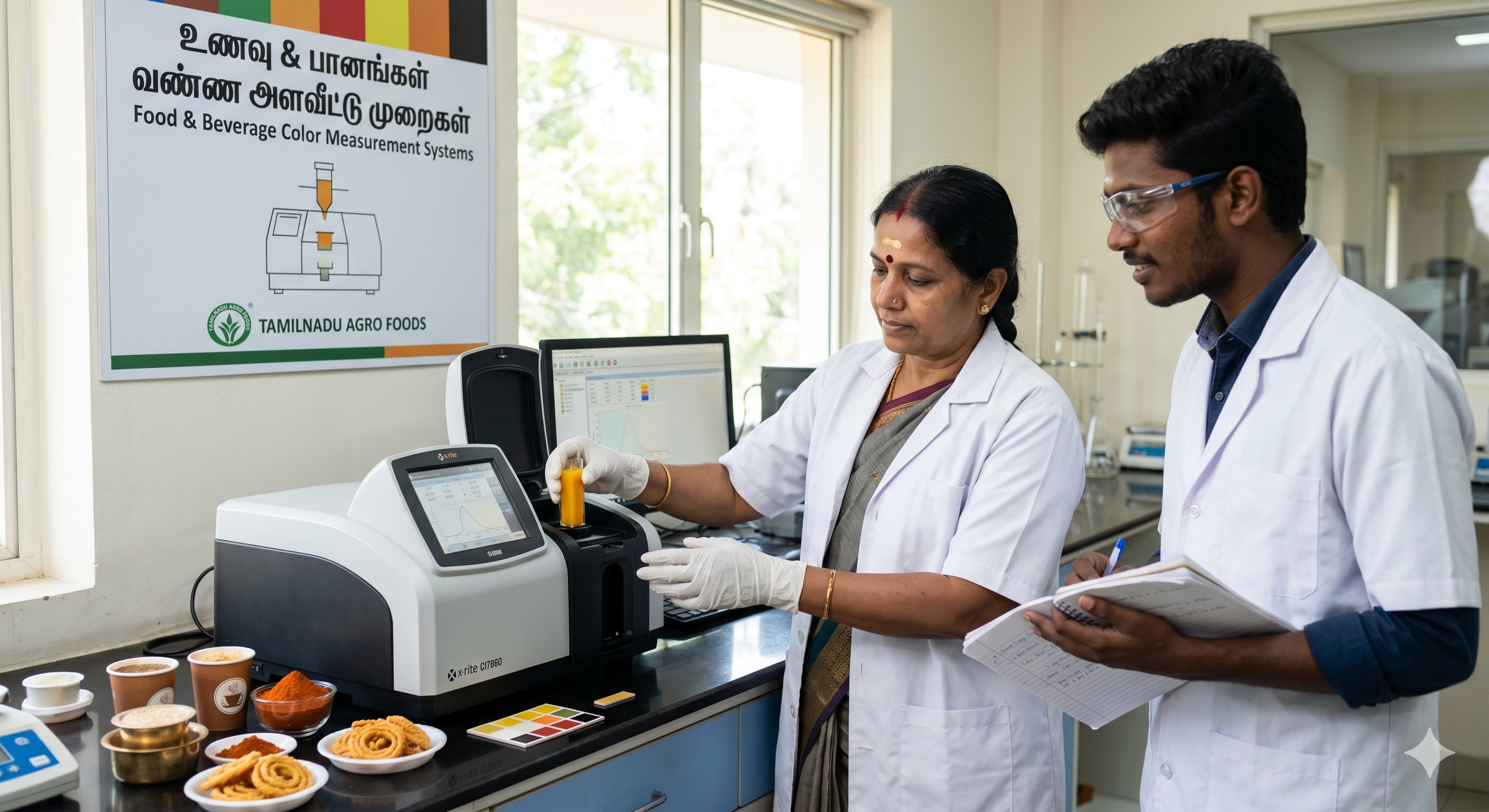

Food & Beverage Color
- Standardizes tomato and citrus color indices.
- Controls baking browning and roasting levels.
- Analyzes liquid beverage tint and clarity.
Access Catalog

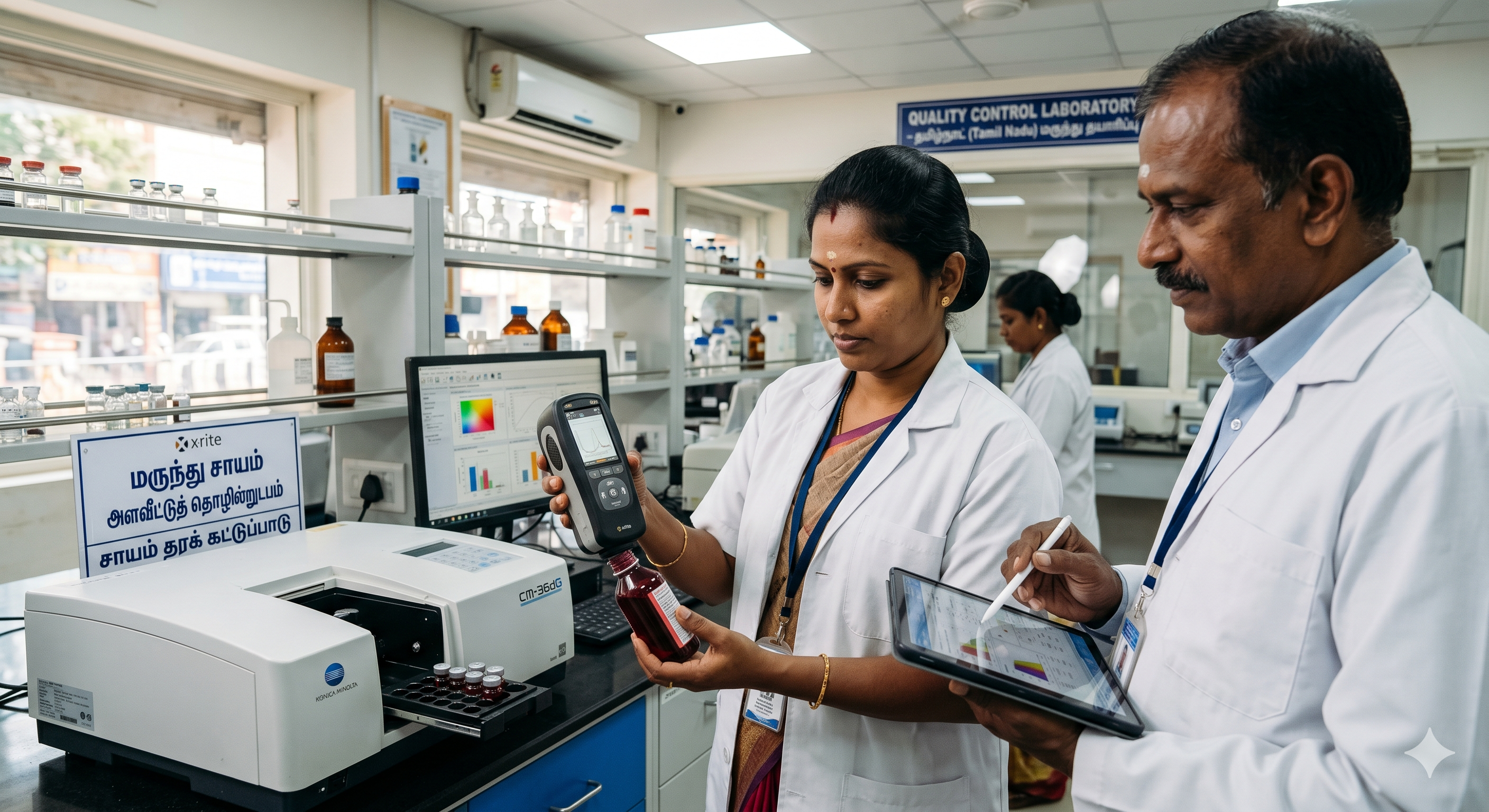

Pharmaceutical Color
- Ensures powder whiteness and purity indicators.
- Provides precise pill and tablet color matching.
- Detects degradation in liquid medicines.
Access Catalog

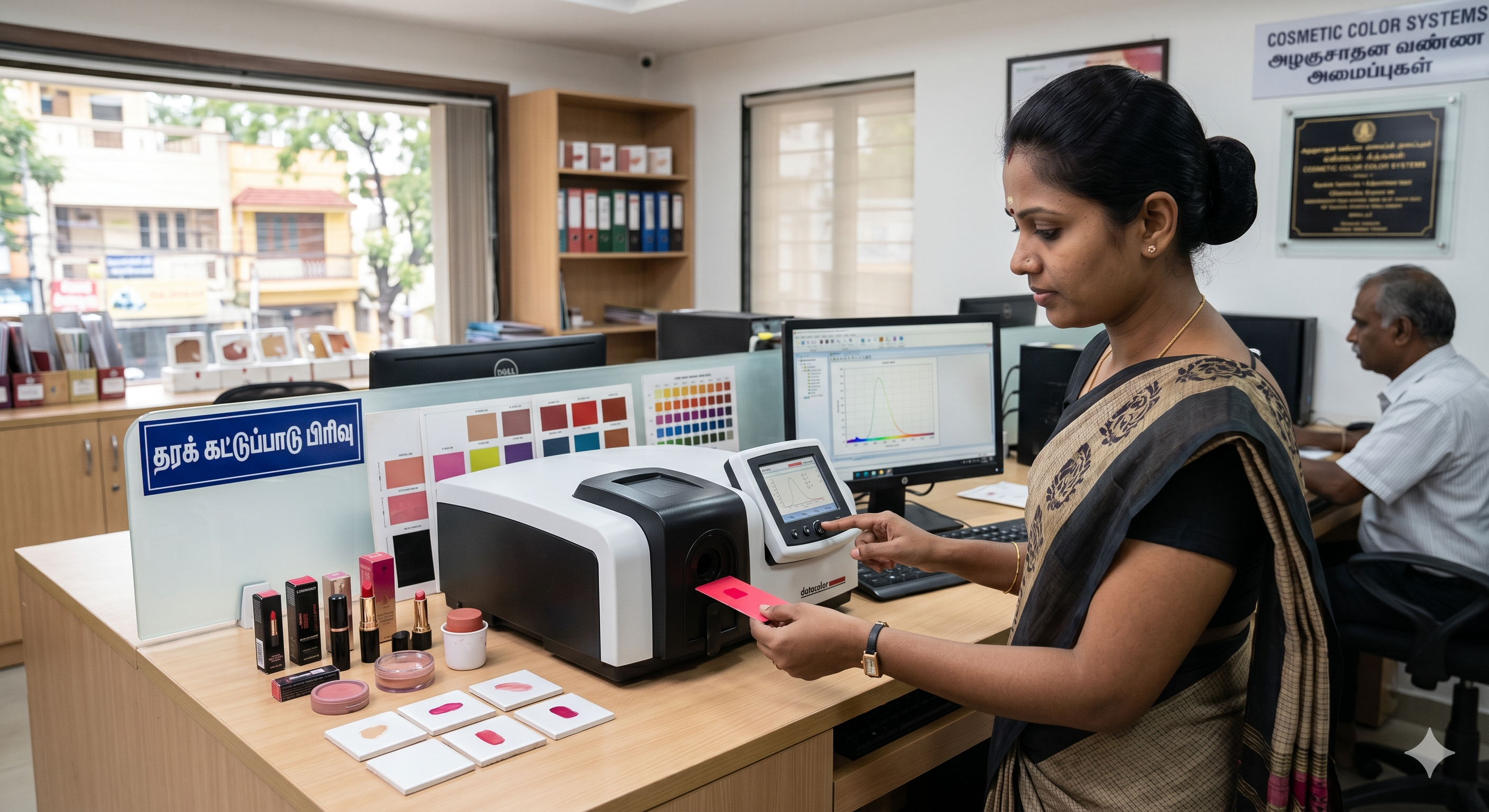

Cosmetic Color Systems
- Perfects skin tone matching for foundations.
- Controls pigmentation in lipsticks and powders.
- Ensures strict aesthetic brand standards.
Access Catalog

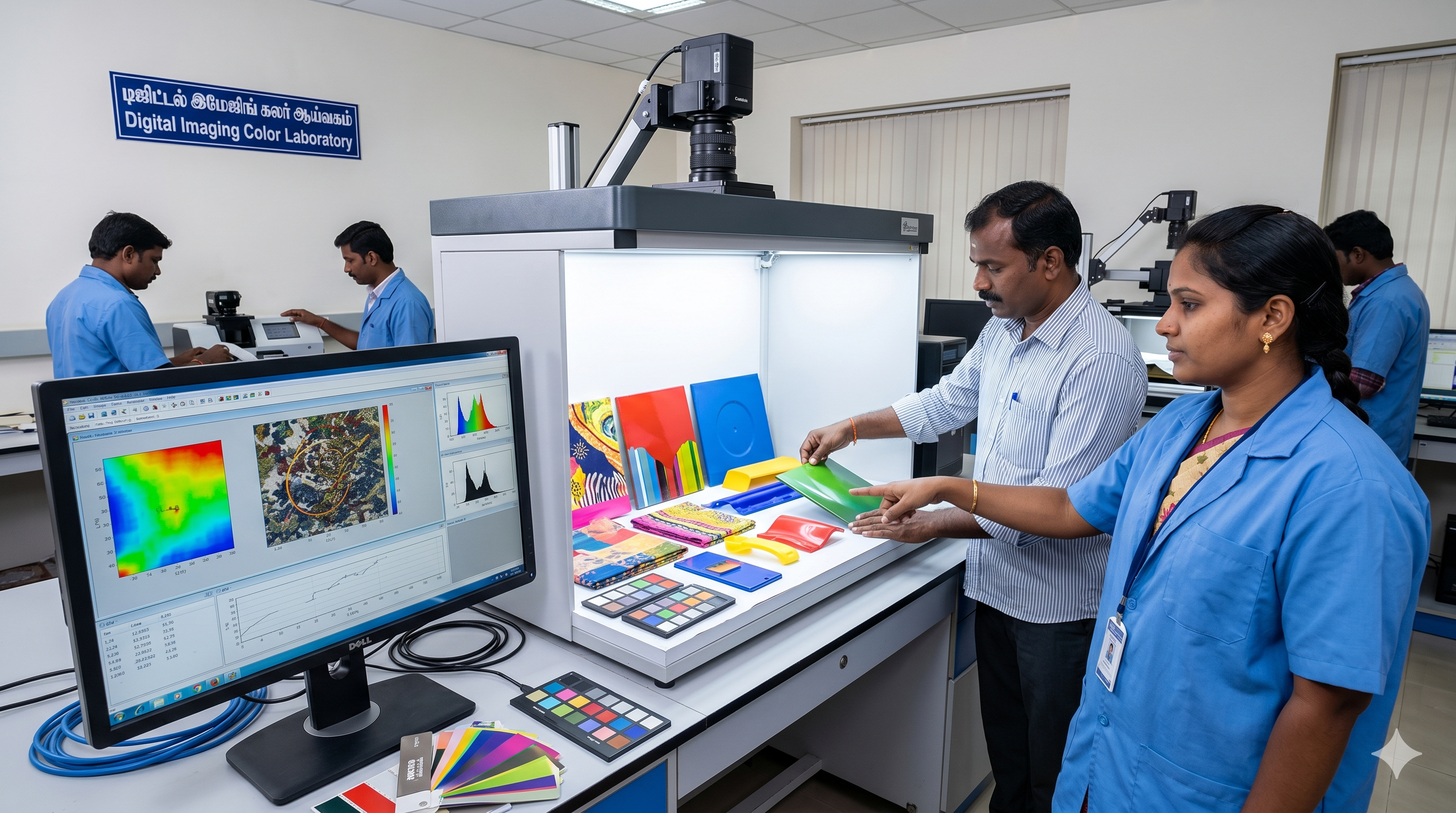

Digital Imaging Color
- Non-contact spatial color measurement.
- Analyzes complex patterns and multi-color surfaces.
- Replaces visual subjective assessment on assemblies.
Access Catalog
No color systems found
Try adjusting your search terms.
Enterprise Colorimetry Protocol
Color consistency is not just visual — it is data-driven precision that defines brand identity across global supply chains.
Our advanced spectrophotometers integrate dual-beam integrating sphere optics + high-resolution spectral sensors to capture true reflectance signatures, eliminating human subjectivity and ensuring inter-lab agreement worldwide.
Built for multi-location manufacturing + supplier standardization
Spectral Measurement Engine
- Full visible spectrum capture: 400–700 nm
- Ultra-fine bandwidth: ≤ 2 nm
- Measurement intervals: 10 nm / 5 nm selectable
CIE Lab* Color Space
Defines color numerically using 3 axes:
- L* → Lightness (0 = black, 100 = white)
- a* → Green (−) to Red (+)
- b* → Blue (−) to Yellow (+)
Color Difference (ΔE)
Quantifies visual deviation between master & sample.
- Supported Models: ΔE*ab, ΔE00, CMC tolerancing
- Programmable Pass/Fail limits
Metamerism Detection
Checks if colors match under different lighting.
- Multi-illuminant evaluation: D65 / TL84 / A
- Metamerism Index (MI) calculation
Advanced Optical Modes
- SCI (Specular Included) → total color
- SCE (Specular Excluded) → true visual color
- UV Included / Cut → for OBA materials
Intelligent Calibration
- Auto calibration with certified white tile
- Black trap zeroing
- Thermal drift compensation
⚖️ Color Measurement vs Visual Inspection
| Parameter | Visual Method | Spectrophotometer |
|---|---|---|
| Accuracy | Subjective | Objective |
| Repeatability | Low | Very High |
| Lighting Dependency | High | Controlled |
| Data Output | None | Numeric (Lab*, ΔE) |
| Global Matching | Impossible | Perfect |
Conclusion: Visual QC is outdated for industrial applications.
Optical Geometry & Architecture
Precise color measurement relies on the correct optical geometry. Selecting the wrong sensor architecture for your specific material surface will yield drastically different and incompatible color data.
d/8° Integrating Sphere
- Mechanism: Diffuse illumination with 8° viewing.
- Application: Textured surfaces, textiles.
- Advantage: Measures SCI to capture true color regardless of gloss.
45°/0° Directional
- Mechanism: Illumination at 45°, measured at 0°.
- Application: Printed packaging, road signs.
- Advantage: Matches human visual perception by excluding glare.
Standard Illuminants
- Illuminants: D65 (Daylight), A (Incandescent), F2/F11 (Fluorescent).
- Observers: 2° or 10° standard.
- Rule: Data is only comparable if the Illuminant matches exactly.
Aperture Selection
- LAV (>25mm): Best for textured or patterned samples.
- MAV (~8mm): Standard for solid, uniform colors.
- SAV (<4mm): Essential for tiny parts or curved surfaces.
🏭 Industrial Applications
- Textile Dyeing & Finishing
- Automotive Paint & Coatings
- Plastic & Polymer Compounding
- Printing & Packaging
- Paper, Pulp & Cosmetics
🧪 Advanced Use Cases
- Shade matching across multiple suppliers globally
- Detecting pigment variation root cause
- Controlling batch-to-batch color drift
- Ensuring brand color compliance
📜 Compliance & Certification
- CIE / ISO / ASTM compliant
- GMP / GLP ready
- NABL traceable calibration
- CE & RoHS certified
💰 Buyer Decision Guide
Choose this system if:
- You need global color consistency
- You work with multiple vendors
- You want to reduce rejection losses
